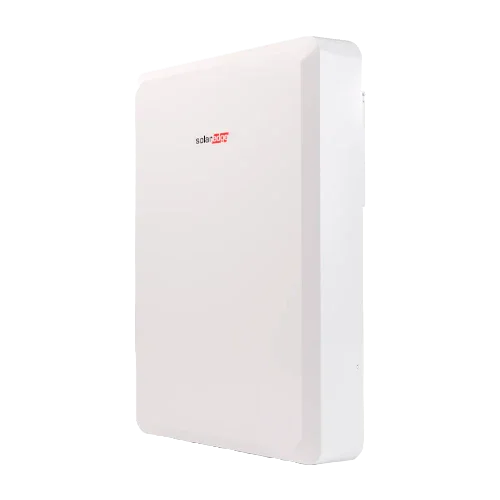

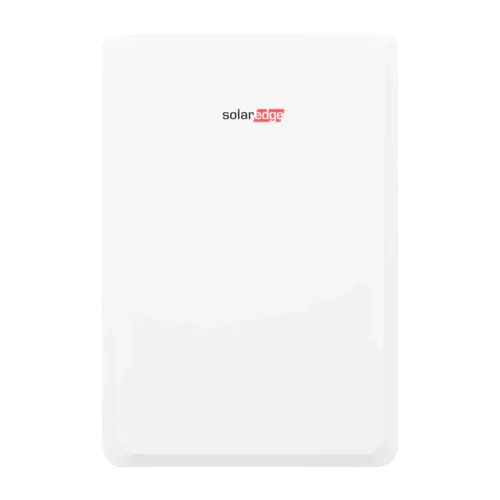

Lithium Battery 400V 9.7kWh SolarEdge BAT-10K1PS0B-12
Modelo: BAT-10K1PS0B-12- Sku: SOEDBAT001
- Vendor: SolarEdge
Specifications
Product Description
The 400V 9.7kWh Lithium Battery SolarEdge BAT-10K1PS0B-12 is the HV (LFP) storage module designed to integrate seamlessly with SolarEdge Home Wave, Home Hub, and StorEdge inverters. With 9.7 kWh of usable energy and 5 kW of continuous power, it optimizes self-consumption, provides backup, and maximizes system efficiency thanks to its DC coupling and wireless communication with the inverter.
Main Features
- Usable energy: 9,700 Wh (100% DoD).
- Continuous power: 5,000 W; backup peak: 7,500 W (10 s).
- High voltage: 350–450 V DC; max. continuous current: 14.3 A.
- Communications: SolarEdge Home Network wireless and RS485.
- Protection rating: IP55 for indoor/outdoor; noise < 25 dBA.
- Flexible installation: wall or floor; dimensions 790×1179×250 mm; 119 kg.
Advantages or Benefits
- Higher system performance: DC coupling reduces losses and improves overall efficiency.
- Full integration in the SolarEdge ecosystem: a single manufacturer, one app, and unified support.
- Scalable: up to 3 batteries per inverter to expand capacity and discharge power.
- Reliable backup: delivers peaks of 7.5 kW to cover startups and critical loads.
- Quick installation: automatic configuration via SetApp and less wiring thanks to wireless communication.
- Enhanced safety: LFP chemistry and multiple certified protection features.
Purpose or Applications
Ideal for homes with photovoltaic self-consumption seeking to store daytime surplus for nighttime use, reduce grid dependence, and have backup power. Also suitable for small businesses requiring stability against micro-outages and optimization of energy charges.
Technical Specifications
| Usable energy | 9.7 kWh (100% DoD) |
| Continuous output power | 5 kW |
| Backup peak | 7.5 kW (10 s) |
| Voltage range | 350–450 V DC (HV) |
| Max. continuous current | 14.3 A |
| Chemistry | LiFePO₄ (LFP) |
| Cycle efficiency (peak) | 94.5 % |
| Communications | SolarEdge Home Network wireless, RS485 |
| Protection rating | IP55 (indoor/outdoor) |
| Dimensions | 790×1179×250 mm |
| Weight | 119 kg |
| Cooling / Noise | Natural convection / < 25 dBA |
| Operating temperature range | −10 to +50 °C |
| Max. altitude | 2,000 m |
| Warranty | 10 years |
| Batteries per inverter | Up to 3 units |
| Mounting | Wall or floor (optional floor stand) |
| Accessories | Floor stand IAC-RBAT-FLRSTD-01; handles IAC-RBAT-HANDLE-01; multi-battery interconnection kit IAC-RBAT-RWYCBL-01 |
Compatibilities
Direct compatibility with SolarEdge Home Wave (single-phase), SolarEdge Home Hub (single-phase), and StorEdge with HD-Wave inverters. For installations with multiple batteries on the same inverter, use the indicated interconnection cable set. Backup functions may require additional components according to local regulations.
The 400V 9.7kWh Lithium Battery SolarEdge BAT-10K1PS0B-12 provides safe, efficient, and scalable storage for your SolarEdge system, with native integration, high efficiency, and unified technical support that maximizes the value of your investment.
