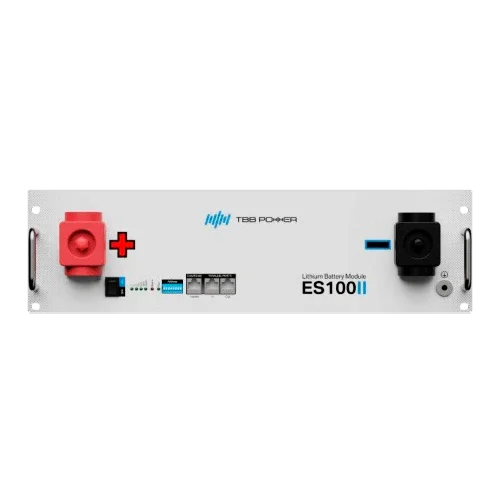

TBB Lithium Battery 5.04kWh 48V ES100 II Rack 105Ah

Modelo: ES100 II Rack 105Ah

Sku: TBBBATE001
Vendor: TBB

€1.475,69 EUR

€1.180,55 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

TBB ES100 II Lithium Battery of 5.04 kWh and 48 V (105 Ah) in 3U rack format, with LiFePO₄ cells, up to 6,000 cycles at 90% DoD, intelligent BMS, and CAN communication. Ideal for self-consumption and backup at 48 V.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The TBB ES100 II Lithium Battery 5.04 kWh 48 V Rack 105 Ah is a high-performance LiFePO₄ module designed for self-consumption systems, backup, and industrial applications at 48 V. Its 3U rack format, CAN communication, and an intelligent BMS make it a safe, scalable, and efficient solution for residential, commercial, and off-grid projects that require energy density, long service life, and easy integration.

Main Features

Nominal energy: 5.04 kWh (48 V, 105 Ah) with safe LiFePO₄ chemistry.
Operating currents: charge/discharge 52.5 A nominal and up to 105 A max. (2 s peak 120 A).
Voltage range: 42–54.75 V, ideal for 48 V battery banks.
Extended cycle life: 6,000 cycles at 90% DoD under recommended conditions.

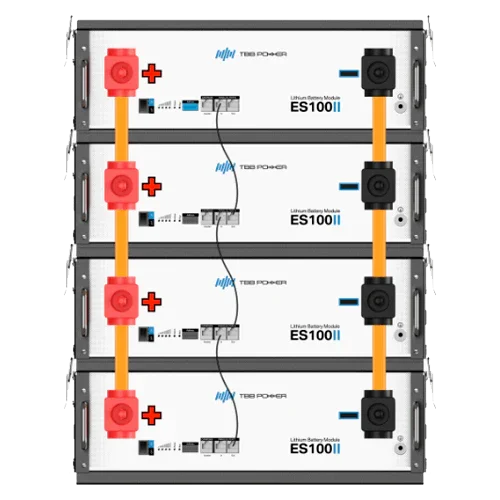

Scalability: up to 32 modules in parallel; standard parallel bus 300 A.
Rack construction (482.6 × 450 × 133.4 mm, ~40 kg) with natural dissipation and IP20.

Advantages or Benefits

High reliability: LiFePO₄ and intelligent BMS for protection, balancing, and thermal management.
Simple integration: CAN communication for coordination with management systems and compatible inverters.
Optimized total cost: 6,000 cycles at 90% DoD reduce the cost per kWh over the service life.
Quick installation: 19” rack format (3U) with handles and accessible terminals.
True scalability: modular expansion up to 32 units to grow with demand.
Wide operating environment: discharge from -20 °C to +55 °C and charge from 0 °C to +55 °C.

Purpose or Applications

Perfect for residential self-consumption with 48 V batteries, backup systems (UPS/EPS), microgrids, and light commercial or industrial applications. Also suitable for off-grid systems, telecommunications, pumping with storage, and projects requiring a safe and modular 48 V lithium battery.

Technical Specifications

Model	ES100 II
Chemistry	LiFePO₄
Nominal energy	5.04 kWh
Nominal voltage	48 V
Nominal capacity	105 Ah
Voltage range	42–54.75 V
Charge current (nom./max.)	52.5 A / 105 A
Discharge current (nom./max.)	52.5 A / 105 A
2 s peak / 2 s current	5.76 kW / 120 A
Cycle life	6,000 @ 90% DoD
Parallel	Up to 32 modules (bus 300 A)
Communication	CAN (external)
Protection	IP20, integrated BMS
Cooling	Natural dissipation
Dimensions (L×W×H)	482.6 × 450 × 133.4 mm (3U)
Weight	≈ 40 kg
Operating temperature	Discharge -20 °C to +55 °C; Charge 0 °C to +55 °C
Recommended temperature	+15 °C to +30 °C (charge/discharge)
Altitude / Humidity	< 2000 m / 15–95 %
Standards	IEC 62619, CE, UN 38.3

Compatibilities

Direct compatibility with 48 V inverters and systems that support CAN communication for battery management. For optimal integration, confirm inverter compatibility for communication and charge profiles.

Compatible accessories: simple mounting bracket, Power Rack IP65 cabinet, PDP-ES distribution module, and cabling/busbars for parallel (standard 300 A configuration).

The TBB ES100 II Lithium Battery 5.04 kWh 48 V Rack 105 Ah offers safety, scalability, and long service life for demanding self-consumption and backup projects at 48 V.
