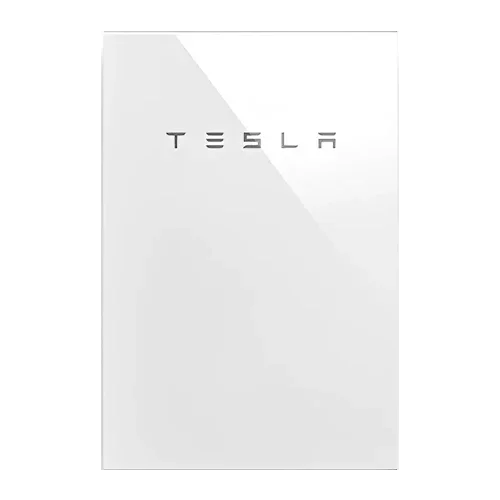

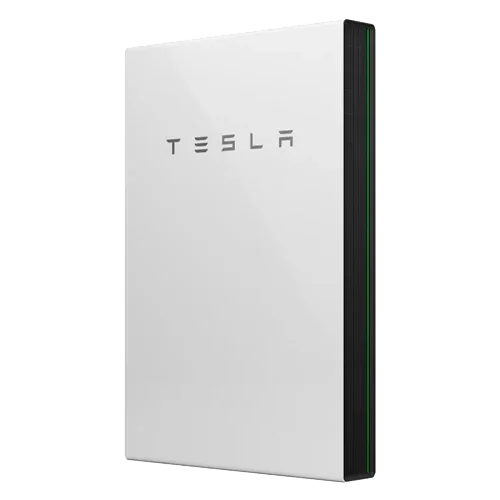

Tesla Powerwall 2 AC Lithium Battery 13.5 kWh

Product description

The Tesla Powerwall 2 AC 13.5 kWh Lithium Battery is a fully integrated AC energy storage system, designed to maximize solar self-consumption and provide stable backup for homes and small businesses. With 13.5 kWh of usable energy, 5 kW continuous power, and single-phase operation at 230 V/50 Hz, this lithium solution combines high energy density, simple installation, and advanced IP67 protection to operate safely both indoors and outdoors.

Main features

• Usable energy: 13.5 kWh (14 kWh total energy).
• Actual continuous power: 5 kW for charging and discharging (5 kVA).
• AC connection: 230 V, single-phase, 50 Hz; adjustable power factor ±1.0.
• System round-trip efficiency: 90% (AC→battery→AC).
• Degree of protection: IP67 for battery/electronics and IP56 for wiring compartment.
• Demanding environment: -20 °C to 50 °C, humidity up to 100% (with condensation), <40 dBA at 1 m.

Advantages or benefits

• More savings: stores photovoltaic surplus and reduces energy imported from the grid.
• Reliable backup: 5 kW power to cover critical loads when supply is interrupted.

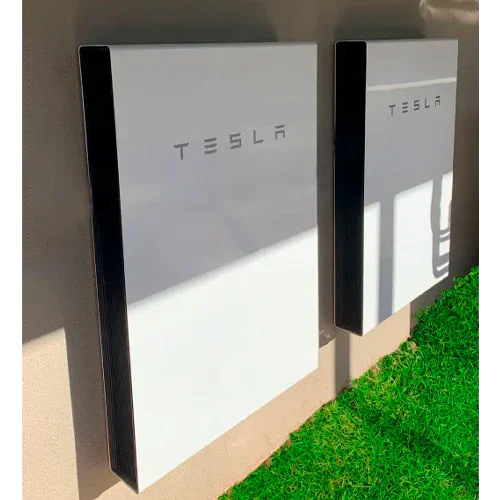

• Simplified installation: compact equipment, wall or floor mounting, and AC connection without modifying the existing PV field.
• Durability and safety: sealed enclosure (IP67) and international certifications for prolonged use.
• Silent operation: less than 40 dBA, ideal for residential use.

Purpose or applications

The Powerwall 2 is suitable for homes with solar self-consumption seeking energy independence and service continuity, small businesses requiring backup during grid outages, and residential projects with single-phase AC storage needs at 230 V. It can also be integrated into existing installations without changing the photovoltaic inverter, as it operates on the grid side.

Technical specifications

Compatibilities

AC integration with single-phase photovoltaic installations at 230 V and backup management systems. Common accessories: Tesla Backup Gateway 2 (management and switching), AC electrical protections (suitable circuit breaker + residual current device), wiring, and IP65/IP66 weatherproof panels. If you have internal URLs, they will be linked here; otherwise, models are listed without links.

Tesla Powerwall 2 AC 13.5 kWh Lithium Battery provides efficient AC storage, reliable backup, and a clean, compact installation to enhance your self-consumption performance.
