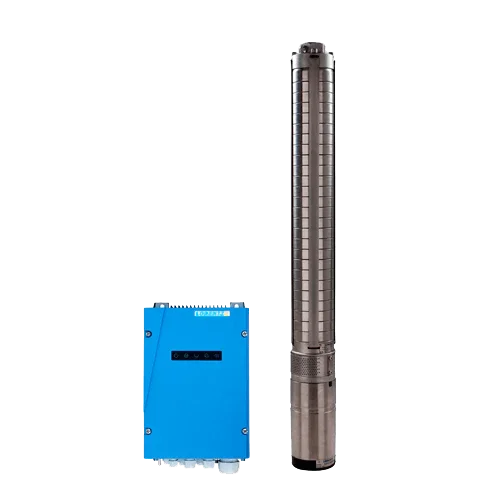

Lorentz PS2-1800 C-SJ1-25 Submersible Solar Pump 3.0 m³/h 140 m centrifugal with controller

Modelo: 03-009260 PS2-1800 C-SJ1-25

Sku: LOREBOM092
Vendor: Lorentz

€2.822,59 EUR

€2.258,07 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Lorentz PS2-1800 C-SJ1-25 Submersible Solar Pump with PS2 (MPPT) controller, 3.0 m³/h and 140 m. Brushless IP68 motor, optimal Vmp > 102 V, max. PV input 200 V, and advanced protections.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Lorentz PS2-1800 C-SJ1-25 Submersible Solar Pump is a complete system for 4” wells that combines the PS2-1800 controller with MPPT tracking, a brushless ECDRIVE motor, and the PE C-SJ1-25 centrifugal hydraulics in AISI 304 with a check valve. Designed for deep wells and elevated tanks, it offers up to 3.0 m³/h flow rate and a head of 140 m, maintaining high efficiency, very low maintenance, and outstanding reliability even in demanding environments.

Main Features

PS2-1800 Controller with integrated MPPT: optimizes solar energy and allows control/monitoring.
PV window: Optimal Vmp > 102 V; input voltage max. 200 V.
Maximum current to motor: 14 A; maximum efficiency: 98 % (controller).
ECDRIVE 1200-C / 1800-C brushless motor, nominal 1.7 kW, IP68, 900–3300 rpm.
PE C-SJ1-25 hydraulics in AISI 304 with check valve; maximum hydraulic efficiency ≈ 49 %.

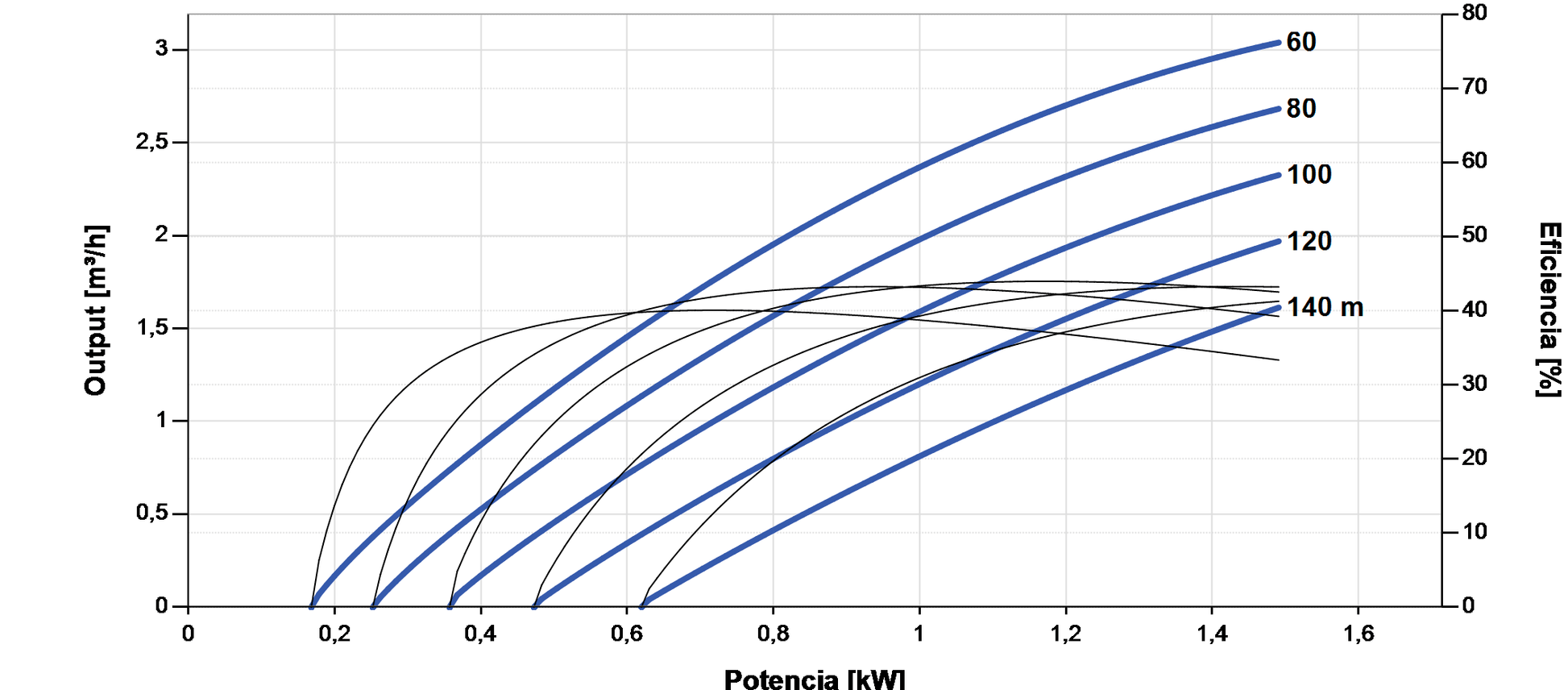

System performance: 3.0 m³/h and 140 m under optimal conditions.

Advantages or Benefits

More water per kWh from early hours thanks to MPPT and high-efficiency electronics.
Industrial reliability: protections against reverse polarity, overload, and overtemperature, input for dry well and remote control.
Minimal maintenance due to its sealed brushless motor and stainless construction.
Battery-ready: integrated deep discharge protection in the PS2-1800.
Lorentz modularity: allows separate replacement of controller, motor, or hydraulics.

Purpose or Applications

Supply to elevated tanks, internal networks with elevation, pressurized irrigation of plots with sprinklers/drip, long-distance transfers, and, in general, solar pumping projects requiring high water column with contained electrical consumption.

Technical Specifications

System type	Submersible solar with integrated PS2-1800 controller
Max. system power	1.8 kW
Max. flow / head	3.0 m³/h / 140 m
PV voltage	Max. input 200 V; Optimal Vmp > 102 V
Max. current to motor	14 A
Max. efficiency (controller / motor / hydraulics)	98 % / 92 % / ≈ 49 %
Motor	ECDRIVE 1200-C / 1800-C, brushless, water-filled, IP68
Hydraulics	PE C-SJ1-25, AISI 304, check valve
Ambient temperature	−40…50 °C
Maximum immersion	Up to 150 m
Controller dimensions	899×203×696 mm; S fitting = 1.25”
Unit dimensions (reference)	H1 352 · H2 333 · W1 207 · W2 170 · W3 164 · D1 124 mm
Weight	Controller 4.4 kg; unit 15 kg (motor 7.0 kg + head 7.9 kg)

Compatibilities

Compatible with PV generators whose string respects the controller window (Vmp/Voc within range and Isc ≤ equipment limit). Supports dry well sensors, level switches, and remote control via the PS2-1800. At installation level, it is suitable for standard clean water networks and 4” discharge accessories.

The Lorentz PS2-1800 C-SJ1-25 Submersible Solar Pump offers a clear value proposition: maximum pressure with solar efficiency, advanced electronics, and a modular architecture that simplifies the service life of your photovoltaic pumping system.
