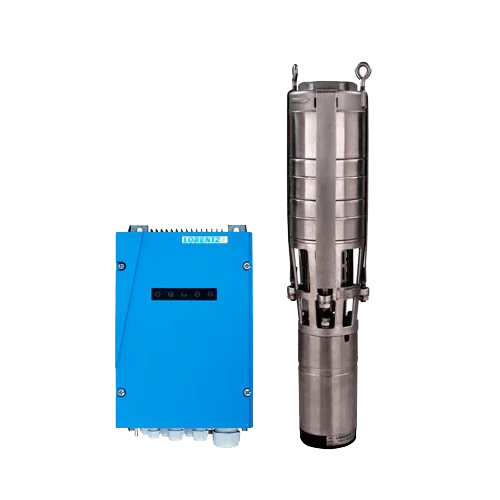

Lorentz PS2-1800 C-SJ17-2 26m³/h 16m centrifugal submersible solar pump with controller
Modelo: 03-009340 PS2-1800 C-SJ17-2- Sku: LOREBOM097
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-1800 C-SJ17-2 Submersible Solar Pump is an “all-in-one” photovoltaic pumping system that integrates the PS2-1800 controller with MPPT tracking, a brushless ECDRIVE submersible motor, and the PE C-SJ17-2 centrifugal hydraulics. It delivers up to 26 m³/h with a head of 16 m, offering maximum efficiency, advanced protection, and reliability for irrigation, water transfer, and tank filling in off-grid or hybrid installations.
Main Features
- Maximum flow rate: 26 m³/h and maximum head: 16 m (6" wells).
- PS2-1800 controller with MPPT, monitoring, and probe inputs.
- PV generator: Aggregated Vmp > 102 V; maximum input voltage 200 V DC.
- ECDRIVE 1200/1800-C motor, IP68, water-lubricated; maximum motor current 14 A.
- Reference efficiencies: controller up to 98 %, motor up to 92 %; hydraulics ≈ 59 %.
- Protections: reverse polarity, overload, temperature; integrated Sun Sensor.
Advantages or Benefits
- Complete system with included controller: quick and safe installation.
- High flow rate with low head for filling reservoirs and gravity-fed irrigation.
- MPPT maximizes performance under any irradiation conditions.
- Low maintenance: brushless motor and stainless materials.
- Simple automation with well probes, float switches, and dry-run protection.
Purpose or Applications
Ideal for agriculture and livestock, transfers between tanks, reservoir refilling, and supply where flow rate is prioritized with moderate pressures. Operates in off-grid or hybrid solar systems with grid or generator support.
Technical Specifications
| Model | PS2-1800 C-SJ17-2 |
| Max. system power | 1.8 kW |
| PV generator (optimal) | Vmp > 102 V |
| Max. PV voltage | 200 V DC |
| Max. motor current | 14 A |
| Max. flow / head | 26 m³/h / 16 m |
| Hydraulics | PE C-SJ17-2, centrifugal, non-return valve |
| Motor | ECDRIVE 1200/1800-C, brushless, IP68 |
| Efficiency (ctrl./motor) | Up to 98 % / up to 92 % |
| Ambient temp. | −40…50 °C |
| Max. immersion | 150 m |
| Controller dimensions (A×B×C) | 595×203×392 mm |
| Reference weights | Controller ≈ 4.4 kg; pump unit ≈ 14 kg (motor ≈ 7 kg; hydraulics ≈ 7 kg) |
| Water temperature | ≤ 50 °C (clean water) |
| Minimum well diameter | 6" |
Compatibilities
Includes PS2-1800 controller. Integrates standard level/well probes and float switches. Size the PV array so that the Total Voc ≤ 200 V DC and Aggregated Vmp > 102 V; the Isc of the array must be within the admissible range of the PS2-1800. Compatible with Lorentz C-SJ series accessories and spare parts and ECDRIVE motors.
The Lorentz PS2-1800 C-SJ17-2 Submersible Solar Pump combines flow rate, efficiency, and reliability, providing a robust and ready solution for professional solar pumping projects.
