Lorentz PS2-1800 HRE-04 0.71 m³/h 70 m Helical Submersible Solar Pump with Controller
Modelo: 03-010370 PS2-1800 HRE-04- Sku: LOREBOM102
- Vendor: Lorentz
Specifications
Product Description

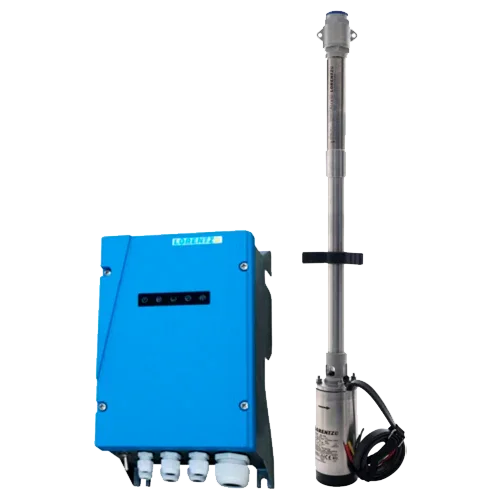

The Lorentz PS2-1800 HRE-04 Submersible Solar Pump is an integrated 4” system that combines the PS2-1800 controller with MPPT, ECDrive 1800-HRE brushless motor, and HRE-04 helical head in AISI 304/316. It delivers up to 0.71 m³/h and lifts water up to 70 m, with advanced protections and reliable operation in demanding solar installations for supply, irrigation, and livestock.
Main Features

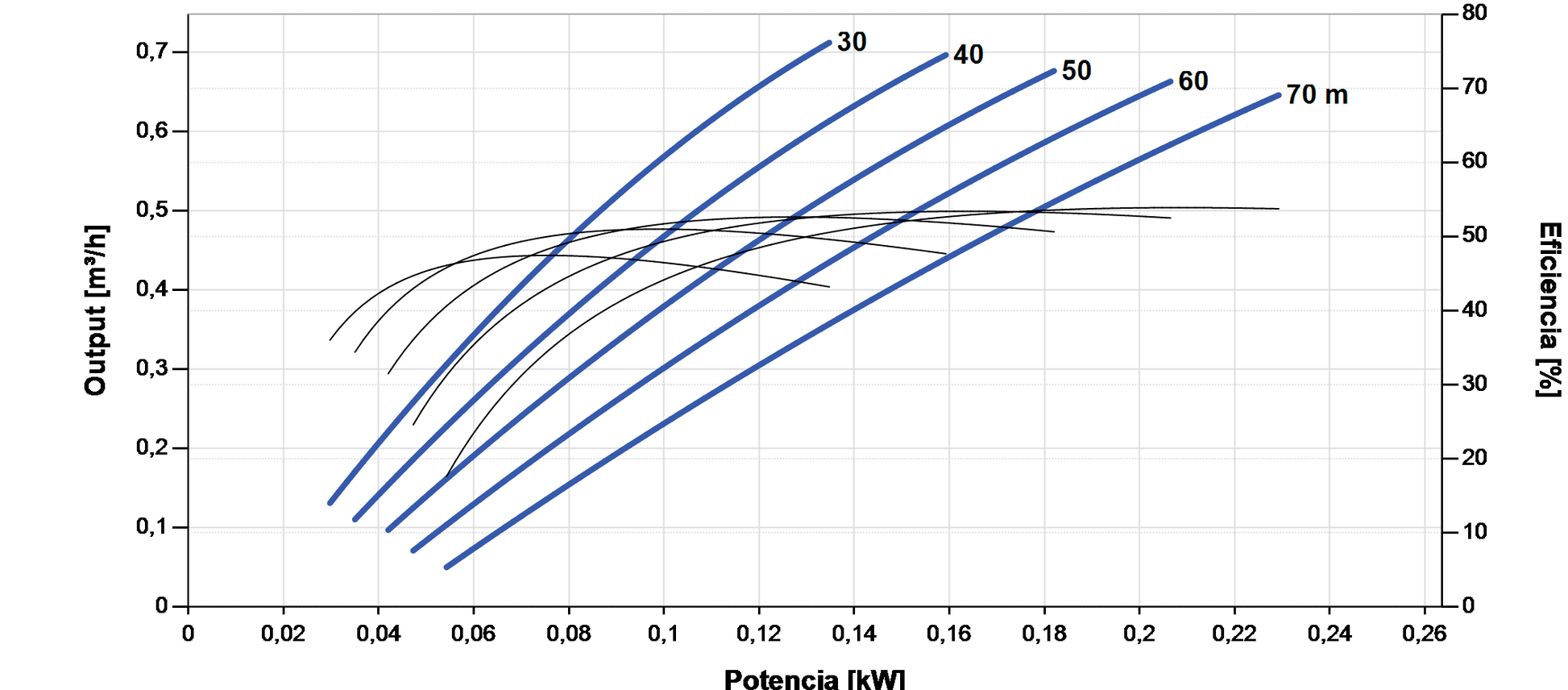

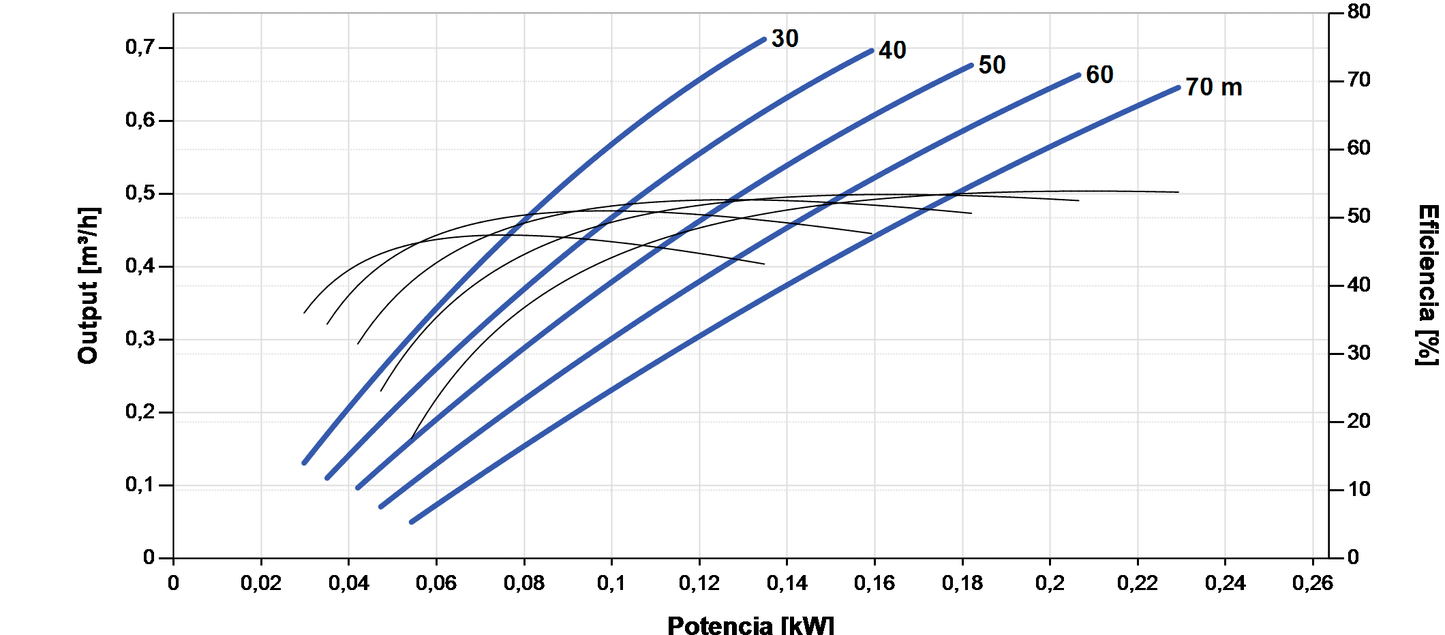

- Reference head 70 m and flow rate up to 0.71 m³/h.
- PS2-1800 controller with MPPT, allowable PV power ~1.8 kW, max. input voltage 200 V, optimal Vmp > 102 V.
- ECDrive 1800-HRE motor (~1.7 kW), brushless, IP68, immersion up to 150 m, maintenance-free.
- HRE-04 helical hydraulics with non-return valve, AISI 304/316 construction.
- Inputs for dry well/remote control and integrated Sun Sensor; option for battery operation.
Advantages or Benefits
- Superior energy efficiency due to MPPT and brushless motor, reducing PV array size.
- Professional reliability: protections against reverse polarity, overload, and overtemperature.
- Minimal maintenance and long service life even in severe environmental conditions.
- Safe water resource management with dry well shutdown and tank control.
Purpose or Applications
Domestic/community supply, elevated tanks, drip irrigation, and livestock. Ideal when good manometric head is required with moderate flow rates and solar power supply.
Technical Specifications
| Reference head / Flow rate | Up to 70 m / 0.71 m³/h |
| Max. PV input | 200 Vdc (Vmp > 102 V) |
| Allowable PV power | ≈ 1.8 kW |
| Controller | PS2-1800 with MPPT, Sun Sensor, dry well/remote control inputs |
| Max. motor current | ≈ 14 A |
| Motor | ECDrive 1800-HRE, ~1.7 kW, 900–3,300 rpm, IP68, immersion up to 150 m |
| Hydraulics | PE HRE-04 helical with non-return valve, AISI 304/316 |
| Minimum well diameter | ≥ 4” |
| Water temperature | ≤ 50 °C |
| Controller dimensions | A 966 mm · B 203 mm · C 763 mm · D 96 mm · E 147 mm |
| Approx. weights | Controller 4.4 kg · Pump unit 11 kg · Motor 6.7 kg · Head 4.0 kg |
| Degree of protection | IP68 (motor and system) |
Compatibilities
Operates with photovoltaic arrays that comply with the controller limits (Voc within 200 Vdc and Vmp > 102 V). Can be integrated with suitable batteries for support/back-up. Compatible with standard accessories: dry well and tank probes, DC protections, submersible cable, and piping elements. Not limited to panel brands; size according to allowable voltage and current.
The Lorentz PS2-1800 HRE-04 Submersible Solar Pump offers the ideal combination of efficiency, intelligent control, and durability for professional solar pumping projects.
