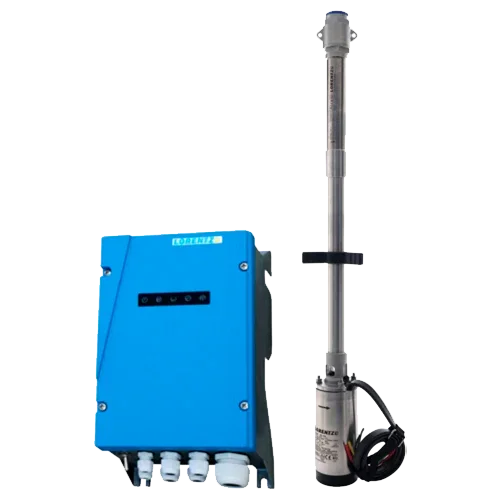

Lorentz PS2-1800 HRE-07 1.3m³/h 120m Helicoidal Submersible Solar Pump with Controller
Modelo: 03-010400 PS2-1800 HRE-07- Sku: LOREBOM105
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-1800 HRE-07 1.3 m³/h 120 m Helical Submersible Solar Pump with Controller is a professional, ready-to-use system that integrates the PS2-1800 MPPT controller, ECDrive 1800-HRE brushless motor (1.7 kW, IP68), and the HRE-07 helical hydraulic body in AISI 304/316 stainless steel. Designed for 4” wells, it provides a flow rate of 1.3 m³/h with up to 120 m head, offering maximum performance and reliability for demanding pumping applications.
Main Features
- Flow Rate/Head: 1.3 m³/h and 120 m (4” wells).
- PS2-1800 Controller: MPPT, Sun Sensor, inputs for well/tank probe and remote control.
- PV Input: max. power 1.8 kW, max. voltage 200 V, Vmp > 102 V.
- ECDrive 1800-HRE Motor: 1.7 kW, max. efficiency ~92%, IP68, immersion up to 150 m.
- HRE-07 Hydraulics in AISI 304/316 with check valve; max. hydraulic efficiency ~70%.
- Controller efficiency up to ~98% and protections: reverse polarity, overload, and overtemperature.
Advantages or Benefits
- More daily water with the same PV array thanks to MPPT and helical hydraulics.
- Quick and safe installation: complete system with connectivity for probes and automation.
- Low operating cost: brushless motor, high efficiency, and stainless materials that extend service life.
- Stable operation with variable irradiation and backup option with batteries.
- IP68 reliability for continuous operation in remote environments.
Purpose or Applications
Supply to elevated tanks, sprinkler/drip irrigation on sloped land, livestock, and small networks in rural areas where high pressure with moderate flow is required.
Technical Specifications
| Max. flow rate | 1.3 m³/h |
| Max. head | 120 m |
| Controller | PS2-1800 with MPPT and Sun Sensor |
| Max. PV power | 1.8 kW |
| Max. input voltage | 200 V DC |
| Optimal Vmp | > 102 V |
| Motor | ECDrive 1800-HRE, 1.7 kW, brushless, IP68; max. immersion 150 m |
| Hydraulics | PE HRE-07 helical, AISI 304/316, check valve, max. η ~70% |
| Ambient/water temp. | −40…50 °C / ≤ 50 °C |
| Controller dimensions | A 962 × B 203 × C 759 × D 96 × E 147 mm |
| Approx. weight | Controller ~4.4 kg; pump unit ~11 kg |
| Protection rating | IP68 (submersible unit) |
Compatibilities
Compatible with PV arrays that meet Vmp > 102 V and the controller’s 200 V/1.8 kW limits. Supports level sensors, pressure switches, and external control. Recommended for supply and irrigation systems at high elevation according to required flow/pressure.
The Lorentz PS2-1800 HRE-07 1.3 m³/h 120 m guarantees daily water with solar energy: intelligent control, helical efficiency, and premium construction.
