Lorentz PS2-1800 HRE-07H 1.4m³/h 160m Helicoidal Submersible Solar Pump with Controller
Modelo: 03-010410 PS2-1800 HRE-07H- Sku: LOREBOM106
- Vendor: Lorentz
Specifications
Product Description

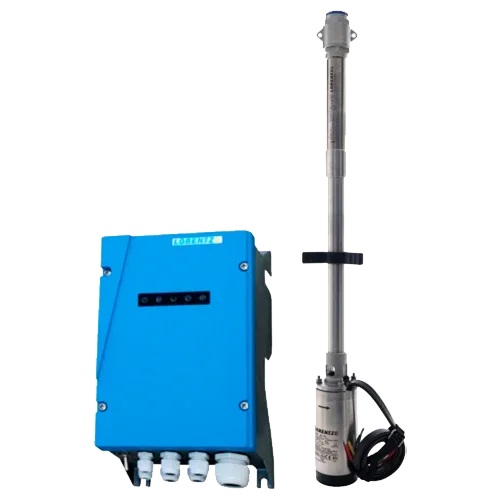

The Lorentz PS2-1800 HRE-07H 1.4 m³/h 160 m Helical Submersible Solar Pump with Controller is a professional system ready to operate in 4” wells with high manometric head requirements. It integrates a controller with MPPT, a brushless ECDrive 1800-HRE 1.7 kW motor, and the HRE-07H helical hydraulic body in AISI 304/316 stainless steel, offering a flow rate of up to 1.4 m³/h and a maximum head of 160 m with IP68 reliability and minimal maintenance.
Main Features
- Flow/Head: up to 1.4 m³/h and 160 m in 4” wells.
- PS2 Controller with MPPT, inputs for well probe, full tank, and remote control.
- ECDrive 1800-HRE Motor: brushless, sealed, high efficiency, IP68, and typical immersion up to 150 m.
- HRE-07H Hydraulics: helical screw with integrated check valve to protect the installation.
- Premium construction in AISI 304/316 for maximum resistance and extended service life.
- Optimized operation for solar energy with soft starts and high tolerance to variable irradiation.
Advantages or Benefits
- High head capacity while maintaining useful flow rates throughout the solar day.
- Quick installation: complete system with protections and connectivity for automation via probes.
- Low operating cost: brushless motor, efficient hydraulics, and electronics optimized for PV.
- Proven reliability in remote environments: IP68 rating and stainless materials.
- Scalable: configurable with different PV arrays and control logic according to project needs.
Purpose or Applications
Suitable for deep wells with very high pressure demands: supply to elevated tanks, sprinkler irrigation at higher elevations, small distribution networks, livestock, and light industrial applications. Excellent for off-grid installations where reliable high-head pumping is required.
Technical Specifications
| Maximum flow rate | 1.4 m³/h |
| Maximum head | 160 m |
| Controller | PS2-1800 with MPPT, inputs for probes and external control |
| Motor | ECDrive 1800-HRE, 1.7 kW, brushless, IP68 |
| Hydraulics | PE HRE-07H helical, AISI 304/316, check valve |
| Minimum well diameter | 4” |
| Typical immersion | Up to 150 m (depending on installation) |
| Water temperature | ≤ 50 °C (clean water) |
| Protection rating | IP68 (submersible unit) |
| Approx. weight | Controller ~4.4 kg; pump unit ~11 kg |
Compatibilities
Can operate with photovoltaic arrays that respect the voltage and power limits of the controller used. Integrates inputs for level sensors and external signals, making it suitable for supply systems, elevated tanks, and high-head irrigation as long as the hydraulic sizing (flow/head) is appropriate.
The Lorentz PS2-1800 HRE-07H 1.4 m³/h 160 m Submersible Solar Pump combines intelligent control, helical hydraulics, and quality construction to ensure daily water supply at great heights using solar energy.
