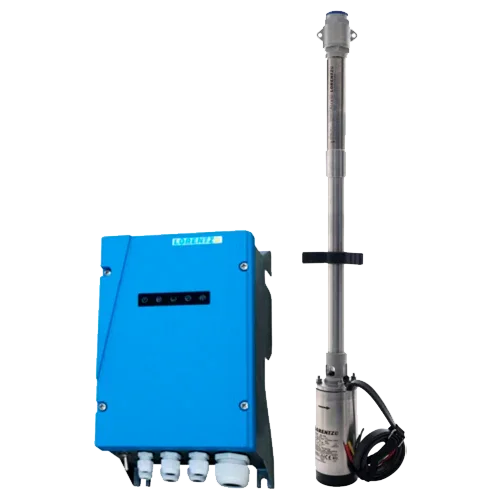

Lorentz PS2-1800 HRE-10 2.1m³/h 80m Helicoidal Submersible Solar Pump with Controller
Modelo: 03-010420 PS2-1800 HRE-10- Sku: LOREBOM107
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-1800 HRE-10 2.1 m³/h 80 m Helical Submersible Solar Pump with Controller is a professional, ready-to-use system that integrates the PS2-1800 MPPT controller, ECDrive 1800-HRE brushless motor (1.7 kW), and HRE-10 helical hydraulic body. It delivers up to 2.1 m³/h with a maximum head of 80 m, maintaining high efficiency, IP68 protection, and electronics specifically developed to work with photovoltaic energy.
Main Features
- Flow/Head: up to 2.1 m³/h and 80 m for 4” wells.
- PS2-1800 Controller with MPPT, Sun Sensor, inputs for well/tank probe, and remote control.
- PV Input: max. power 1.8 kW, max. input voltage 200 V, optimal Vmp > 102 V.
- ECDrive 1800-HRE Motor: nominal 1.7 kW, max. efficiency ~92%, IP68, immersion up to 150 m.
- HRE-10 Hydraulics: helical design in AISI 304/316 with non-return valve; max. hydraulic efficiency ~67%.
- Controller efficiency up to ~98% and protections against reverse polarity, overload, and overtemperature.
Advantages or Benefits
- More daily water with the same PV generator thanks to MPPT tracking and efficient helical hydraulics.
- Quick and safe installation: complete system with connectivity for level probes and automation.
- Extreme reliability: sealed brushless motor, no periodic maintenance, and construction in AISI 304/316 stainless steel.
- Stable operation with variable irradiation; possibility of backup with batteries via the controller itself.
- Reduced total cost due to its high efficiency and long service life in demanding environments.
Purpose or Applications
Designed for water supply in off-grid homes, drip or light sprinkler irrigation, transfer to elevated tanks, and livestock. Especially suitable when high pressure is needed with flows close to 2 m³/h in 4” wells.
Technical Specifications
| Max. flow | 2.1 m³/h |
| Max. head | 80 m |
| Controller | PS2-1800 with MPPT and Sun Sensor |
| Max. PV power | 1.8 kW |
| Max. input voltage | 200 V DC |
| Optimal Vmp | > 102 V |
| Motor | ECDrive 1800-HRE, 1.7 kW, brushless, IP68; max. immersion 150 m |
| Hydraulics | PE HRE-10 helical, AISI 304/316, non-return valve, η max. ~67% |
| Ambient/water temp. | -40…50 °C / ≤ 50 °C |
| Protection rating | IP68 (submersible unit) |
| Approx. weight | Controller ~4.4 kg; pump unit ~11 kg |
| Controller dimensions | A 962 × B 203 × C 759 × D 96 × E 147 mm |
Compatibilities
Compatible with photovoltaic arrays that meet Vmp > 102 V and the controller limits (200 V / 1.8 kW). Integrable with level sensors and automation. In general, usable with elevated tanks, irrigation networks, and supply systems requiring the indicated flow/head, provided the PV system meets the admissible current/voltage.
The Lorentz PS2-1800 HRE-10 2.1 m³/h 80 m Submersible Solar Pump offers the Lorentz value proposition: reliable water every day with solar energy, intelligent control, and industrial construction designed to last.
