Lorentz PS2-1800 HRE-14 2.5m³/h 60m Helicoidal Submersible Solar Pump with Controller
Modelo: 03-010430 PS2-1800 HRE-14- Sku: LOREBOM108
- Vendor: Lorentz
Specifications
Product Description

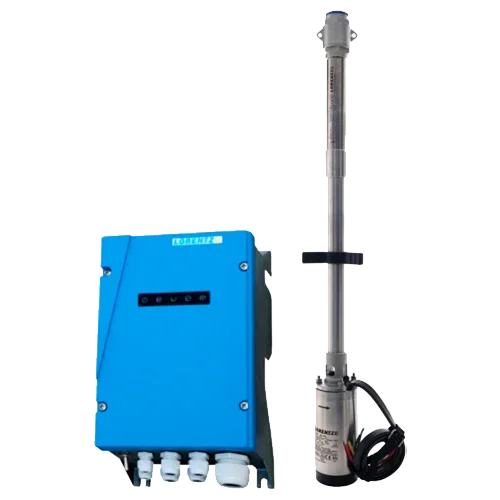

The Lorentz PS2-1800 HRE-14 2.5 m³/h 60 m Helical Submersible Solar Pump with Controller is a professional, ready-to-use system that integrates an MPPT controller, ECDrive 1800-HRE brushless motor, and HRE-14 helical hydraulics. It offers a flow rate of up to 2.5 m³/h and a maximum head of 60 m, with high efficiency, IP68 protection, and electronics optimized for photovoltaic energy.
Main Features
- Flow/Head: up to 2.5 m³/h and 60 m (4” wells).
- PS2-1800 Controller with MPPT, integrated Sun Sensor, and inputs for level protection, remote control, etc.
- PV Range: optimal Vmp > 102 V; max. input voltage 200 V; max. power 1.8 kW.
- ECDrive 1800-HRE Motor (nominal 1.7 kW), brushless, max. efficiency ~92%, immersion up to 150 m, IP68.
- HRE-14 Hydraulics in AISI 304/316 stainless steel with non-return valve and high efficiency index.
- Protections: reverse polarity, overload, and overtemperature; operation with battery with deep discharge protection.
Advantages or Benefits
- More water per day with the same PV array thanks to MPPT tracking and efficient helical design.
- Quick installation: complete system with controller, inputs for well probes, and automation.
- Extreme reliability: sealed brushless motor, no periodic maintenance, and electronics proven in remote environments.
- Flexible operation: supports level sensors, remote control, and operation with batteries (back-up) when needed.
- Reduced total cost: fewer downtime hours, optimized PV consumption, and long component lifespan.
Purpose or Applications
Ideal for pumping in 4” wells with medium-high pressure demands: supply for isolated homes, localized or light sprinkler irrigation, transfer to elevated tanks, livestock, and small industrial systems. Excellent performance in autonomous photovoltaic installations with variable irradiation.
Technical Specifications
| Max. flow rate | 2.5 m³/h |
| Max. head | 60 m |
| Controller | PS2-1800 with MPPT and Sun Sensor |
| Max. PV power | 1.8 kW |
| Max. input voltage | 200 V DC (optimal Vmp > 102 V) |
| Max. motor current | 14 A |
| Motor | ECDrive 1800-HRE, nominal 1.7 kW, brushless, IP68 |
| Hydraulics | PE HRE-14 helical, AISI 304/316, non-return valve |
| Well diameter | ≥ 4” |
| Ambient/water temp. | -40…50 °C / ≤ 50 °C (water) |
| Protection rating | IP68 (motor and pump) |
| Approx. weight | Controller ~4.4 kg; pump unit ~11 kg |
Compatibilities
Compatible with photovoltaic arrays providing a Vmp > 102 V and meeting the controller’s voltage and power limits. Supports level sensors, tank switches, and external automation. For general applications, it is compatible with irrigation systems, supply, and elevated tanks requiring the indicated flow/pressure.
The Lorentz PS2-1800 HRE-14 2.5 m³/h 60 m Helical Submersible Solar Pump with Controller offers a clear value proposition: more daily water with solar energy, intelligent control, IP68 robustness, and the support of an industrial design built to operate for years under demanding conditions.
