Lorentz PS2-1800 HRE-14H 2.7m³/h 120m Helicoidal Submersible Solar Pump with Controller

Modelo: 03-010240 PS2-1800 HRE-14H

Sku: LOREBOM109
Vendor: Lorentz

€2.823,56 EUR

€2.258,85 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Lorentz PS2-1800 HRE-14H Submersible Solar Pump with MPPT controller, up to 2.7 m³/h and 120 m. Professional IP68 system for 4" wells, advanced protections, and inputs for dry well.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

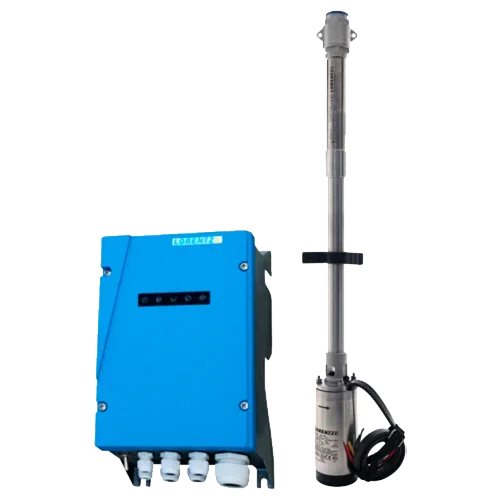

The Lorentz PS2-1800 HRE-14H Submersible Solar Pump is a complete photovoltaic pumping system for 4" wells, integrating the PS2-1800 controller with MPPT, ECDrive 1800-HRE motor, and HRE-14H helical head. It delivers up to 2.7 m³/h and 120 m total head, offering maximum reliability, advanced electrical protection, and easy installation for irrigation, livestock, and potable water supply in off-grid or hybrid environments.

Main Features

PS2-1800 Controller with MPPT: max. power 1.8 kW, max. PV V_OC 200 V, optimal operation with V_mp > 102 V, max. efficiency 98%.
ECDrive 1800-HRE motor: 1.7 kW, brushless, max. efficiency 92%, 900–3,300 rpm, water-filled, IP68, max. immersion 150 m.
PE HRE-14H helical pump head with non-return valve; max. hydraulic efficiency 79%.
Premium materials in AISI 304/316 stainless steel for high corrosion resistance.
Temperatures: water up to 50 °C; ambient −40…50 °C. Minimum well 4".

Advantages or Benefits

MPPT tracking maximizes performance with variable irradiation and reduces energy cost.
Integrated safety: protections for reverse polarity, overload, and overtemperature; inputs for dry well and remote control.
Minimal maintenance thanks to the brushless motor without submerged electronics.
Modular architecture: motor, head, and controller replaceable separately to reduce downtime.
Stable pressure at high head with helical design, ideal for sprinkler irrigation or elevated tanks.

Purpose or Applications

Agricultural irrigation (drip/sprinkler), livestock watering, tank filling, domestic supply on farms, and small pressurized networks in off-grid or hybrid solar installations with backup.

Technical Specifications

Type	PS2 system with controller, motor, and helical head
Maximum flow rate	2.7 m³/h
Maximum head	120 m
PV input	Max. V_OC 200 V; optimal V_mp > 102 V
Controller power / efficiency	1.8 kW max. / up to 98%
Motor	ECDrive 1800-HRE, 1.7 kW, 900–3,300 rpm, IP68
Pump head	PE HRE-14H, helical, non-return valve
Materials	AISI 304/316 stainless steel
Minimum well	4" (drilling Ø ≥ 4.0")
Immersion / water temp.	Up to 150 m / up to 50 °C
Ambient temperature	−40…50 °C
Protection rating	IP68 (submersible unit)

Compatibilities

PV array compatible as long as the string meets combined V_mp > 102 V and total V_OC < 200 V. Usable in off-grid solar systems, hybrids with backup, and direct pumping. Accessories: level probes, dry well sensors, DC protections, submersible cable, and splice kits. Associated components: ECDrive 1800-HRE motor and PE HRE-14H head.

Lorentz PS2-1800 HRE-14H Submersible Solar Pump provides superior performance, protection, and reliability for professional high-head solar pumping with minimal maintenance.
