Lorentz PS2-200 C-SJ3-9 Submersible Solar Pump 3.3 m³/h 35 m centrifugal with controller
Modelo: 02-001080 PS2-200 C-SJ3-9- Sku: LOREBOM077
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-200 C-SJ3-9 Submersible Solar Pump is a complete system for 4” wells that integrates the PS2-200 controller with MPPT, ECDRIVE 200-C brushless motor, and the PE C-SJ3-9 centrifugal hydraulic head in AISI 304 with a non-return valve. It offers up to 3.3 m³/h flow rate and 35 m head, with silent operation, very low maintenance, and proven reliability in residential, agricultural, and livestock applications.
Main Features
- PS2-200 Controller with MPPT: optimizes solar energy and protects the system.
- System performance: 3.3 m³/h flow rate and 35 m maximum head.
- ECDRIVE 200-C brushless motor, water-filled, IP68, maintenance-free.
- PE C-SJ3-9 hydraulic in AISI 304 with non-return valve; reference hydraulic efficiency (≈53%).
- Indicative PV window for PS2-200: Optimal Vmp > 34 V, max. input voltage ≈ 75 V.
Advantages or Benefits
- More water per kWh thanks to MPPT tracking and efficient electronics.
- Integrated protections (reverse polarity, overload, overtemperature) and input for dry well.
- Silent operation and no periodic maintenance with sealed brushless motor.
- Lorentz modular architecture allows separate replacement of motor, hydraulic, or controller.
Purpose or Applications
Supply for off-grid homes, tank filling, transfers, and gravity/low-pressure irrigation. Ideal when a balanced combination of power, reliability, and solar efficiency is required.
Technical Specifications
| System type | Submersible solar with integrated PS2-200 controller |

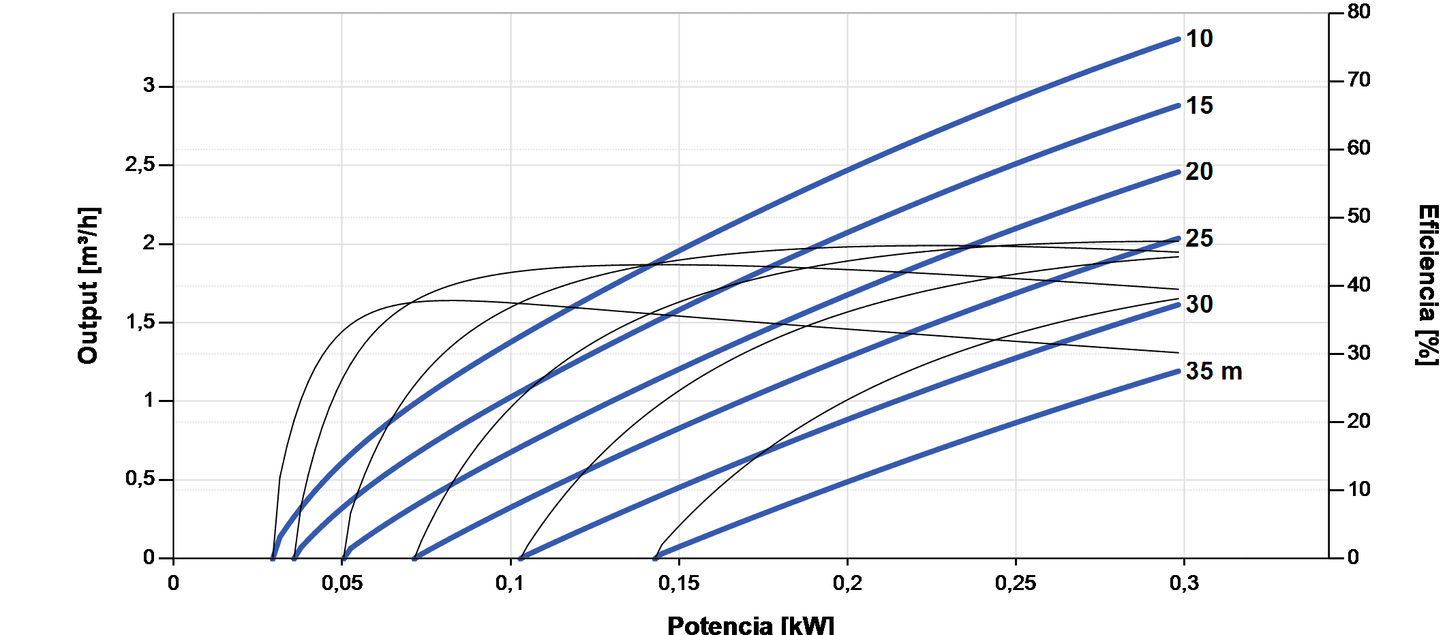

| Flow rate / Max. head | 3.3 m³/h / 35 m |
| PV voltage (PS2-200) | Max. input ≈ 75 V; optimal Vmp > 34 V |
| Motor | ECDRIVE 200-C, brushless, water-filled, IP68 |
| Hydraulic | PE C-SJ3-9, centrifugal, AISI 304, non-return valve |
| Protection rating | IP68 (submersible unit) |
| Maximum immersion | Up to 150 m |
| Water temperature | Max. 50 °C |
Compatibilities
Compatible with PV generators whose string meets the PS2-200 window (Vmp and Voc within range and Isc ≤ controller limit). Direct spare parts: PE C-SJ3-9 head and PU200 C-SJ3-9 unit. Accessories: dry well probes and float switches via the controller.
The Lorentz PS2-200 C-SJ3-9 Submersible Solar Pump is the compact and efficient solution for medium flow solar pumping projects in 4” wells.
