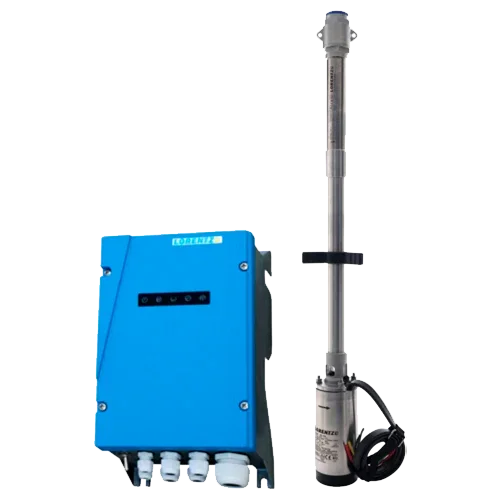

Lorentz PS2-200 HRE-10 2.1m³/h 30m helical submersible solar pump with controller
Modelo: PS2-200 HRE-10- Sku: LOREBOM080
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-200 HRE-10 2.1 m³/h 30 m helical Submersible Solar Pump with controller is designed for projects requiring high efficiency with small PV arrays. It integrates the PS2-200 MPPT controller, ECDrive 200-HRE brushless motor, and HRE-10 helical hydraulic body, offering up to 2.1 m³/h with 30 m of lift. Its robust design in AISI 304/316, IP68 protection, and compatibility with probes ensure reliable, low-maintenance service in supply and light irrigation applications.
Main Features
- Flow/Head: up to 2.1 m³/h and 30 m.
- PS2-200 Controller with MPPT, inputs for dry-run protection, full tank, and remote control.
- PV Input: max. power 0.30 kW; max. input voltage 100 V; Optimal Vmp > 34 V.
- ECDrive 200-HRE Motor high-efficiency brushless, sealed, IP68.
- HRE-10 Hydraulics helical with max. efficiency ~67% and integrated check valve.
- Construction in AISI 304/316 stainless steel; typical max. immersion 150 m.
Advantages or Benefits
- Outstanding performance with low solar power thanks to MPPT and helical hydraulics.
- Simple and safe installation: controller with protections and inputs for probe-based automation.
- Minimal maintenance: brushless motor and stainless materials extend service life.
- Reduced total cost in low-medium pressure applications and optimized energy consumption.
- Stable operation with variable irradiation typical of off-grid systems.
Purpose or Applications
Domestic supply in isolated homes, tank filling, livestock, and drip irrigation where efficiency and simplicity with moderate pressures are prioritized. Perfect for 4” wells and compact photovoltaic arrays.
Technical Specifications
| Maximum flow | 2.1 m³/h |
| Maximum head | 30 m |
| Controller | PS2-200 with MPPT and interfaces for probes/remote |
| Maximum PV power | 0.30 kW |
| Max. input voltage | 100 V DC |
| Optimal Vmp | > 34 V |
| Motor | ECDrive 200-HRE, brushless, IP68 |
| Hydraulics | PE HRE-10 helical, AISI 304/316, check valve |
| Hydraulic efficiency | Up to ~67% (optimal point) |
| Well diameter | ≥ 4” |
| Water temperature | ≤ 50 °C (clean water) |
| Protection rating | IP68 (submersible unit) |
Compatibilities
Compatible with photovoltaic arrays providing Vmp > 34 V and within controller limits (≤100 V, ≤0.30 kW). Supports level sensors and basic or advanced automation. Suitable for supply and irrigation systems when specified flow and head requirements are met.
The Lorentz PS2-200 HRE-10 2.1 m³/h 30 m delivers reliable water with solar energy: intelligent control, top-level efficiency, and robust construction designed to last.
