Lorentz PS2-200 HRE-14 2.6 m³/h 20 m Helical Submersible Solar Pump with Controller

Product Description

The Lorentz PS2-200 HRE-14 2.6 m³/h 20 m Helical Submersible Solar Pump with Controller combines in a single system the MPPT PS2-200 controller, the ECDrive 200-HRE brushless motor, and the HRE-14 helical hydraulics. It provides up to 2.6 m³/h and 20 m of lift with high efficiency, ideal for supply and light irrigation applications in 4” wells.

Main Features

• Flow/Head: up to 2.6 m³/h and 20 m.
• PS2-200 Controller with MPPT, inputs for level protection and remote control.
• PV Input: max. power 0.30 kW, max. input voltage 100 V, optimal Vmp > 34 V.
• ECDrive 200-HRE Motor brushless and sealed, with IP68 protection for immersion.
• PE HRE-14 Hydraulics helical in AISI 304/316 with integrated check valve.
• Maximum hydraulic efficiency approximately 61 %; max. immersion 150 m.

Advantages or Benefits

• Excellent daily performance with low PV power thanks to MPPT and the helical pump.
• Simple installation: complete system with protections and inputs for probes.
• Long service life and minimal maintenance due to its brushless motor and AISI 304/316 stainless steel.
• Reliable operation even with variable irradiation and frequent starts.
• Reduced total cost of ownership in medium flow and low head applications.

Purpose or Applications

Supply in isolated homes, livestock, tank filling, drip irrigation, and transfers with low-medium pressure requirements. Especially suitable when only small PV arrays are available (1–2 strings depending on panel).

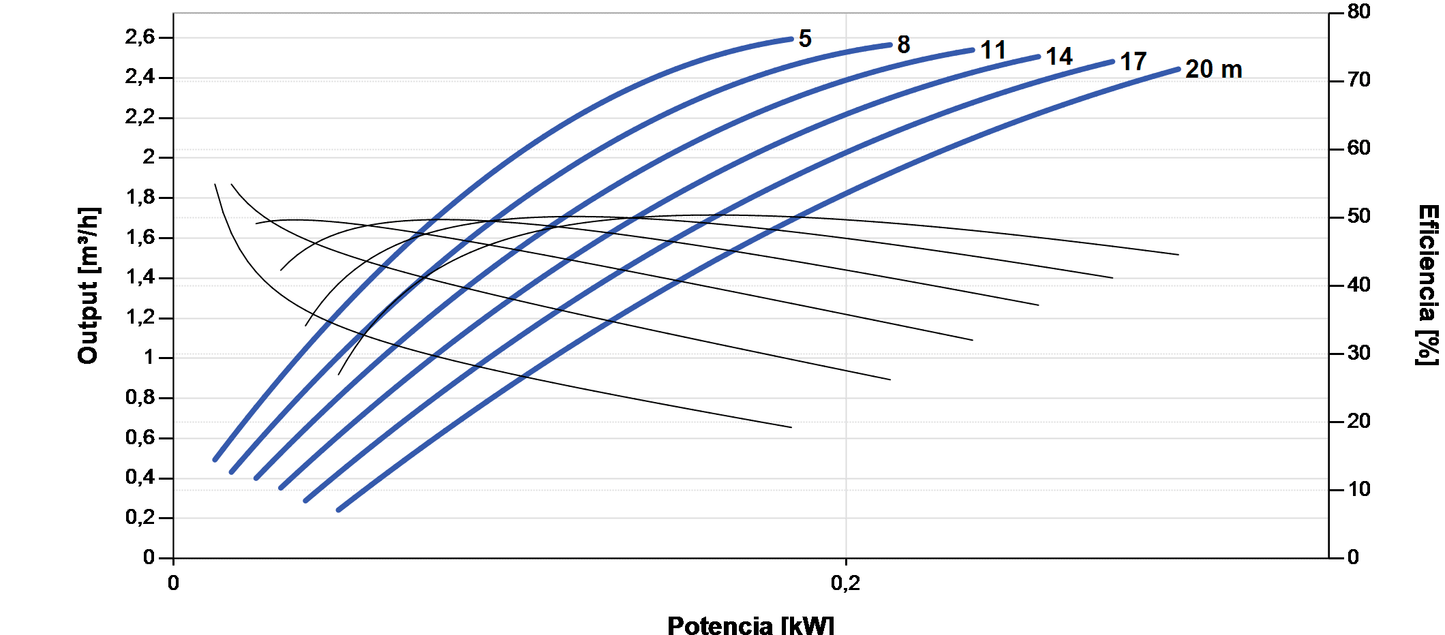

Technical Specifications

Compatibilities

Operates with photovoltaic arrays that meet Vmp > 34 V and the controller’s limits of 100 V / 0.30 kW. Integrable with well and tank sensors. Suitable for supply, irrigation, and transfer systems requiring the indicated flow/head.

The Lorentz PS2-200 HRE-14 Submersible Solar Pump delivers safe water with solar energy in installations where efficiency, simplicity, and reliability are prioritized.
