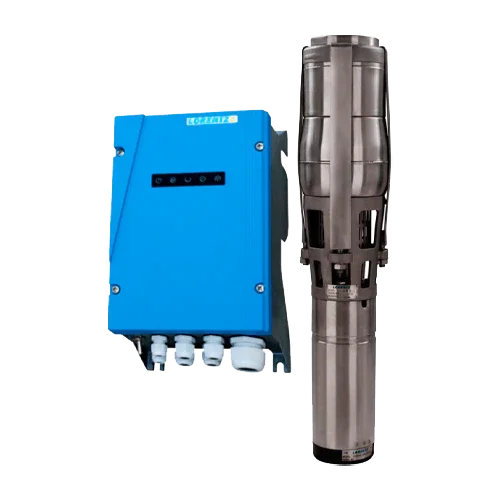

Lorentz PS2-4000 C-SJ60-1 Submersible Solar Pump 78 m³/h 10 m Centrifugal with Controller
Modelo: 04-000075 PS2-4000 C-SJ60-1- Sku: LOREBOM118
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-4000 C-SJ60-1 Submersible Solar Pump is a complete high-flow system for 6” wells, integrating the PS2-4000 controller with MPPT, ECDrive 4000-C motor, and C-SJ60-1 centrifugal hydraulics. With 78 m³/h and 10 m head, it offers high efficiency, great reliability, and intelligent photovoltaic energy management to move large volumes of water at the lowest operating cost.
Main Features
- PS2-4000 Controller with MPPT and Sun Sensor; inputs for dry well and remote control; protections against reverse polarity, overload, and temperature.
- PV Range: Optimal Vmp > 238 V; max. input voltage 375 Vdc; max. system power 4.0 kW; max. motor current 14 A.
- ECDrive 4000-C Motor brushless, water-filled, IP68, 900–3,300 rpm, max. efficiency 92%, immersion up to 150 m.
- C-SJ60-1 Hydraulics centrifugal with integrated NRV; hydraulic efficiency ≈53%.
- Ambient temperature −40…50 °C; electronics with max. efficiency ~98%.
Advantages or Benefits
- Extreme flow with low head for rapid tank filling, transfers, and gravity irrigation.
- 100% solar operation and low maintenance thanks to the brushless motor and Lorentz electronics.
- Comprehensive protections that increase service life and reduce downtime.
- Clean installation in 6” wells and easy integration with existing PV arrays.
Purpose or Applications
Ideal for agriculture with high flow demand, livestock, fish farms, transfers between reservoirs, and light industrial uses where volume is prioritized over pressure.
Technical Specifications
| Max. system power | 4.0 kW |

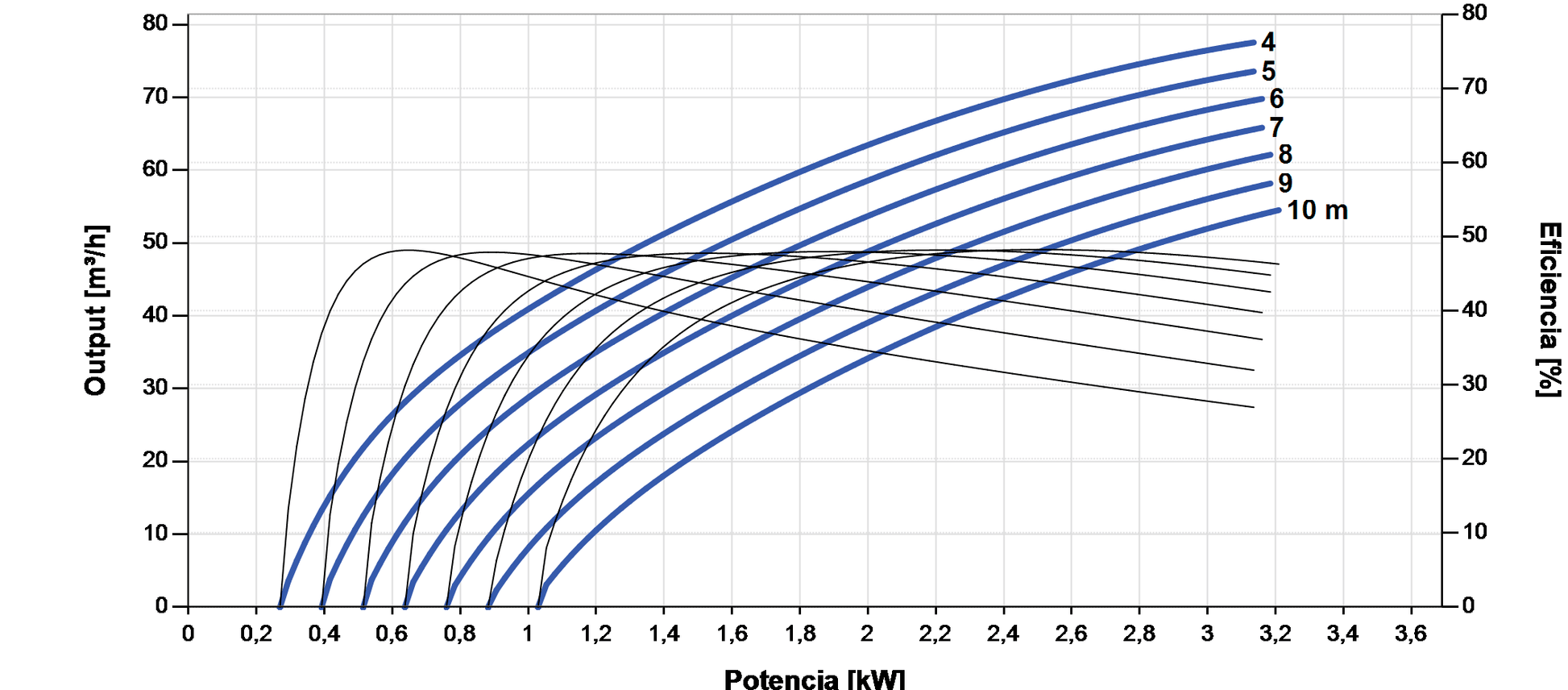

| Max. flow / head | 78 m³/h / 10 m |
| PV input | Optimal Vmp > 238 V; max. Voc 375 Vdc |
| Max. motor current | 14 A |
| MPPT / Sun Sensor | Integrated in the controller |
| Motor | ECDrive 4000-C, IP68, 900–3,300 rpm, immersion up to 150 m |
| Hydraulics | C-SJ60-1, centrifugal, integrated NRV, η ≈53% |
| Well | 6” (min. Ø 6”) |
| Temperatures | Ambient −40…50 °C; water up to 50 °C |
| Dimensions / weight | Controller 631×263×368×96×150 mm, 4.6 kg; pump unit 17 kg |
| Materials | Motor AISI 304/316; hydraulics AISI 304 |
Compatibilities
Operates with photovoltaic arrays whose total meets: total Vmp > 238 V and total Voc ≤ 375 Vdc, as well as suitable DC cabling and protections. Compatible with level sensors, dry well protection, and Lorentz remote control. Standard hydraulics and motor: PE C-SJ60-1 + ECDrive 4000-C.
Lorentz PS2-4000 C-SJ60-1 Submersible Solar Pump offers massive flow, intelligent control, and professional reliability for demanding solar pumping projects.
