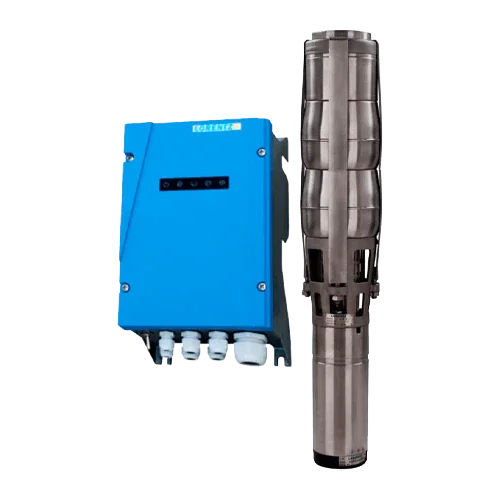

Lorentz PS2-4000 C-SJ60-2-2 Submersible Solar Pump 61 m³/h 16 m Centrifugal with Controller
Modelo: 04-000085 PS2-4000 C-SJ60-2-2- Sku: LOREBOM119
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-4000 C-SJ60-2-2 Submersible Solar Pump is a complete high-flow system for 6” wells, consisting of the PS2-4000 controller with MPPT, ECDrive 4000-C motor, and C-SJ60-2-2 centrifugal hydraulics. With a 61 m³/h maximum flow rate and 16 m head, it offers industrial reliability, outstanding efficiency, and intelligent management to maximize photovoltaic energy use.
Main Features
- PS2-4000 Controller with MPPT and Sun Sensor; inputs for dry well protection and remote control; protection against reverse polarity, overload, and temperature.
- PV Range with optimal Vmp > 238 V and maximum input voltage 375 Vdc.
- ECDrive 4000-C Motor brushless, water-filled, max. efficiency 92%, IP68, 900–3,300 rpm, immersion up to 150 m.
- C-SJ60-2-2 Hydraulics two-stage centrifugal, hydraulic efficiency up to ~60%, integrated non-return valve.
- System efficiency up to 98% in power electronics; robust design for −40…50 °C.
Advantages or Benefits
- Maximum flow with low head for gravity irrigation, ponds, water transfer, and livestock.
- 100% solar operation, autonomous and low maintenance thanks to the brushless motor and state-of-the-art electronics.
- Comprehensive protections that extend equipment lifespan and prevent downtime due to incidents.
- Clean installation in 6” wells, with easy integration into existing photovoltaic fields.
Purpose or Applications
Ideal for agricultural operations with high flow demand at low pressure, tank filling, pond recirculation, light industrial uses, and solar self-consumption pumping projects.
Technical Specifications
| Max. system power | 4.0 kW |

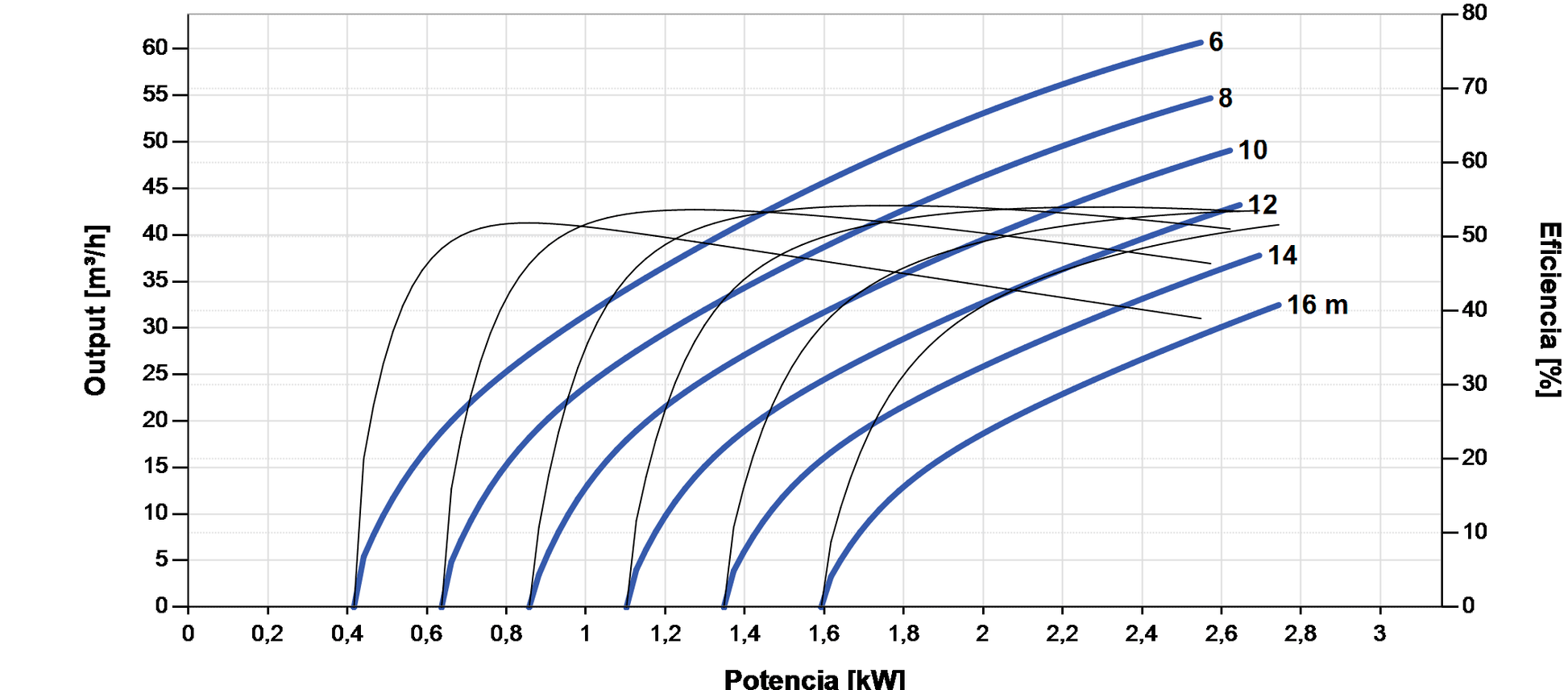

| Max. flow / head | 61 m³/h / 16 m |
| PV input | Optimal Vmp > 238 V; max. voltage 375 Vdc |
| Max. motor current | 14 A |
| MPPT / Sun Sensor | Integrated in the controller |
| Motor | ECDrive 4000-C, IP68, 900–3,300 rpm |
| Hydraulics | C-SJ60-2-2, two-stage centrifugal, integrated NRV |
| Well | 6” (min. Ø 6”) |
| Ambient temperature | −40…50 °C |
| Max. water temp. | 50 °C |
| Protection | IP68 (submersible assembly); multiple electronic protections |
| Dimensions / weight | Controller approx. 744×263×150 mm, 4.6 kg; pump unit 19 kg |
Compatibilities
Operates with photovoltaic fields whose total set meets: total Vmp > 238 V and total Voc ≤ 375 Vdc, and suitable DC wiring/protections. Compatible with Lorentz accessories such as level sensors, dry well protection, and remote control. Standard hydraulics and motor: C-SJ60-2-2 + ECDrive 4000-C.
Lorentz PS2-4000 C-SJ60-2-2 Submersible Solar Pump combines MPPT electronics, brushless motor, and high-flow centrifugal hydraulics for a robust, efficient, and professional solar pumping solution.
