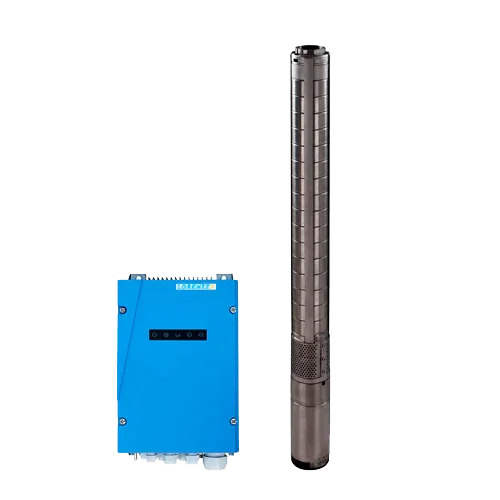

Lorentz PS2-4000 C-SJ8-15 Submersible Solar Pump 13m³/h 80m Centrifugal with Controller

Modelo: 04-000025 PS2-4000 C-SJ8-15

Sku: LOREBOM114
Vendor: Lorentz

€4.633,94 EUR

€3.707,15 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Lorentz PS2-4000 C-SJ8-15 Submersible Solar Pump with controller. Complete system with MPPT, brushless IP68 motor and 13 m³/h at 80 m for 4" wells.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Lorentz PS2-4000 C-SJ8-15 Submersible Solar Pump is an “all-in-one” photovoltaic pumping system for 4" boreholes that combines the PS2-4000 controller with MPPT, a brushless ECDRIVE 4000-C submersible motor, and PE C-SJ8-15 centrifugal hydraulics. With a performance of up to 13 m³/h and 80 m head, it offers an exceptional balance between pressure and flow for irrigation with multiple outlets, elevated tanks, and transfers with elevation difference, reducing operating and maintenance costs thanks to its control electronics and modular architecture.

Main Features

Max flow 13 m³/h and max head 80 m (4" wells).
PS2-4000 controller with MPPT and Sun Sensor; integrated protections.
PV generator: Aggregated Vmp > 238 V; max input voltage 375 V DC.
ECDRIVE 4000-C motor, 4.0 kW, IP68, water-lubricated; I_motor max. 14 A.
Efficiency: controller up to 98%, motor up to 92%; hydraulics ≈ 68%.
Max immersion 150 m; ambient T^ª −40…50 °C; AISI 304/316 materials.

Advantages or Benefits

System with integrated controller: quick and safe installation, no generators required.
Excellent pressure for sprinkler irrigation and elevated tanks.
MPPT maximizes PV field performance throughout the day.
Low maintenance: brushless motor and stainless components.
Simple automation with well probes, float switches, and dry-run protection.

Purpose or Applications

Ideal for agricultural irrigation at medium/high pressure, transfers with elevation difference, supply to elevated tanks, and internal networks on farms. Suitable for off-grid or hybrid installations with grid or generator support.

Technical Specifications

Model	PS2-4000 C-SJ8-15
Rated power (motor)	4.0 kW
PV generator (optimal)	Vmp > 238 V
Max PV voltage	375 V DC
Max motor current	14 A
Max flow / Head	13 m³/h / 80 m
Hydraulics	PE C-SJ8-15, centrifugal, non-return valve
Protection rating	IP68 (motor); controller suitable for outdoor use
Max immersion	150 m
Controller dimensions (W×H×D)	≈ 1136×263×873 mm
Reference weight	Controller ≈ 4.6 kg; pump unit ≈ 20 kg (motor ≈ 10 kg; hydraulics ≈ 10 kg)
Temperatures	Ambient −40…50 °C; water ≤ 50 °C
Minimum well diameter	4"

Compatibilities

Includes PS2-4000 controller. Size the PV field so that the total Voc ≤ 375 V DC and the aggregated Vmp > 238 V; the field Isc must be within the admissible range of the PS2-4000. Compatible with level/well probes, float switches, and C-SJ series accessories; related unit reference without controller: PU4000 C-SJ8-15.

The Lorentz PS2-4000 C-SJ8-15 Submersible Solar Pump offers pressure, efficiency, and reliability with solar energy for professional pumping projects in 4" wells.
