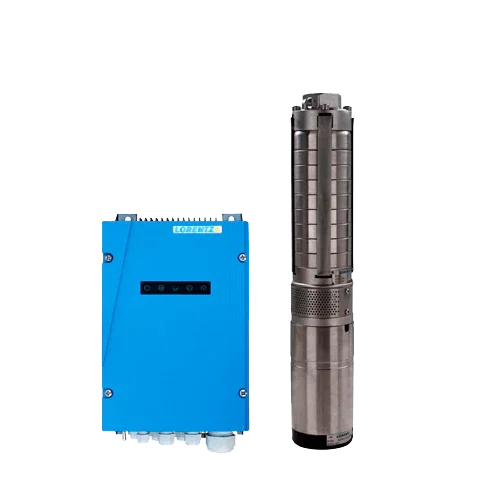

Lorentz PS2-600 C-SJ5-8 Submersible Solar Pump 6.5 m³/h 30 m centrifugal with controller
Modelo: 03-000002 PS2-600 C-SJ5-8- Sku: LOREBOM083
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PS2-600 C-SJ5-8 Submersible Solar Pump is an “all-in-one” photovoltaic pumping system that combines the PS2-600 controller with MPPT tracking, the ECDRIVE 600-C brushless submersible motor, and the centrifugal hydraulics PE C-SJ5-8. It provides up to 6.5 m³/h with 30 m head, offering high efficiency, automation, and reliability for irrigation, water transfer, and tank filling in off-grid or hybrid solar installations.
Main Features
- Reference performance: 6.5 m³/h and 30 m (4" wells).
- PS2-600 controller with MPPT, monitoring, and probe inputs.
- PV array: Aggregated Vmp > 68 V; maximum input voltage 150 V DC.
- ECDRIVE 600-C motor, 0.70 kW, IP68, maximum motor current 13 A.
- Reference efficiencies: controller up to 98 %, motor up to 92 %; hydraulics ≈ 55 %.
- Protections: reverse polarity, overload, temperature; silent and maintenance-free operation.
Advantages or Benefits
- Complete system with controller included: quick and safe installation.
- Optimized performance all day thanks to MPPT, with stable flow rate.
- Low maintenance: brushless motor and AISI 304/316 stainless steel materials.
- Simple automation with well probe, float switches, and dry-run protection.
- Lorentz modular architecture for fast service and available spare parts.
Purpose or Applications
Ideal for gravity or low/medium pressure irrigation, tank filling, and water transfer in agricultural and livestock operations. Perfect for 4" boreholes where medium flow and moderate head are required.
Technical Specifications
| Model | PS2-600 C-SJ5-8 |
| Max. system power | 0.70 kW |
| PV generator (optimal) | Vmp > 68 V |
| Max. PV voltage | 150 V DC |
| Max. motor current | 13 A |
| Flow rate / Head (ref.) | 6.5 m³/h / 30 m |
| Hydraulics | PE C-SJ5-8, centrifugal, non-return valve, 1.5” outlet |
| Motor | ECDRIVE 600-C, brushless, IP68, water-lubricated |
| Efficiency (ctrl./motor) | Up to 98 % / up to 92 % |
| Max. immersion | 150 m |
| Temperatures | Ambient −40…50 °C; water ≤ 50 °C |
| Controller dimensions (A×B×C) | 542×203×339 mm |
| Unit dimensions (A×B×C×D×E×S) | 352×333×207×170×164 mm; 1.5” outlet |
| Reference weights | Controller ≈ 4.1 kg; pump unit ≈ 11 kg (motor ≈ 7.0 kg; hydraulics ≈ 4.2 kg) |
| Minimum well diameter | 4" |
Compatibilities
Includes PS2-600 controller. Size the PV array so that the total Voc ≤ 150 V DC and the aggregated Vmp > 68 V; the Isc must be within the PS2-600 range. Compatible accessories: level probes, float switches, and protections from the PS2 range. Related units: PU600 C-SJ5-8 and PE C-SJ5-8 head.
The Lorentz PS2-600 C-SJ5-8 combines efficiency, automation, and reliability for professional submersible solar pump projects.
