Lorentz PS2-600 C-SJ8-5 Submersible Solar Pump 6.3 m³/h 20 m centrifugal with controller
Modelo: 03-000035 PS2-600 C-SJ8-5- Sku: LOREBOM084
- Vendor: Lorentz
Specifications
Product Description

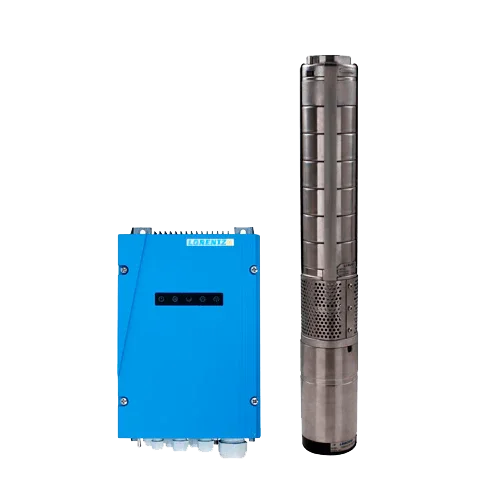

The Lorentz PS2-600 C-SJ8-5 Submersible Solar Pump is an “all-in-one” photovoltaic system consisting of the PS2-600 controller with MPPT, the ECDRIVE 600-C brushless submersible motor, and the PE C-SJ8-5 centrifugal hydraulics in AISI 304. It delivers up to 6.3 m³/h at 20 m (typical operating point), with high efficiency, automation, and reliability for irrigation, water transfer, and tank filling in off-grid or hybrid solar installations.
Main Features

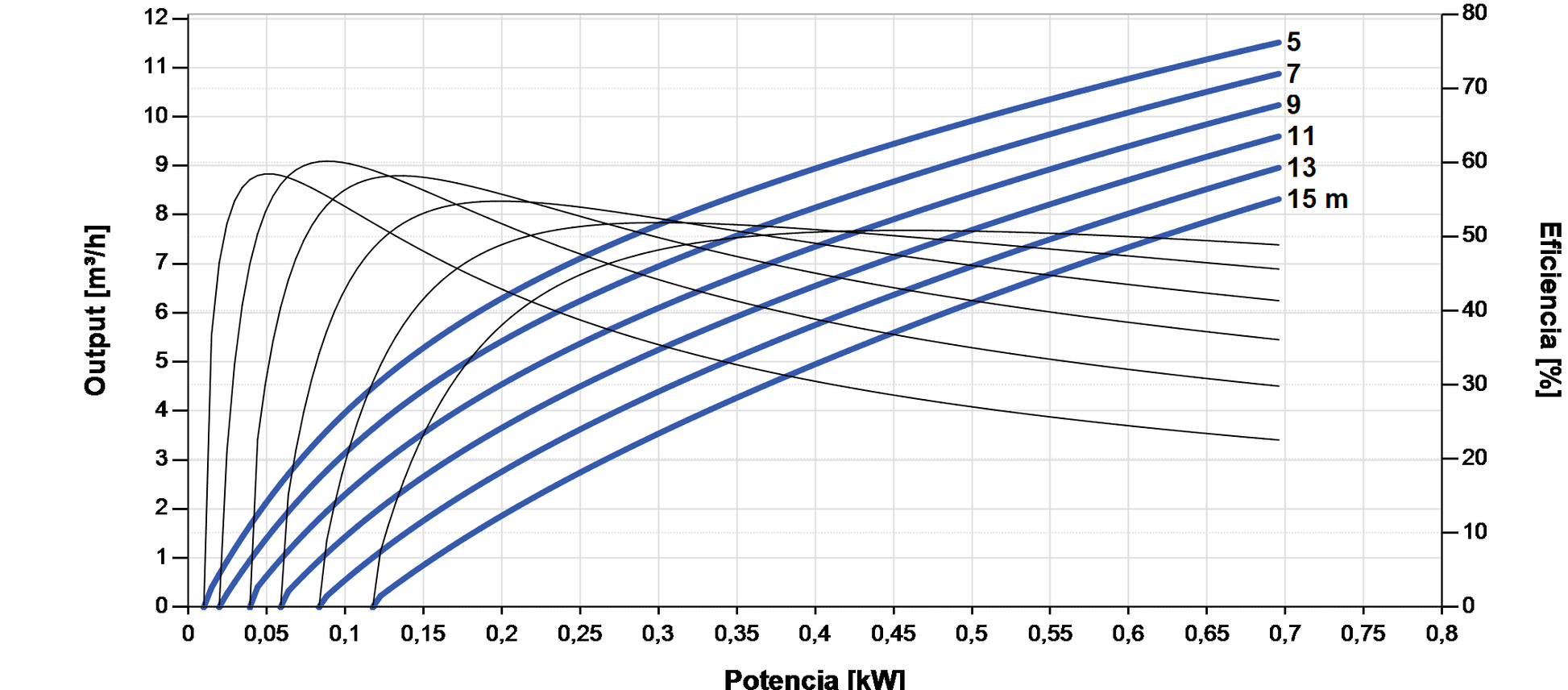

- Reference performance: 6.3 m³/h at 20 m; hydraulics with capacity up to 12 m³/h / 15 m.
- PS2-600 controller with integrated MPPT, monitoring, and probe inputs.
- PV generator: Aggregated Vmp > 68 V; max. input voltage 150 V DC.
- ECDRIVE 600-C motor, brushless, IP68; rated power 0.70 kW; Imotor max. 13 A.
- Max. efficiency: controller up to 98 %, motor up to 92 %. Max. immersion 150 m.
- Premium materials: AISI 304/316; ambient temperature −40…50 °C; water ≤ 50 °C.
Advantages or Benefits
- Ready-to-use set with controller and protections: quick and safe installation.
- MPPT maximizes available energy and stabilizes flow rate during the day.
- Low maintenance: brushless motor and no electronics in the motor.
- Simple automation with well probe, float switches, and shutdown for dry run/overtemperature.
Purpose or Applications
Ideal for gravity or low/medium pressure irrigation, tank filling, and water transfer in agricultural and livestock operations with 4" boreholes.
Technical Specifications
| Model | PS2-600 C-SJ8-5 |
| Max. system power | 0.70 kW |
| PV generator (optimal) | Vmp > 68 V |
| Max. PV voltage | 150 V DC |
| Max. motor current | 13 A |
| Flow rate / Head (typical) | 6.3 m³/h / 20 m |
| Hydraulics | PE C-SJ8-5 (12 m³/h / 15 m), check valve |
| Motor | ECDRIVE 600-C, brushless, IP68, water-lubricated |
| Efficiency (ctrl./motor) | Up to 98 % / up to 92 % |
| Controller dimensions (W×H×D) | 656×203×453 mm |
| Reference weights | Controller ≈ 4.1 kg; pump unit ≈ 13 kg (motor ≈ 7.0 kg; hydraulics ≈ 5.7 kg) |
| Max. immersion | 150 m |
| Temperatures | Ambient −40…50 °C; water ≤ 50 °C |
| Minimum well diameter | 4" |
Compatibilities
Includes PS2-600 controller. Compatible with standard level/well probes and float switches. Size the PV array so that the Total Voc ≤ 150 V DC and Aggregated Vmp > 68 V; the Isc must be within the PS2-600 range. Spare/direct alternative: PE C-SJ8-5 head and PU600 C-SJ8-5 unit.
The Lorentz PS2-600 C-SJ8-5 Submersible Solar Pump offers efficiency, protection, and reliability with solar energy in professional pumping projects.
