Lorentz PS2-600 HRE-03 0.5 m³/h 100 m Helical Submersible Solar Pump with Controller
Modelo: 03-010280 PS2-600 HRE-03- Sku: LOREBOM085
- Vendor: Lorentz
Specifications
Product Description

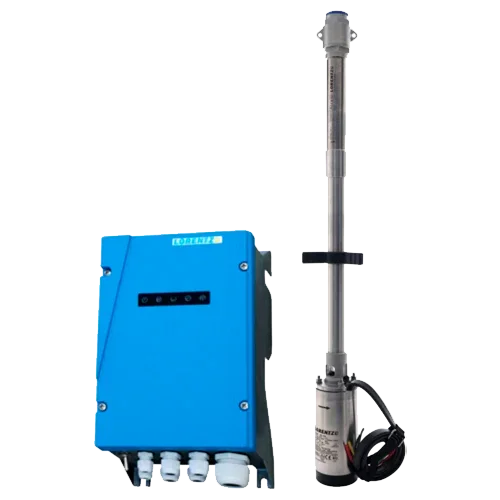

The Lorentz PS2-600 HRE-03 Submersible Solar Pump is a complete system for 4” wells that combines the PS2-600 controller with MPPT, a brushless ECDrive motor, and the HRE-03 helical head in AISI 304/316 stainless steel. Designed to prioritize pressure over flow rate, it delivers up to 0.5 m³/h and reaches 100 m of lift with extremely high reliability, low consumption, and minimal maintenance.
Main Features
- Reference head up to 100 m with flow rate 0.5 m³/h.
- PS2-600 controller with MPPT that optimizes PV energy and protects the system.
- Submersible brushless ECDrive motor, IP68, maintenance-free.
- HRE-03 helical hydraulics with non-return valve; AISI 304/316 construction.
- Inputs for dry well protection and tank control; safe and stable operation.
Advantages or Benefits
- Superior efficiency due to MPPT tracking and brushless motor: fewer panels for the same work.
- Long service life and very low operating cost thanks to robust and stainless design.
- Greater hydraulic safety by reducing water hammer and column emptying.
- Lorentz modular architecture with widely available spare parts and technical support.
Purpose or Applications
Supply for off-grid homes, mid-level tanks, livestock, and drip irrigation on slopes where a significant water column with contained flow and solar energy is required.
Technical Specifications
| Reference head / Flow rate | 100 m / 0.5 m³/h |
| Controller | PS2-600 with MPPT and integrated protections |
| Motor | ECDrive series 600, brushless, IP68 |
| Hydraulics | PE HRE-03 helical with non-return valve |
| Materials | AISI 304/316 stainless steel |
| Well diameter | ≥ 4” |
| Water temperature | ≤ 50 °C (typical) |
| Protection rating | IP68 (submersible unit) |
Compatibilities
Supports photovoltaic arrays that comply with the controller’s electrical limits (Voc/Isc and MPPT window). Compatible with dry well sensors, tank probes, DC protections, submersible cable, and column piping. Not limited to panel brands; size according to electrical parameters.
The Lorentz PS2-600 HRE-03 Submersible Solar Pump offers a compact, efficient, and robust solution for solar pumping in deep wells.
