Lorentz PS2-600 HRE-03H 0.5 m³/h 120 m Helical Submersible Solar Pump with Controller
Modelo: 03-010290 PS2-600 HRE-03H- Sku: LOREBOM086
- Vendor: Lorentz
Specifications
Product Description

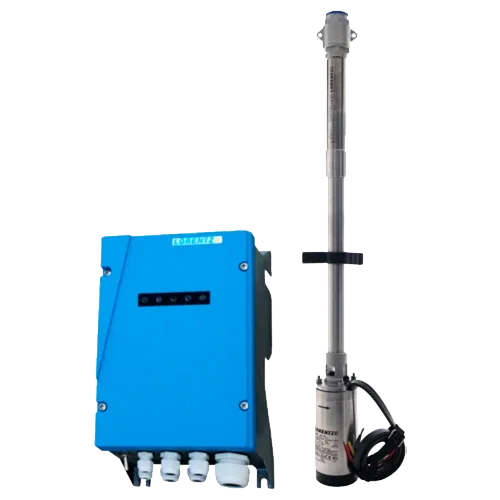

The Lorentz PS2-600 HRE-03H Submersible Solar Pump is a compact system for 4” wells that prioritizes pressure over flow rate. It combines the PS2-600 controller with MPPT tracking, a brushless ECDrive motor, and HRE-03H helical hydraulics made of AISI 304/316 stainless steel with an integrated check valve. It delivers up to 0.5 m³/h and reaches 120 m of head, offering reliability, low maintenance, and excellent utilization of photovoltaic energy in applications requiring a high water column.
Main Features
- Reference head up to 120 m with a flow rate of 0.5 m³/h (high lift with moderate consumption).
- PS2-600 controller with MPPT: optimizes PV production and protects the system.
- Submersible ECDrive motor, brushless, IP68, maintenance-free.
- HRE-03H helical hydraulics in AISI 304/316 with integrated check valve.
- Inputs for dry well protection and tank control; stable operation in demanding environments.
Advantages or Benefits
- Superior efficiency thanks to MPPT and brushless motor: smaller PV array for the same work.
- Very low operating cost and long service life due to its robust, brushless design.
- Hydraulic safety: the integrated valve reduces water hammer and protects the column.
- Lorentz modular architecture with widely available spare parts and technical support.
Purpose or Applications
Designed for domestic supply, elevated tanks, livestock, and drip irrigation on slopes, when significant head is required with limited flow rates and maximum solar efficiency.
Technical Specifications
| Reference Head / Flow Rate | Up to 120 m / 0.5 m³/h |
| Controller | PS2-600 with MPPT and integrated protections |
| Motor | ECDrive series 600, brushless, IP68 |
| Hydraulics | PE HRE-03H helical with check valve |
| Materials | AISI 304/316 stainless steel |
| Well Diameter | ≥ 4” |
| Water Temperature | ≤ 50 °C (typical) |
| Protection Rating | IP68 (submersible unit) |
Compatibilities
Supports photovoltaic arrays from various brands as long as they meet the controller’s electrical limits (input voltage/current and MPPT window). Compatible with standard accessories: dry well and tank probes, DC protections, submersible cable, and riser pipe.
The Lorentz PS2-600 HRE-03H Submersible Solar Pump is the efficient and robust solution for solar pumping projects that require high manometric head with contained consumption.
