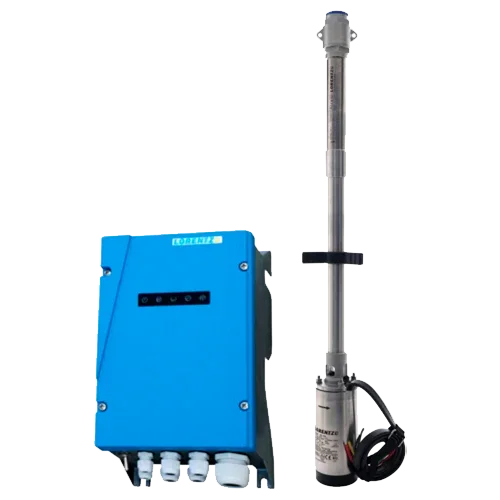

Lorentz PS2-600 HRE-04 0.73 m³/h 90 m Helical Submersible Solar Pump with Controller
Modelo: 03-010300 PS2-600 HRE-04- Sku: LOREBOM087
- Vendor: Lorentz
Specifications
Product description
The Lorentz PS2-600 HRE-04 Submersible Solar Pump is a compact and efficient system for solar pumping in 4” wells. It incorporates the PS2-600 controller with MPPT tracking, brushless ECDrive motor, and HRE-04 helical hydraulic head made of AISI 304/316 stainless steel with check valve. It delivers a reference flow rate of 0.73 m³/h and reaches up to 90 m manometric head, providing reliability, low maintenance, and excellent energy performance.
Main features
- Reference pumping head up to 90 m with a flow rate of 0.73 m³/h.
- PS2-600 controller with MPPT: optimizes PV production and protects the system.
- Submersible ECDrive motor, brushless, IP68, maintenance-free.
- HRE-04 helical hydraulics in AISI 304/316 with integrated check valve.
- Inputs for dry well protection and tank control; stable operation in demanding environments.
Advantages or benefits
- Superior energy efficiency and smaller PV field size thanks to MPPT.
- Long service life and minimal operating costs due to its brushless motor and robust design.
- Hydraulic safety: the integrated valve reduces water hammer and protects the column.
- Modular Lorentz architecture with wide availability of spare parts and technical service.
Purpose or applications
Supply for isolated homes, elevated tanks, livestock, and drip irrigation on slopes, where height is prioritized with moderate flow rates and solar energy.
Technical specifications
| Reference head / flow rate | Up to 90 m / 0.73 m³/h |
| Controller | PS2-600 with MPPT and integrated protections |
| Motor | ECDrive 600 series, brushless, IP68 |
| Hydraulics | PE HRE-04 helical with non-return valve |
| Materials in contact | AISI 304/316 stainless steel |
| Well diameter | ≥ 4” |
| Water temperature | ≤ 50 °C (typical) |
| Degree of protection | IP68 (submersible unit) |
Compatibilities
Supports photovoltaic arrays within the controller's electrical limits (input voltage/current and MPPT window). Compatible with standard Lorentz accessories: dry well and tank probes, DC protections, submersible cable, and piping. Not limited to panel brands; size according to electrical parameters.
The Lorentz PS2-600 HRE-04 Submersible Solar Pump combines efficiency, intelligent control, and reliability for solar pumping projects in deep wells.
