Lorentz PS2-600 HRE-07 1.3m³/h 90m Helical Submersible Solar Pump with Controller

Product Description

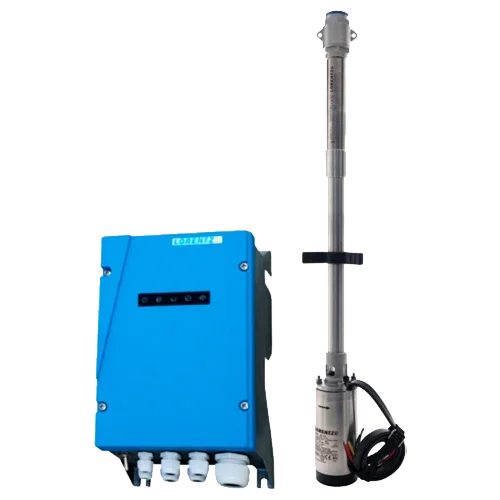

The Lorentz PS2-600 HRE-07 1.3 m³/h 90 m Helical Submersible Solar Pump with Controller is a ready-to-use professional solution that integrates the PS2-600 MPPT controller, the ECDrive 600-HRE brushless motor, and the HRE-07 helical hydraulic body. This set is optimized for extracting water from 4” wells with high flow stability and elevated pressure up to 90 m, while maintaining very low energy consumption. The brushless motor design, use of AISI 304/316 stainless steel materials, and IP68 protection ensure reliability and low maintenance in demanding solar pumping installations.

Main Features

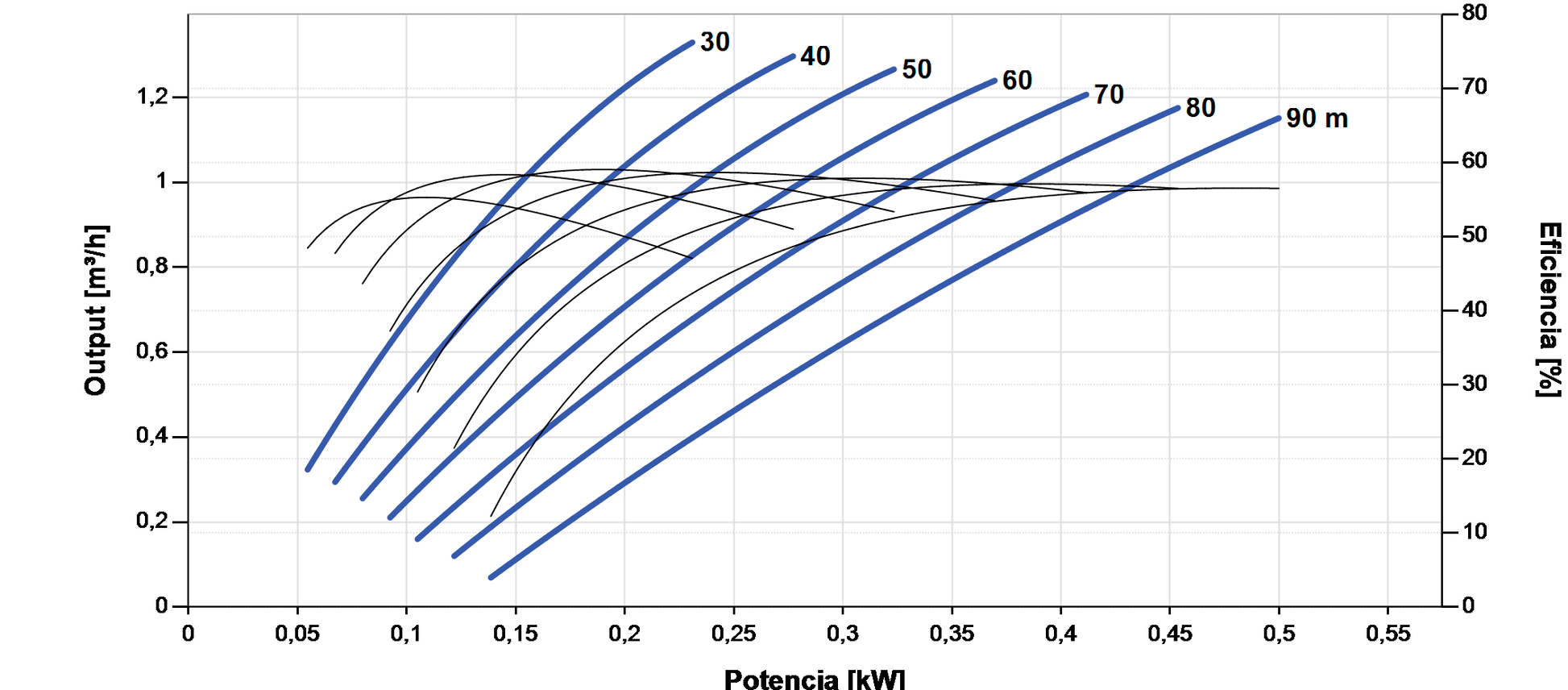

• Flow rate/head: 1.3 m³/h with a maximum head of 90 m, ideal for irrigation and elevated tanks.
• PS2-600 Controller with MPPT: optimizes solar energy, soft starts, and intelligent management.
• PV input: max. power 0.70 kW; max. input voltage 150 V; Optimal Vmp > 68 V.
• ECDrive 600-HRE Motor brushless, high efficiency, quiet and sealed, with IP68.
• HRE-07 Hydraulics helical in AISI 304/316 with integrated check valve; max. efficiency ~70%.
• Typical immersion up to 150 m (depending on installation) and reliable operation in clean water up to 50 °C.

Advantages or Benefits

• More water per watt: the MPPT extracts the maximum from the photovoltaic array and the helical hydraulics perform under variable irradiation.
• Simple installation and automation: inputs for well probe, full tank, and remote control.
• Low maintenance: brushless motor and stainless materials reduce downtime and costs.
• Professional reliability: IP68 in the submersible unit and electrical protections in the controller.
• Scalability: easy to adapt the system for future PV generator expansions.

Purpose or Applications

Domestic supply in isolated homes, livestock, filling elevated tanks, drip or light sprinkler irrigation, and pressurized transfers on sloped properties. Very suitable when a solar pump of 1.3 m³/h with high head and moderate power consumption is required.

Technical Specifications

Compatibilities

Compatible with photovoltaic arrays that meet Vmp > 68 V and the controller limits (≤ 150 V / ≤ 0.70 kW). Integrates well and tank level sensors, and supports external control signal. Can be part of irrigation systems, elevated tanks, and small pressurized distribution loops.

The Lorentz PS2-600 HRE-07 1.3 m³/h 90 m Submersible Solar Pump combines intelligent control, brushless motor, and helical hydraulics to ensure more daily water with solar energy and maximum reliability.
