Lorentz PS2-600 HRE-10 2.0 m³/h 80 m helical submersible solar pump with controller
Modelo: 03-010330 PS2-600 HRE-10- Sku: LOREBOM090
- Vendor: Lorentz
Specifications
Product Description

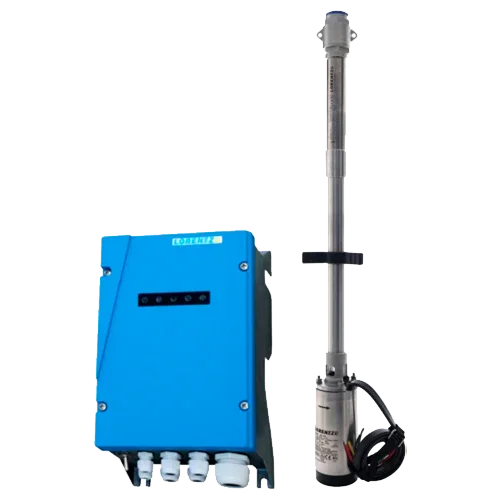

The Lorentz PS2-600 HRE-10 2.0 m³/h 80 m helical submersible solar pump with controller is a professional, ready-to-use solution for solar pumping installations. It combines the PS2-600 MPPT controller, the ECDrive 600-HRE brushless motor, and the HRE-10 helical hydraulic body in AISI 304/316 stainless steel, achieving up to 2.0 m³/h with 80 m head. Its architecture is optimized for photovoltaics, with IP68 protection and integrated probes, making this equipment a reliable choice to obtain more water each day with minimal energy consumption.
Main Features
- Flow/Head: up to 2.0 m³/h and 80 m in 4” wells.
- PS2-600 Controller with MPPT, inputs for well probe, full tank, and remote control.
- PV Input: max. power 0.70 kW; max. input voltage 150 V; Optimal Vmp > 68 V.
- ECDrive 600-HRE Motor brushless, high efficiency, sealed and IP68 (immersion up to 150 m).
- HRE-10 Hydraulics helical with max. efficiency ~67% and integrated check valve.
- Premium AISI 304/316 materials for maximum durability and corrosion resistance.
Advantages or Benefits
- More water with the same PV array thanks to MPPT tracking and efficient helical hydraulics.
- Safe installation and operation: integrated protections and inputs for automation with probes.
- Low operating cost due to its brushless motor, minimal maintenance, and high overall efficiency.
- Proven reliability: Lorentz design for remote environments and continuous daily operation.
- Control flexibility: possibility to operate by level, by tank, with timer, or external signal.
Purpose or Applications
Recommended for supplying isolated homes, elevated tanks, drip or light sprinkler irrigation, and livestock when high pressures are needed with flows close to 2 m³/h. Excellent performance with variable irradiation in autonomous photovoltaic systems.
Technical Specifications
| Maximum flow | 2.0 m³/h |
| Maximum head | 80 m |
| Controller | PS2-600 with MPPT and interfaces for probes/remote |
| Maximum PV power | 0.70 kW |
| Max. input voltage | 150 V DC |
| Optimal Vmp | > 68 V |
| Motor | ECDrive 600-HRE, brushless, IP68; max. immersion 150 m |
| Hydraulics | PE HRE-10 helical, AISI 304/316, check valve |
| Hydraulic efficiency | Up to ~67% (optimal point) |
| Well diameter | ≥ 4” |
| Water temperature | ≤ 50 °C (clean water) |
| Protection rating | IP68 (submersible unit) |
Compatibilities
Operates with photovoltaic arrays that meet Vmp > 68 V and the controller limits (≤150 V, ≤0.70 kW). Integrable with level sensors (well/tank), pressure switches, or external controls. Suitable for supply and irrigation systems where the indicated flow and head requirements are met.
The Lorentz PS2-600 HRE-10 2.0 m³/h 80 m combines intelligent control, hydraulic efficiency, and premium construction to ensure daily water supply with solar energy and maximum reliability.
