Lorentz PU150 C-SJ5-4 Solar Submersible Pump 6.1 m³/h 12m Centrifugal
Modelo: 10-000411 PU150 C-SJ5-4, Rp 1 1/2", UL- Sku: LOREBOM025
- Vendor: Lorentz
Specifications
Product Description

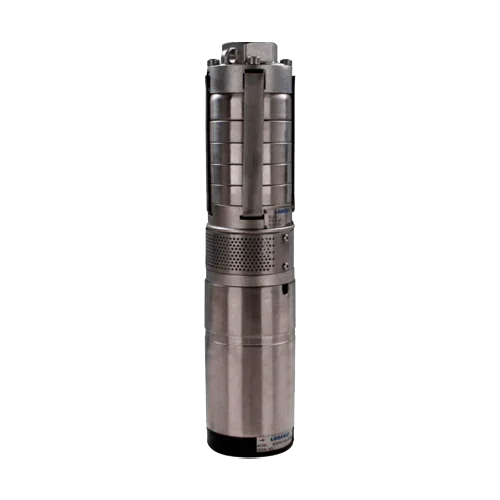

The Lorentz PU150 C-SJ5-4 Solar Submersible Pump is a compact 4” well unit that integrates the ECDRIVE motor and the C-SJ5-4 centrifugal hydraulic in stainless steel. It is designed to work with the Lorentz PS2 series controller (not included), offering a maximum flow rate of 6.1 m³/h and a head of up to 12 m with high efficiency and low maintenance. It is the ideal choice when you already have a controller or want to configure the system to your specifications.
Main Features
- Pump Unit with brushless ECDRIVE 150-C motor and PE C-SJ5-4 head.
- No controller included; prepared to operate with Lorentz PS2-150 controller.
- Hydraulic performance: 6.1 m³/h maximum flow and 12 m maximum head.
- Construction in stainless steel AISI 304 and integrated check valve.
- Protection rating of the submersible assembly IP68; silent operation and maintenance-free.
- Specifically designed for clean water in 4” wells, tanks, and transfers.
Advantages or Benefits
- Configuration flexibility: combine this unit with the PS2-150 controller you already have or that best suits your PV field.
- High reliability in continuous use thanks to the brushless motor and optimized centrifugal hydraulics.
- Quick installation due to its compact format and original Lorentz components.
- Minimal operating cost: high efficiency and virtually no periodic maintenance.
Purpose or Applications
Water supply in off-grid homes, tank filling, gravity irrigation, livestock, and transfers. Ideal for new photovoltaic installations or to renew only the submersible part while keeping the existing controller.
Technical Specifications
| Type | Submersible pump unit (PU) for solar system |
| Controller | Not included (PS2-150 recommended) |
| Motor | ECDRIVE 150-C, brushless, water-filled, IP68 |
| Motor power | ≈ 0.30 kW |
| Hydraulic | PE C-SJ5-4, centrifugal, AISI 304, check valve |
| Max. flow / head | 6.1 m³/h / 12 m |
| Max. current to motor | Up to 22 A (supplied by the controller) |
| Ambient temperature | −40…50 °C (reference range) |
| Max. immersion | Up to 150 m |
| Materials in contact | Stainless steel AISI 304 |

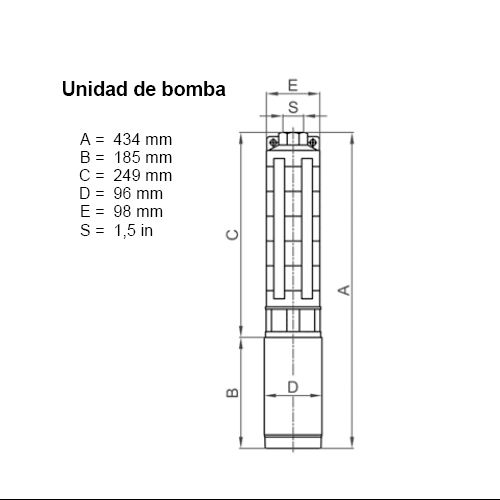

| Approx. dimensions | Compact format for 4” well |
| Approx. weight | ≈ 10 kg (motor ≈ 7 kg + hydraulic ≈ 3 kg) |
Compatibilities
Direct compatibility with Lorentz PS2-150 Controller and with the PE C-SJ5-4 hydraulic (included in this unit). Recommended accessories: dry well probes (via the controller), valves, and standard 4” discharge accessories.
The Lorentz PU150 C-SJ5-4 Solar Submersible Pump offers a clear value proposition: a robust and efficient submersible unit ready to integrate with your PS2 controller, maximizing the reliability and performance of solar pumping.
