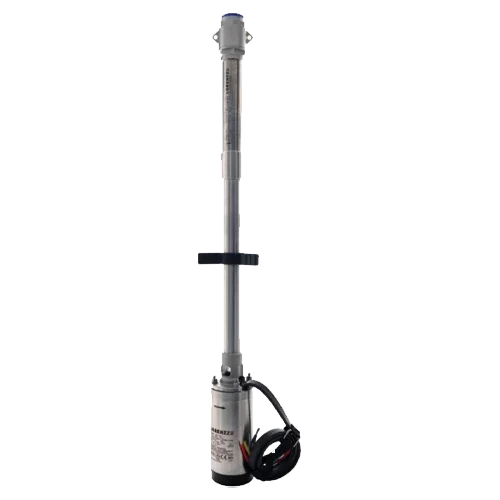

Lorentz PU1800 HRE-03 Submersible Solar Pump 0.43 m³/h 120 m Helicoidal
Modelo: 10-017440 PU1800 HRE-03-3, Rp1 1/4", UL- Sku: LOREBOM050
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PU1800 HRE-03 Submersible Solar Pump is a professional unit (Pump Unit) designed to achieve great height with moderate flow rates. It integrates the brushless ECDrive 1800-HRE motor and the HRE-03 helical hydraulics in AISI 304/316 with a non-return valve. It provides a reference flow rate of 0.43 m³/h and reaches 120 m of lift, ideal for 4” wells with long pipelines and elevated tanks. As a PU version, it includes pump + motor, but does not include controller.
Main Features
- Reference flow rate 0.43 m³/h and lift up to 120 m.
- ECDrive 1800-HRE motor (~1.7 kW), brushless, IP68, maintenance-free.
- HRE-03 helical head with integrated non-return valve; AISI 304/316 materials.
- Lorentz modular design with official spare parts and full compatibility with PS2 controllers.
Advantages or Benefits
- High water column with optimized solar consumption and very low operating cost.
- Long service life thanks to mechanical simplicity and stainless materials.
- Installation protection: the integrated valve reduces water hammer and emptying.
- Simple installation and service due to its modular architecture.
Purpose or Applications
Water extraction in deep wells, tanks at medium/high elevation, drip irrigation, and livestock in remote areas where pressure/height is prioritized over flow rate.
Technical Specifications
| Lift / Reference Flow Rate | 120 m / 0.43 m³/h |
| Hydraulic Type | Helical (HRE-03) with non-return valve |
| Motor | ECDrive 1800-HRE, ≈1.7 kW, 900–3,300 rpm, IP68 |
| Materials | AISI 304/316 stainless steel |
| Well Diameter | ≥ 4” |
| Water Temperature | ≤ 50 °C (typical) |
| Maximum Submersion | Up to 150 m (depending on installation) |
| Protection Rating | IP68 (submersible unit) |
Compatibilities
Requires a compatible Lorentz controller (typically PS2-1800) and a PV array sized according to the controller’s limits (Voc/Isc and MPPT window). Recommended accessories: dry well probe, tank sensor, DC protections, submersible cable, and column piping/valves.
The Lorentz PU1800 HRE-03 Submersible Solar Pump is synonymous with high lift, efficiency, and reliability for professional solar pumping projects.
