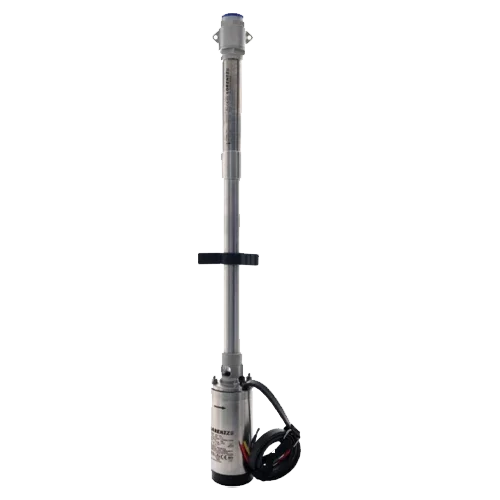

Lorentz PU200 HRE-07 Solar Submersible Pump 1.3 m³/h 40m Helicoidal
Modelo: 10-016640 PU200 HRE-07-3, Rp 1 1/4", UL- Sku: LOREBOM029
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PU200 HRE-07 1.3 m³/h 40 m Solar Submersible Pump is a modular pump unit (PU) that combines the ECDrive 200-HRE brushless motor with the HRE-07 helical hydraulics. Designed for 4” wells, it offers a flow rate of 1.3 m³/h and up to 40 m head with outstanding efficiency and minimal maintenance. Its AISI 304/316 stainless steel construction and IP68 protection ensure long-term reliability in supply and irrigation applications with low photovoltaic power. As a PU version, controller not included, allowing you to choose the most suitable control electronics (Lorentz PS2-200 with MPPT recommended).
Main Features
- Flow/Head: 1.3 m³/h with up to 40 m lift.
- ECDrive 200-HRE Motor: brushless, high efficiency, silent, and sealed IP68.
- HRE-07 Hydraulics: helical (screw) design with integrated non-return valve.
- Premium materials: critical components in AISI 304/316 stainless steel.
- Modular architecture: choose/replace the controller without changing the pump unit.
- Typical immersion up to 150 m (depending on cabling and installation conditions).
Advantages or Benefits
- Efficiency with low PV power: ideal when the solar generator is compact.
- Low operating cost: brushless motor and stainless materials reduce maintenance.
- Hydraulic safety: the integrated valve prevents backflow and water hammer.
- Flexibility: integration with controllers of your choice and automation by probes.
- Reliability: IP68 for continuous operation in remote environments and clean water.
Purpose or Applications
Supply for isolated homes, tank filling, livestock watering, and drip/light sprinkler irrigation where up to 40 m head is required with a flow rate of ~1.3 m³/h. Perfect for 4” wells and projects with limited budget or space for panels.
Technical Specifications
| Type | Submersible pump unit (PU) |
| Hydraulics | PE HRE-07 helical, integrated non-return valve |
| Maximum flow | 1.3 m³/h |
| Maximum head | 40 m |
| Motor | ECDrive 200-HRE, brushless, high efficiency |
| Materials | AISI 304/316 in key components |
| Well diameter | ≥ 4” |
| Protection rating | IP68 (submersible unit) |
| Typical maximum immersion | Up to 150 m (depending on installation) |
| Water temperature | ≤ 50 °C (clean water, no solids) |
| Controller | Not included |
Compatibilities
Direct compatibility recommended with Lorentz PS2-200 controller or other suitable electronics for ECDrive motors, respecting the electrical limits defined by the controller and the sizing of the PV array. Supports integration with well and tank level probes, pressure switches, and remote control depending on the controller used.
The Lorentz PU200 HRE-07 1.3 m³/h 40 m offers a clear value proposition: modularity, efficiency, and robustness to provide daily water with solar energy in moderate pressure applications.
