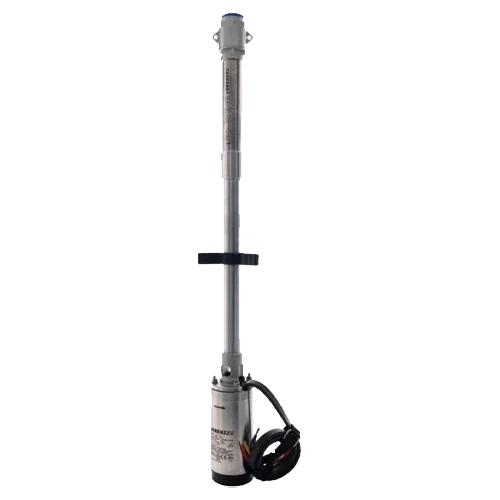

Lorentz PU4000 HRE-05HHL Submersible Solar Pump 0.92 m³/h 450 m

Product Description

The Lorentz PU4000 HRE-05HHL Submersible Solar Pump is a pump unit (Pump Unit) designed for high-pressure applications in 4” wells. It combines the 4.0 kW, sealed, IP68 ECDRIVE 4000-HRE motor with the PE HRE-05HHL helical head, made of AISI 304/316 stainless steel and equipped with a non-return valve. This version is supplied without controller, allowing integration with an existing PS2-4000 or the design of a custom system according to the available photovoltaic array. Together with the appropriate controller, it achieves up to 0.92 m³/h and 450 m, providing a robust, efficient, and virtually maintenance-free solution for projects that prioritize head over flow rate.

Main Features

• Submersible unit with ECDRIVE 4000-HRE brushless, water-filled motor, IP68, and no electronics in the motor.
• PE HRE-05HHL helical head in AISI 304/316 with integrated non-return valve as standard.
• Performance of the set (with PS2-4000): 0.92 m³/h and 450 m maximum head.
• Lorentz modular architecture for independent component replacement and fast service.
• Silent operation and maintenance-free thanks to sealed brushless technology.

Advantages or Benefits

• Total flexibility: renew only the submersible part or create a custom high-pressure system with PS2-4000.
• Minimal operating cost due to the combination of brushless motor and stainless steel materials.
• Hydraulic safety thanks to the integrated check valve, which prevents backflow and water hammer.
• Stable performance with high heads even in variable irradiance scenarios.

Purpose or Applications

Deep wells, very high tanks, long-distance transfers, pressurized irrigation on steep terrain, and light industrial projects where extreme pressure is required with solar energy.

Technical Specifications

Compatibilities

Direct compatibility with Lorentz PS2-4000 Controller and standard 1.25” discharge accessories. Through the PS2, it supports connection of dry well probes, float switches, and remote control integration. For the PV generator, size strings to comply with the PS2-4000 window (Vmp/Voc and Isc within limits).

The Lorentz PU4000 HRE-05HHL is the ideal modular option for achieving high heads with solar energy, combining maximum reliability, efficiency, and adaptation to your project requirements.
