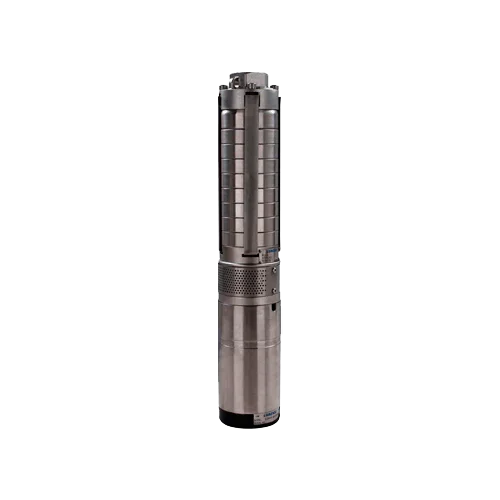

Lorentz PU600 C-SJ5-8 Solar Submersible Pump 6.5 m³/h 30m Centrifugal
Modelo: 10-001021 PU600 C-SJ5-8, Rp 1 1/2", UL- Sku: LOREBOM033
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PU600 C-SJ5-8 Submersible Solar Pump is a high-performance pump unit for medium flow and moderate head applications in 4" boreholes. It incorporates the PE C-SJ5-8 centrifugal head in AISI 304 stainless steel with a check valve and a ECDRIVE 600-C brushless submersible motor, IP68 and water-lubricated. With performance up to 6.5 m³/h and 30 m, this PU version integrates with Lorentz controllers to provide MPPT, protections, and automation via probes.
Main Features
- Maximum flow 6.5 m³/h and maximum head 30 m (4" wells).
- PE C-SJ5-8 centrifugal hydraulics with check valve; 1.5” outlet.
- ECDRIVE 600-C brushless motor, IP68, nominal power ≈ 0.70 kW; low maintenance.
- Contact materials in AISI 304 stainless steel for maximum durability.
- Lorentz modular architecture: original spare parts and fast service.
- Silent operation and high efficiency, ideal for photovoltaic systems.
Advantages or Benefits
- High flow with moderate head for quickly filling ponds and tanks.
- Extended service life: brushless motor and stainless components.
- Integrated check valve that protects the installation against backflow.
- Scalable: by adding a Lorentz controller, MPPT and automatic level control are obtained.
- Perfect as a replacement pump unit in existing systems or as a base for a new system.
Purpose or Applications
Recommended for gravity or low/medium pressure irrigation, transfers between tanks, watering troughs, and supply in agricultural and livestock farms. Optimal when medium flow with moderate consumption is required in 4" wells.
Technical Specifications
| Model | Lorentz PU600 C-SJ5-8 |
| Type | Pump unit (PU) without controller |
| Hydraulics | Centrifugal PE C-SJ5-8, AISI 304, check valve, 1.5” outlet |
| Max. flow / head | 6.5 m³/h / 30 m |
| Motor | ECDRIVE 600-C, brushless, IP68, water-lubricated |
| Nominal motor power | ≈ 0.70 kW |
| Minimum well diameter | 4" |
| Water temperature | ≤ 50 °C (clean water) |
| Maximum immersion | Up to 150 m (depending on installation) |
Compatibilities
This unit does not include a controller. It is compatible with Lorentz PS2-600 controllers (add MPPT, protections, and inputs for well probe and float switches). Size the PV generator according to the PS2-600 limits (for example, aggregate Vmp > 68 V and total Voc ≤ 150 V DC). Use accessories and spare parts from the C-SJ series and ECDRIVE motors.
The Lorentz PU600 C-SJ5-8 offers stable flow, efficiency, and reliability for building professional submersible solar pump systems.
