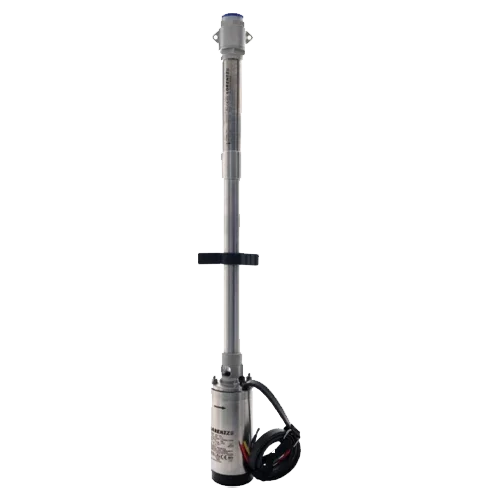

Lorentz PU600 HRE-07 Solar Submersible Pump 1.3 m³/h 90m Helicoidal
Modelo: 10-016740 PU600 HRE-07-3, Rp 1 1/4", UL- Sku: LOREBOM039
- Vendor: Lorentz
Specifications
Product Description
The Lorentz PU600 HRE-07 1.3 m³/h 90 m Solar Submersible Pump is a modular pump unit that combines the brushless ECDrive 600-HRE motor with the helical hydraulics HRE-07 in AISI 304/316 stainless steel. It delivers up to 1.3 m³/h with 90 m head in 4” wells. As a PU version, controller not included, allowing you to choose the most suitable electronics (PS2-600 with MPPT recommended) to optimize energy, protections, and automation.
Main Features
- Flow/Head: 1.3 m³/h and 90 m for high pressures with medium-sized PV generators.
- ECDrive 600-HRE brushless motor, sealed, IP68, low maintenance.
- HRE-07 helical hydraulics with integrated check valve, high efficiency.
- Critical components in AISI 304/316 for high corrosion resistance.
- Modular architecture that facilitates future expansions or controller replacements.
- Typical immersion up to 150 m (depending on installation and cabling).
Advantages or Benefits
- Optimizes budget by allowing selection/control of electronics according to available PV array.
- More water with less energy thanks to the brushless motor + helical hydraulics duo.
- High reliability and service life due to IP68 and stainless steel materials.
- Safe installation: the integrated valve prevents backflow and water hammer.
- Quiet and designed for daily operation in remote environments.
Purpose or Applications
Residential supply, elevated tanks, drip/sprinkler irrigation and livestock, when up to 90 m head with ~1.3 m³/h flow is needed and a modular, efficient solution is sought.
Technical Specifications
| Type | Submersible pump unit (PU) |
| Hydraulics | PE HRE-07 helical, integrated check valve |
| Max. flow | 1.3 m³/h |
| Max. head | 90 m |
| Motor | ECDrive 600-HRE, brushless |
| Materials | AISI 304/316 stainless steel |
| Borehole diameter | ≥ 4” |
| Protection rating | IP68 (submersible unit) |
| Typical max. immersion | Up to 150 m (depending on installation) |
| Water temperature | ≤ 50 °C (clean water) |
| Controller | Not included |
Compatibilities
Direct compatibility recommended with Lorentz PS2-600 controller or other electronics for ECDrive motors that respect the controller’s electrical limits and PV array sizing. Integrable with level probes, pressure switches, and remote control.
The Lorentz PU600 HRE-07 1.3 m³/h 90 m combines modularity, efficiency, and reliability for professional solar pumping with high pressure and optimized consumption.
