Shurflo 9325-083-101 Solar Submersible Pump 24V 443 l/h 70m
Modelo: 9325-083-101- Sku: SHURBOM021
- Vendor: Shurflo
Specifications
Product Description

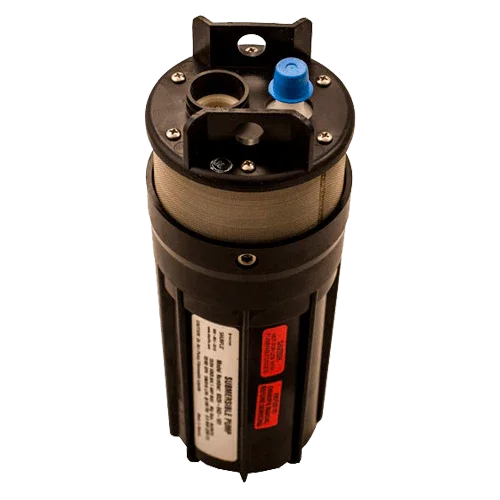

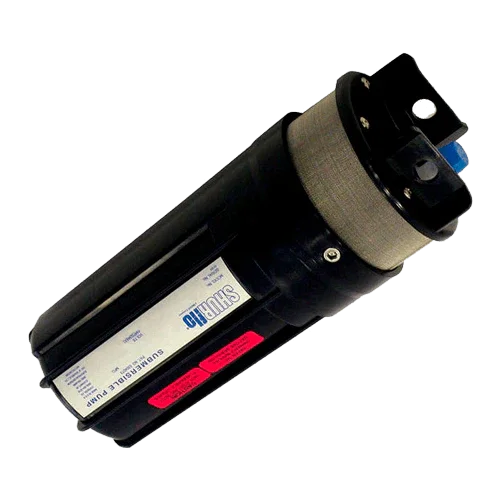

The Shurflo 9325-083-101 24V 443 l/h 70 m Solar Submersible Pump is a positive displacement diaphragm pump (3 chambers) designed to supply tanks from narrow wells with an internal diameter of 4" or more. It operates directly at 24 VDC, with low consumption (≈1.5–4.1 A depending on head) and an internal bypass 105–110 PSI that protects the hydraulics against accidental line closures. Thanks to its lightweight design (≈2.7 kg), stainless steel fastenings, and mesh filter inlets, it offers a long service life in solar potable water pumping with minimal maintenance. To maximize performance with PV panels, it can work together with an LCB optimizer that acts as a maximum power point tracker.
Main Features
- Powered by 24 VDC with permanent magnet motor and thermal protection.
- Maximum head 70 m; typical flow rate 443 l/h at 6 m; 310 l/h at 70 m.
- Bypass 105–110 PSI to protect against overpressure.
- Minimum well diameter: 4"; recommended maximum immersion: 30 m.
- Top outlet 1/2" (barb/thread depending on version) and water inlet with stainless steel screen.
- Lightweight and field-repairable construction: valve, gasket, and housing kits available.
Advantages or Benefits
- High solar efficiency: low consumption and possibility of MPPT optimization with LCB.

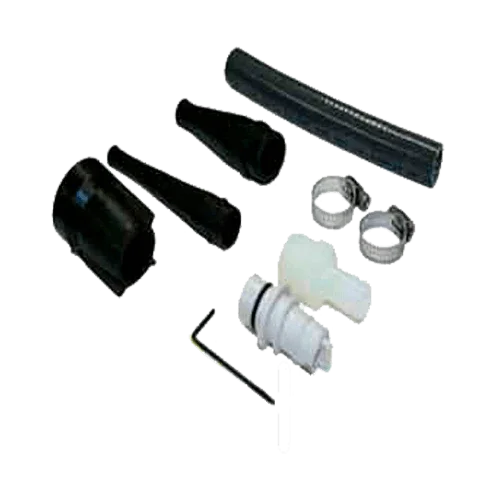

- Simple installation in narrow wells, with insulated 12 AWG cable and safety rope.
- Reliability in service: internal bypass, durable materials, and ability for occasional dry running.
- Safe potable water when pumping to a tank (not a direct pressurization pump).
- Minimal maintenance and spare parts available to extend service life.
Purpose or Applications
Tank supply in off-grid homes, irrigation, ponds, and potable water storage from small-diameter wells. Especially suitable for 24 V photovoltaic systems with 1–2 solar panels and control via optimizer.
Technical Specifications
| Model | Shurflo 9325-083-101 (9300 Series) |
| Nominal voltage | 24 VDC |
| Flow rate | 443 l/h at 6 m · 432 l/h at 12 m · 413 l/h at 18 m · 310 l/h at 70 m |
| Maximum head | 70 m |
| Internal bypass | 105–110 PSI |
| Minimum well diameter | 4" (≈ 102 mm) |
| Maximum immersion | 30 m |
| Outlet | 1/2" (to tank; does not pressurize closed line) |
| Materials | Technical plastics · stainless steel fastenings · stainless steel screen |
| Typical consumption | ≈ 1.5–4.1 A depending on head and PV power |
| Weight | ≈ 2.7 kg |
Compatibilities
Compatible with LCB-G75 optimizers (12/24 V, with well probes) and LCB-G0 (24 V). Requires 1–2 solar panels depending on head and target flow rate. Use 1/2" piping, insulated 12 AWG cable, safety rope, and clean inlet filter. Do not install a shut-off valve or accumulator on the direct discharge to the tank.
The Shurflo 9325-083-101 Solar Submersible Pump is the reliable solution for delivering potable water from narrow wells to tanks using solar energy, combining efficiency, robustness, and easy maintenance.
