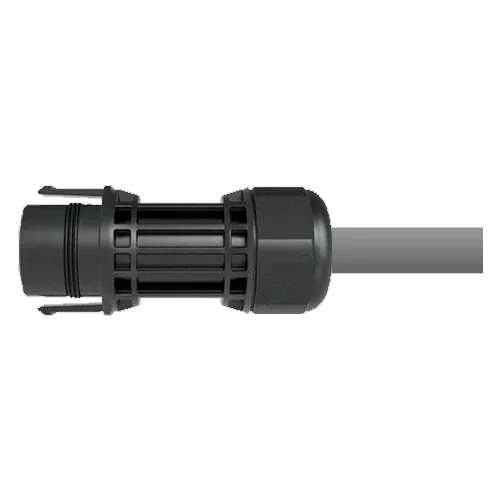

Final AC Cable Male 0.5m Solax AC End Cable-M-500

Product description

The Solax AC End Cable-M-500 Male AC End Cable 0.5 m is a plug & play accessory designed to connect the end of a SolaX microinverter line directly to the electrical grid. With a factory-assembled male AC Trunk connector and 0.5 m H07RN-F cable, it provides a watertight, reliable, and ready-to-use solution, eliminating the need to crimp or handle connectors. It is the fastest and most professional way to complete a photovoltaic installation with SolaX microinverters.

Main features

• Preassembled AC Trunk-M (male) connector with IP68 protection
• Length: 0.5 m with H07RN-F 3G1.5 mm² cable
• Rated voltage: 250 V AC / Current: 12 A
• Cable diameter: 10.1 ± 0.3 mm
• Insulation material resistant to moisture and UV rays
• Operating temperature: from −40 °C to +85 °C

Advantages or benefits

• Allows proper closure of the AC line for microinverters
• Prevents wiring errors by being fully assembled and sealed
• Saves installation time with no need for additional tools
• Certified and safe for outdoor use (IP68)
• Compatible with distribution systems using AC Trunk cable

Purpose or applications

This cable is used to connect the last microinverter or the end of the AC trunk cable directly to the grid, distribution board, or injection point. It is ideal for residential or commercial solar installations with SolaX microinverters, providing a clean, professional, and code-compliant closure of the AC line.

Technical specifications

Compatibilities

This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.

Final AC Male Cable 0.5 m Solax is the perfect option to complete your solar installation with microinverters in a safe, fast, and professional manner.
