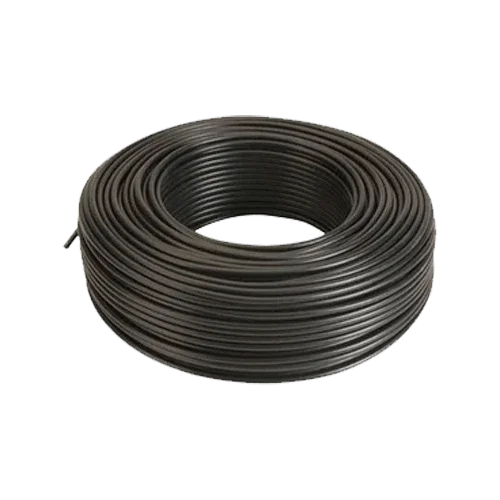

Solar Cable PV1-F Black 1x6mm² 50m 1500V DC
Modelo: Negro 1x6mm² 50m- Sku: REVICAB012
- Vendor: Revi
Specifications
Product Description
The Solar Cable PV1-F Black 1x6mm² 50m 1500V DC is designed for DC wiring in photovoltaic installations that require medium continuous runs and high reliability. It complies with the PV1-F standard (TÜV 2 PfG 1169/08.2007 or equivalent), uses class 5 tinned copper conductor for maximum flexibility and anti-corrosion protection, and a halogen-free insulation/sheath combination with excellent resistance to UV rays, ozone, and atmospheric agents. With a service voltage of 1.5 kV DC, it is suitable for strings in 1000/1500 V systems and supports 0.6/1 kV in AC for auxiliary runs.
Main Features
- Service voltage: 1.5 kV DC (max. 1.8 kV DC) and 0.6/1 kV AC.
- Conductor: class 5 tinned copper, cross-section 1×6 mm².
- HFFR compounds: halogen-free, low smoke emission.
- Thermal range: −40…+90 °C ambient; up to +120 °C in conductor.
- High resistance to UV, ozone, humidity, and abrasion.
- Recommended bending radius ≥ 15×Ø.
Advantages or Benefits
- 50 m format: lays medium runs without splices, reducing failure points.
- Balance between voltage drop, manageability, and cost in 6 mm².
- Tinned conductor for demanding environments (coastal, industrial).
- Fire safety: flame retardant and low smoke toxicity.
- Long service life outdoors thanks to its high UV/ozone resistance.
Purpose or Applications
Connection of photovoltaic modules, string parallels, downleads to combiner boxes, and DC connections to inverters in residential, commercial, solar pumping, and mini-plant systems.
Technical Specifications
| Type / Standard | PV1-F · TÜV 2 PfG 1169/08.2007 (or equivalent) |
| Service voltage | 1.5 kV DC (max. 1.8 kV DC) · 0.6/1 kV AC |
| Cross-section | 1×6 mm² |
| Conductor | Class 5 tinned copper |
| Approx. outer Ø | 6.1–6.5 mm |
| Bending radius | ≥ 15×Ø |
| Temperature | Ambient −40…+90 °C · Conductor up to +120 °C |
| Conductor resistance (20 °C) | ≈ 3.3 Ω/km |
| Dielectric test | 6.5 kV AC · 15 kV DC |
| Materials | Halogen-free HFFR, low smoke emission |
| UV/Ozone resistance | High, suitable for continuous outdoor use |
| Color | Black |
| Presentation | 50 m roll |
Compatibilities
Fully compatible with MC4 and equivalent connectors, DC string boxes, and PV inverter inputs with 1500 V DC bus. Suitable for positive/negative polarity. Does not include connectors or terminals.
Solar Cable PV1-F Black 1x6mm² 50m 1500V DC provides a clean, safe, and durable layout for the DC wiring of your photovoltaic installation, optimizing assembly time and reliability.
