Housing with Pressure Switch Shurflo 94-231-20 Series 2088
Modelo: 94-231-20- Sku: SHURREP009
- Vendor: Shurflo
Specifications
Product Description

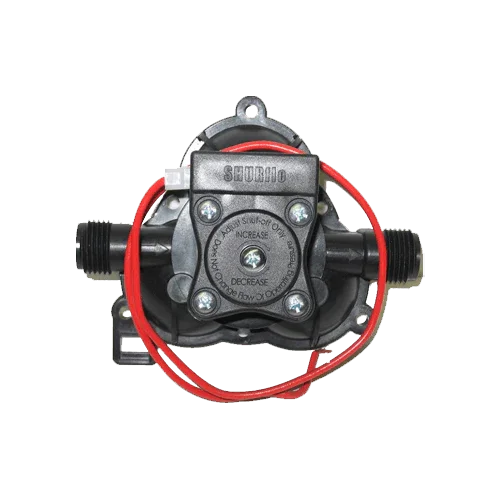

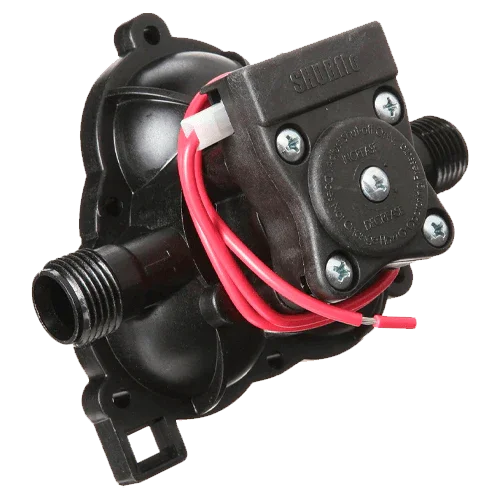

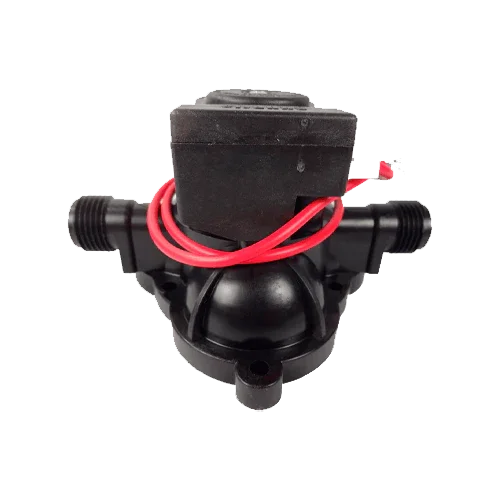

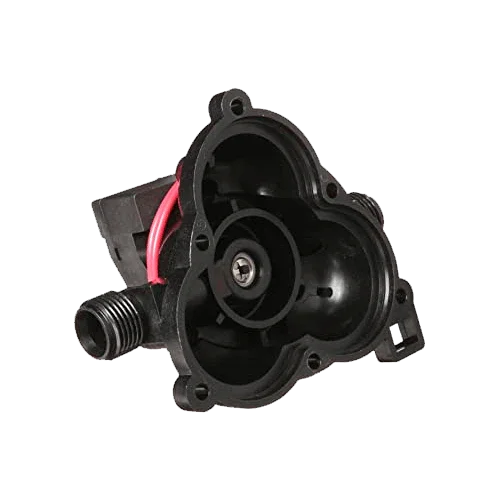

The Shurflo 94-231-20 Housing with Pressure Switch is the complete head assembly with integrated pressure switch for Shurflo 2088 series diaphragm pumps. It replaces both the front head body and the pressure switch in a single operation, restoring the pump’s start/stop control and circuit sealing. This is the preferred option when the body is fatigued or cracked and, in addition, the pressure switch shows burnt contacts or unstable hysteresis. With this OEM replacement, the factory pressure feel is restored, abnormal cycles are reduced, and the motor is protected against overpressure.
Main Features
- OEM reference 94-231-20: direct compatibility with 2088 models using a head with pressure switch.
- 2-in-1 assembly: head body + pre-installed pressure switch for quick installation.
- Precision hydraulic seats and passages: reliable sealing and low pressure loss.
- Calibrated pressure switch: automatic cut-off and reset with stable hysteresis.
- Technical plastic material resistant to pressure and common chemicals.
- Plug & play: reduces workshop time and avoids complex electrical adjustments.
Advantages or Benefits
- Efficient repair: a single intervention restores sealing and pressure control.
- Stable performance: continuous flow, without “sawtooth” or pressure switch hunting.
- Longer service life: less strain on the motor and diaphragm due to internal leaks or erratic cycles.
- Safety: prevents overpressure and prolonged water hammer.
- Cost savings: reduces labor and downtime compared to piece-by-piece repairs.
Purpose or Applications
Suitable for motorhomes, boats, homes, light irrigation, reverse osmosis, and light industrial uses employing Shurflo 2088 pumps with pressure control. Ideal when there are cracks in the body, leaks in the head area, or cut-off/start failures.
Technical Specifications
| Reference | 94-231-20 |
| Type | Housing/head assembly with integrated pressure switch |
| Compatibility | Shurflo 2088 series pumps |
| Function | Head sealing and automatic pressure control (cut-off and reset) |

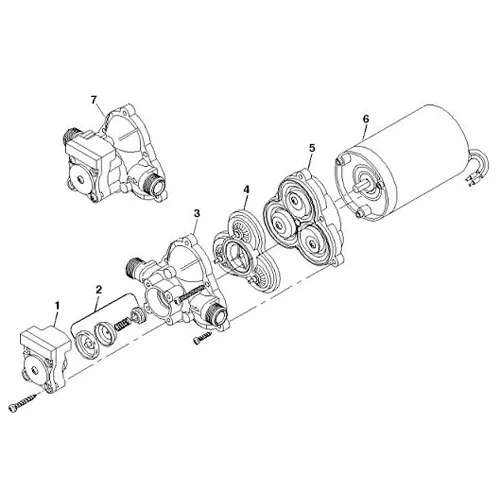

| Location in exploded view | Equivalent to the head assembly with pressure switch (front assembly part) |
| Material | High-strength technical plastic suitable for drinking water |
| Installation | Direct mounting; electrically connect the pressure switch and screw onto the body |
| Associated elements | Valve kit 94-232-00, diaphragm with eccentric and lower housing 94-238-03 |
Compatibilities
For 2088 series pumps that use a head with pressure switch. If your model uses a head without a pressure switch, use the housing 94-231-30 and, if necessary, the pressure switch 94-230-35 separately.
With the Shurflo 94-231-20 Housing with Pressure Switch you renew the critical head area and pressure control in one step, achieving a reliable, quiet 2088 pump with original performance.
