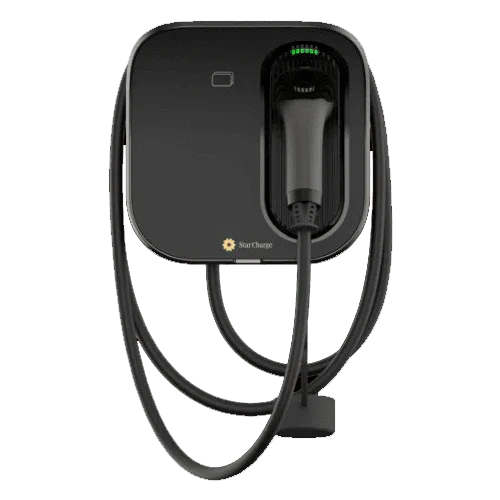

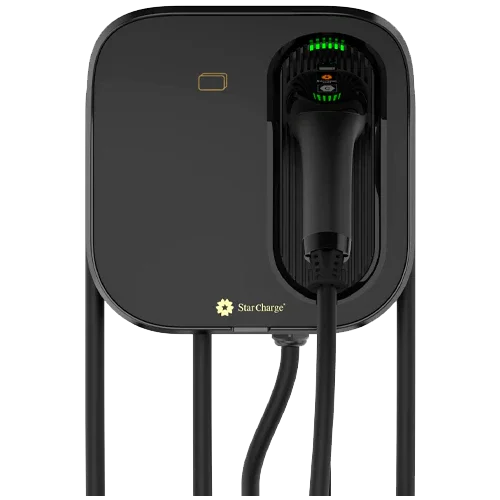

VE Star Charge Artemis Basic 11kW Three-phase Charger Type 2 Cable 5m
Modelo: Artemis Basic 11kW Trifásico Type 2 Cable 5m- Sku: STARCAR002
- Vendor: Star Charge
Specifications
Product Description
The VE Star Charge Artemis Basic 11kW Three-phase Charger Type 2 Cable 5m provides power and reliability for homes and businesses with a three-phase grid. Its electronics integrate a DC 6 mA residual current device and a comprehensive protection system, while the IP65 and IK10 enclosure ensures outdoor resistance. Thanks to RS485 communication, it can coordinate with inverters and storage systems (via accessories), optimizing charging with solar energy.
Main Features
- Rated power: 11 kW (16 A max. three-phase) and single-phase mode 3.7 kW (16 A) if required.
- Output connector: Type 2 with fixed 5 m cable.
- Integrated protection: DC 6 mA residual current device plus overcurrent, overvoltage, undervoltage, overtemperature, earth fault, and surge protection.
- Protection rating: IP65 and IK10 for intensive outdoor use.
- User interface with status LED, RFID (ISO/IEC 14443 A), and optional emergency button.
Advantages or Benefits
- Fast and stable charging in 400 V three-phase installations.
- Advanced safety with DC residual current detection and electronic protections.
- Robust construction for demanding climates, ideal for parking lots and open garages.
- Integration with energy management via RS485 to prioritize self-consumption.
- Simple user experience: present card, connect, and charge.
Purpose or Applications
Perfect for homes with three-phase supply, small businesses, residential communities, and users seeking to reduce charging times with 11 kW while maintaining a compact and reliable unit.
Technical Specifications
| Charging mode | Mode 3 (IEC 61851-1) |
| Output power / current | 11 kW max., 16 A three-phase; option 3.7 kW, 16 A single-phase |
| Nominal input voltage | 400 V AC ±10 % 50/60 Hz (L1+L2+L3+N+PE) and 230 V AC ±10 % single-phase |
| Earthing system | TN-S, TN-C-S, TT |
| Charging interface | 1 x Type 2 connector (box C) |
| Measurement | Integrated measurement chip, accuracy ±1 % |
| Internal RCD | DC 6 mA |
| Protections | Overcurrent, overvoltage, undervoltage, residual current, overtemperature, earth fault, surges |
| User interface | Status LED; emergency stop button (optional) |
| Authentication | Contactless RFID card; ISO/IEC 14443 A reader |
| Communication | RS485; no Bluetooth; no back-end |
| Communication with EV | Control pilot |
| Operating temperature | -30 °C to +50 °C |
| Humidity | 5–95 % non-condensing |
| Altitude | ≤3000 m a.s.l. |
| IP / IK rating | IP65 / IK10 |
| Included cable | 5 m |
| Dimensions (WxHxD) | 280×280×148 mm (post: 100×210×50 mm) |
| Weight | Approx. 4.0 kg (including cable) |
| Installation | Wall mounting (optional post) |
| Standards and certifications | IEC 61851-1, IEC 62955, IEC 61851-21-2, CE-RED, CB, RoHS 2.0, REACH |
Compatibilities
RS485 interface for connection with inverters and storage systems (requires optional manufacturer accessories). Contactless RFID card authentication. No internal links included.
VE Star Charge Artemis Basic 11kW Three-phase Charger Type 2 Cable 5m combines power, safety, and robustness to charge your electric vehicle with maximum reliability.
