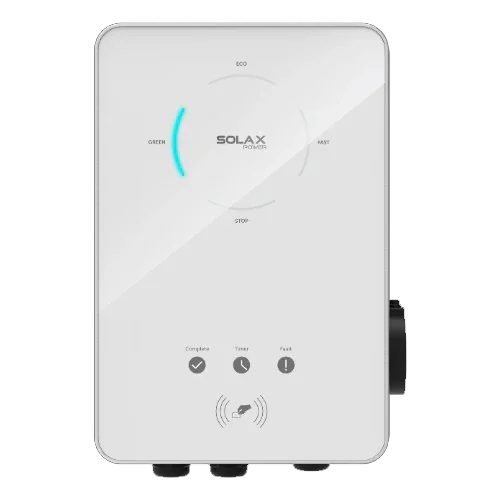

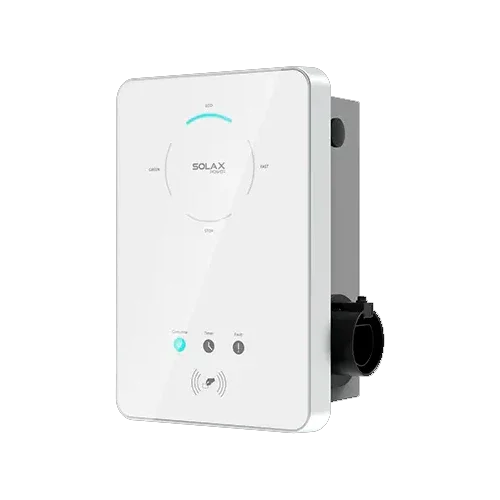

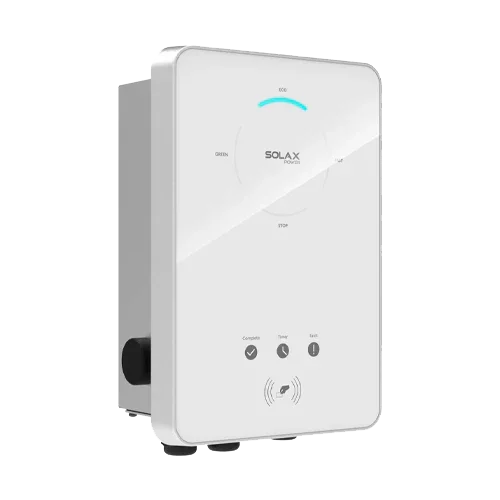

Solax X1-EVC7.2K 7.2kW Single-Phase Electric Vehicle Charger
Modelo: X1-EVC7.2K- Sku: SOLXCAR001
- Vendor: Solax
Specifications
Product Description
The Solax X1-EVC7.2K 7.2kW Single-Phase Electric Vehicle Charger is an intelligent wallbox designed to maximize the performance of your SolaX photovoltaic installation. With native communication with the inverter, it can prioritize charging with solar surplus, reduce costs during off-peak hours, and provide a simple user experience thanks to its display, WiFi connectivity, and RFID cards. Its IP65 enclosure allows installation both indoors and outdoors, and the integrated PEN protection eliminates the need for an additional earth rod, enabling quick and safe installation.
Main Features
- Single-phase output power: 7.2 kW (230 V, 32 A).
- Photovoltaic integration: direct communication with SolaX inverter for surplus charging.
- Connectivity: WiFi 2.4 GHz, RS485, and RFID for user control.
- Advanced safety: Internal RCD 30 mA AC + 6 mA DC, over/undervoltage, overtemperature, and short circuit.
- PEN protection without earth rod and TLS encryption for communications.
- Intelligent management: dynamic load balancing control with CT clamps and scheduling.
Advantages or Benefits
- Real savings: use 100% of available solar energy to charge your EV and reduce costs during off-peak periods.
- Simplified installation: IP65, socket option (Type S) or cable with connector (Type P), and integrated PEN protection.
- Certified safety: integrated RCD 30 mA AC + 6 mA DC and multiple electronic protections.
- Total control: APP/web to monitor, configure power, schedule charging times, and manage users via RFID.
- Future compatibility: optional OCPP 1.6 (JSON) for integration with platforms and backends.
Purpose or Applications
Perfect for homes with photovoltaic self-consumption, private parking, and small businesses wishing to charge an electric vehicle while optimizing solar surplus. Suitable for garage, façade, or outdoor post installation thanks to its IP65 protection rating and IK08 resistance.
Technical Specifications
| Model | X1-EVC7.2K (single-phase) |
| Power / voltage / current | 7.2 kW / 230 V / 32 A |
| Connectivity | WiFi 2.4 GHz, RS485; APP and web portal |
| Identification | Integrated RFID (cards) |
| Protocols | Optional OCPP 1.6 (JSON); TLS encryption |
| Protections | RCD 30 mA AC + 6 mA DC; overcurrent, over/undervoltage, overtemperature, short circuit, earth |
| PEN protection | Integrated (no earth rod) |
| Degree / impact | IP65 / IK08 |
| Charging method | Type P (cable with connector) or Type S (socket); cable approx. 6.5 m (Type P) |
| Mounting | Wall or pedestal |
| Dimensions (W × H × D) | 265×370×155 mm (Type P) / 249×370×155 mm (Type S) |
| Weight | 10.5 kg (Type P) / 7 kg (Type S) |
| Operating temperature | −30…50 °C; humidity 5–95% non-condensing; altitude < 2000 m |
| Standards | IEC 61851-1, IEC 62196-2; CE, UKCA; LVD, EMC, RED |
Compatibilities
Direct integration with SolaX inverters for surplus management, storage, and dynamic balancing. Compatible with domestic systems with CT/meter to limit power and prioritize critical loads.
The Solax X1-EVC7.2K 7.2kW Single-Phase Electric Vehicle Charger combines safety, intelligent control, and solar integration for efficient and reliable charging in any home.
