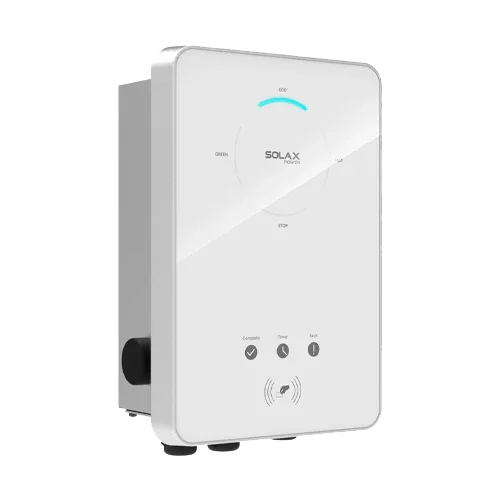

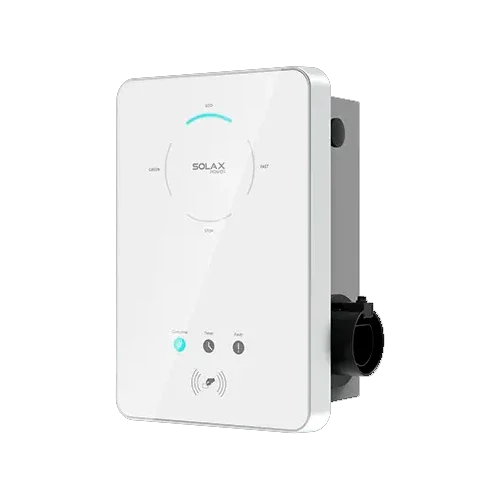

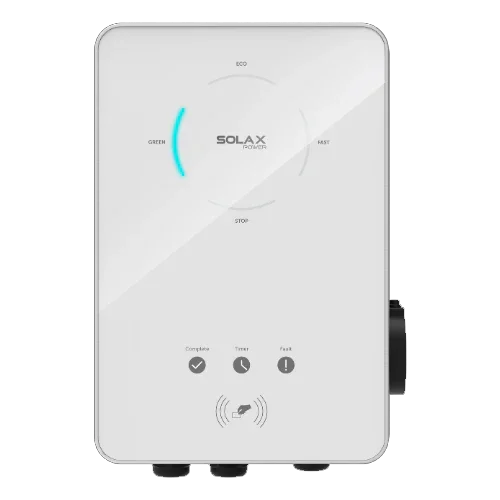

Solax X3-EVC11.0K 11kW Three-Phase Electric Vehicle Charger

Modelo: X3-EVC11.0K

Sku: SOLXCAR002
Vendor: Solax

€808,48 EUR

€646,78 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

The Solax X3-EVC11.0K 11kW three-phase EV Charger offers 230/400 V, 16 A per phase, IP65, WiFi/RFID and dynamic control. Integrates PEN protection and RCD 30 mA AC + 6 mA DC for safe charging connected to your photovoltaic system.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solax X3-EVC11.0K 11kW Three-Phase Electric Vehicle Charger is an intelligent 3-phase wallbox that stands out for its robustness, safety, and native integration with SolaX inverters. It can coordinate with the photovoltaic installation to prioritize surplus energy, balance household loads, and schedule charging times, all from the APP and web portal. Its IP65 enclosure ensures reliability outdoors, while the integrated PEN protection and RCD 30 mA AC + 6 mA DC provide a superior level of safety without the need for complex external components.

Main Features

Three-phase output: 11 kW (230/400 V, 16 A per phase).
Connectivity: WiFi 2.4 GHz (optional), RS485, and RFID for access control.
Solar management: communication with SolaX inverter for surplus charging and cost optimization.
Comprehensive safety: RCD 30 mA AC + 6 mA DC, multiple electronic protections, and TLS encryption.
Dynamic power control: CT clamps/meter for real-time load balancing and to prevent ICP tripping.
Flexible installation: socket (Type S) or cable (Type P) with hose and connector, wall or pedestal mounting.

Advantages or Benefits

Fast and stable charging on 3 phases with continuous 11 kW and dynamic adjustment according to household demand.
Maximum protection with internal RCD, PEN protection, and thermal monitoring for safe recharging.
Savings and sustainability: take advantage of your solar surplus and schedule off-peak hours from the APP.
Multi-user management with RFID cards and historical logging to monitor consumption.
Scalable and connectable: optional OCPP 1.6 (JSON) for integration with platforms and backends.

Purpose or Applications

Recommended for homes with three-phase supply, small communities, and businesses seeking a safe and efficient charger with photovoltaic integration and centralized control. The IP65 rating and IK08 resistance make it ideal for covered or sheltered outdoor parking.

Technical Specifications

Model	X3-EVC11.0K (three-phase)
Power / voltage / current	11 kW / 230/400 V / 16 A per phase
Connectivity	WiFi 2.4 GHz (optional), RS485; APP and web portal
Identification	Integrated RFID
Protocols	Optional OCPP 1.6 (JSON); TLS encrypted communications
Protections	RCD 30 mA AC + 6 mA DC; over/undervoltage, overtemperature, short circuit, grounding
PEN protection	Integrated (no ground rod required)
Rating / impact	IP65 / IK08
Charging method	Type P (hose with connector) or Type S (socket); approx. 6.5 m cable (Type P)
Mounting	Wall or pedestal
Dimensions (W × H × D)	265×370×155 mm (Type P) / 249×370×155 mm (Type S)
Weight	10.5 kg (Type P) / 7 kg (Type S)
Operating temperature	−30…50 °C; RH 5–95% non-condensing; altitude < 2000 m
Standards	IEC 61851-1, IEC 62196-2; CE, UKCA; LVD, EMC, RED

Compatibilities

Direct integration with SolaX inverters for surplus charging, battery coordination, and load balancing. Compatible with CT clamps/meter to limit power and protect the electrical installation.

The Solax X3-EVC11.0K 11kW Three-Phase Electric Vehicle Charger offers you safe, connected, and optimized charging with solar energy, ready for domestic or business use.
