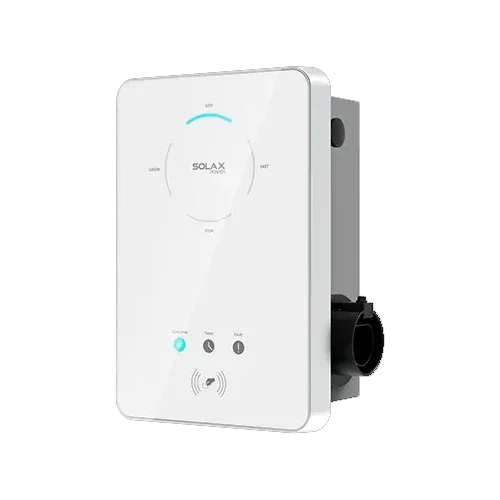

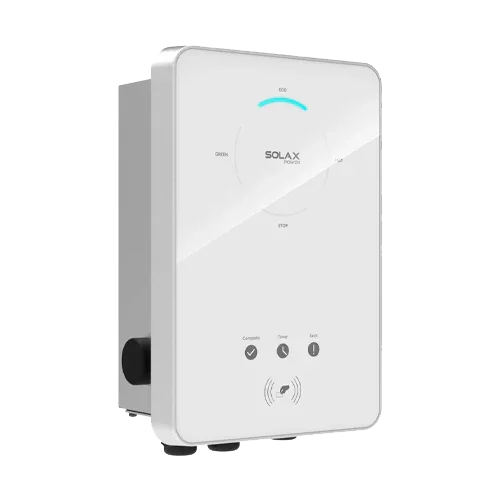

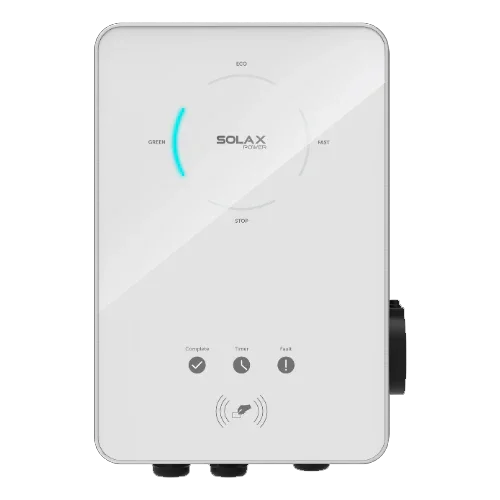

Electric Vehicle Charger Solax X3-EVC22.0K 22kW Three-phase
Modelo: X3-EVC22.0K- Sku: SOLXCAR003
- Vendor: Solax
Specifications
Product Description
The Solax X3-EVC22.0K 22kW Three-Phase Electric Vehicle Charger is SolaX's high-power wallbox for homes and businesses with a three-phase supply. It offers 22 kW continuous (400 V, 32 A per phase), native communication with your SolaX photovoltaic system, and dynamic power control to prevent ICP tripping. It features WiFi connectivity and RFID authentication, allowing you to decide who charges and at what power, as well as schedule off-peak charging and view history from the APP. Its IP65 enclosure allows for trouble-free outdoor operation, and the integrated PEN protection, together with the internal RCD 30 mA AC + 6 mA DC, simplifies installation while ensuring safe charging.
Main Features
- 22 kW three-phase: 400 V, 32 A per phase for fast charging on 3 phases.
- Solar integration: direct communication with SolaX inverters to charge with surplus energy.
- Connectivity: WiFi 2.4 GHz, RS485, and RFID for access control and multi-user management.
- Advanced safety: RCD 30 mA AC + 6 mA DC, over/undervoltage, overtemperature, short circuit.
- PEN protection without additional earth rod; encrypted TLS communications.
- Dynamic control: balancing with CT clamps/meter to adapt power in real time.
Advantages or Benefits
- Faster charging for vehicles with three-phase onboard chargers, reducing charging times compared to 7.4 or 11 kW.
- Direct savings: prioritizes photovoltaic surplus and schedules off-peak charging from the APP.
- Simplified installation: IP65, hose with connector (Type P version), and integrated PEN protection.
- Professional management: RFID for users, session logging, and cloud integration (OCPP 1.6 optional).
- Maximum safety: internal RCD with 6 mA DC detection, thermal monitoring, and comprehensive electronic protection.
Purpose or Applications
Ideal for homes with three-phase supply, private parking, coworking spaces, hotels, restaurants, and small fleets seeking fast, connected charging aligned with solar production. The IP65 and IK08 ratings allow for wall or pedestal mounting, both indoors and in sheltered outdoor locations.
Technical Specifications
| Model | X3-EVC22.0K (three-phase) |
| Power / voltage / current | 22 kW / 230/400 V / 32 A per phase |
| Charging method | Type P (cable with connector) or Type S (socket); hose approx. 6.5 m (Type P) |
| Connectivity | WiFi 2.4 GHz, RS485; APP and web portal |
| Identification | Integrated RFID (cards) |
| Protocols | OCPP 1.6 (JSON) optional; encrypted TLS communications |
| Protections | RCD 30 mA AC + 6 mA DC, overcurrent, over/undervoltage, overtemperature, short circuit |
| PEN protection | Integrated (no earth rod required) |
| Power management | Dynamic control with CT/meter for domestic load balancing |
| Protection / impact rating | IP65 / IK08 |
| Mounting | Wall or pedestal |
| Dimensions (W × H × D) | 265 × 370 × 155 mm (Type P) / 249 × 370 × 155 mm (Type S) |
| Weight | ≈10.5 kg (Type P) / ≈7 kg (Type S) |
| Environmental range | −30…50 °C; RH 5–95% non-condensing; altitude < 2000 m |
| Standards | IEC 61851-1, IEC 62196-2; CE, UKCA; LVD, EMC, RED |
Compatibilities
Direct integration with SolaX inverters to manage surplus, coordinate with the battery, and limit power via CT/meter. Suitable for most electric vehicles with Type 2 connector.
The Solax X3-EVC22.0K 22kW Three-Phase Electric Vehicle Charger is the professional solution for faster charging, maximizing your solar energy, and controlling every session with maximum safety.
