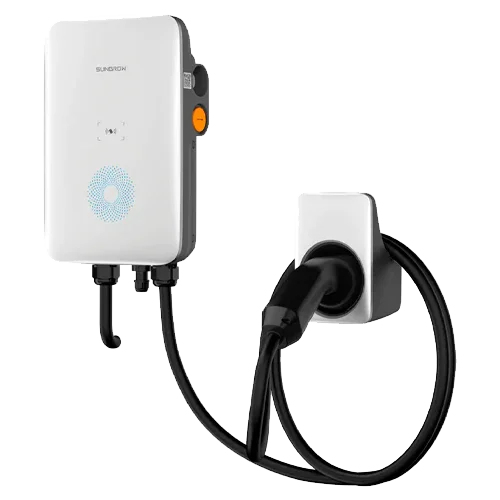

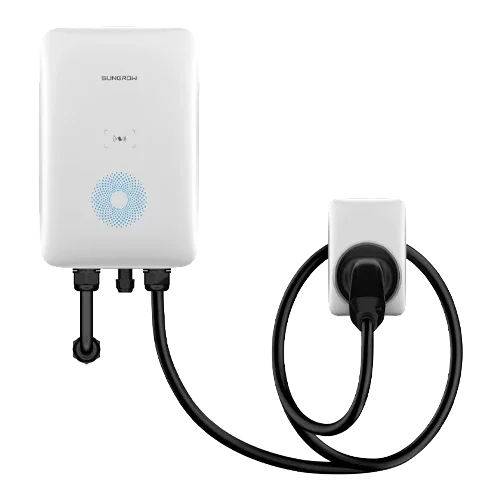

Sungrow Electric Vehicle Charger AC011E-01-L1 | 11 kW
Modelo: AC011E-01-L1- Sku: SUNGCAR001
- Vendor: Sungrow
Specifications
Product Description
The Sungrow AC011E-01-L1 11 kW Electric Vehicle Charger is a high-performance three-phase wallbox designed for homes and businesses seeking safe, fast, and connected charging. With IP65 protection for indoor or outdoor use, Type 2 connector, and OCPP 1.6J communication, it allows integration with management platforms, session control via RFID, and consumption monitoring from the iEnergyCharge app. It features DC 6 mA residual current detection, advanced electronic protections, and load management options via external meter through RS485 to prevent overloads in the installation.
Main Features
- Three-phase charging power 11 kW (400 Vac, 16 A per phase).
- IP65 protection rating and IK08 mechanical impact resistance for outdoor use.
- Connectivity: WiFi, RS485 (to external meter), and OCPP 1.6J protocol.
- Safety: DC 6 mA leakage detection, thermal protection, overvoltage/overcurrent protection.
- Flexible authentication: RFID and start/stop from the iEnergyCharge app.
- Integrated Type 2 cable, 7 m, wall mounting (optional pedestal support).
Advantages or Benefits
- Efficient and stable charging: 11 kW three-phase to reduce charging times compared to single-phase.
- Maximum safety thanks to DC 6 mA detection and integrated protections.
- Smart management: view consumption, schedule charging times, and control access with RFID.
- Prevents overloads with adaptive load management (requires meter via RS485).
- Quick installation: compact design, Type 2 connector, and official accessories.
Purpose or Applications
Suitable for three-phase residential garages, company parking lots, businesses, and small fleets requiring user control, remote monitoring, and compatibility with OCPP systems. Its IP65 construction makes it ideal for both indoor and outdoor use.
Technical Specifications
| Output power | 11 kW (three-phase) |
| Voltage / Frequency | 400 Vac ±20 % / 50–60 Hz |
| Max current | 16 A per phase |
| Connector | AC Type 2 (fixed cable 7 m) |
| Protections | DC 6 mA leakage, overload, overtemperature, overvoltage |
| Protection ratings | IP65 / IK08 |
| Communications | WiFi, RS485 (to meter), OCPP 1.6J |
| Authentication / Interface | RFID, LED/App iEnergyCharge |
| Load management | Adaptive with external meter (ALM) |
| Earthing systems | TT, TN |
| Operating temperature | −30…+50 °C · 5–95 % RH (non-condensing) |
| Max altitude | ≤ 2,000 m |
| Dimensions / Weight | 205 × 310 × 92 mm / 3.8 kg |
| Standby consumption | < 5 W |
| Installation | Wall (optional pedestal support) |
| Compliance | EN/IEC 61851-1, 61851-21-2 |
Compatibilities
Compatible with electric vehicles equipped with a Type 2 socket. Integration with the iEnergyCharge app for control and monitoring. Adaptive load management via external meter through RS485. Can connect to third-party platforms via OCPP 1.6J.
The Sungrow AC011E-01-L1 11 kW Electric Vehicle Charger combines safety, connectivity, and IP65 robustness to provide reliable, intelligent, and future-ready three-phase charging.
