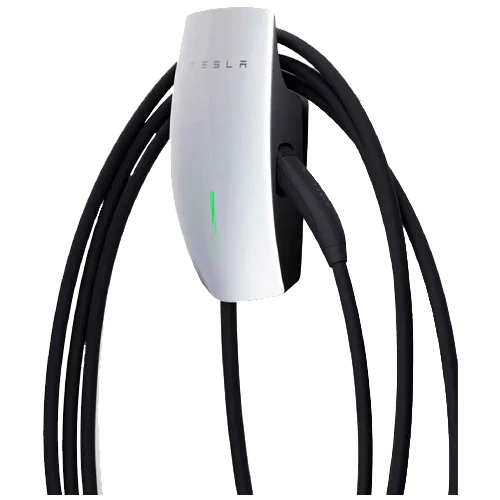

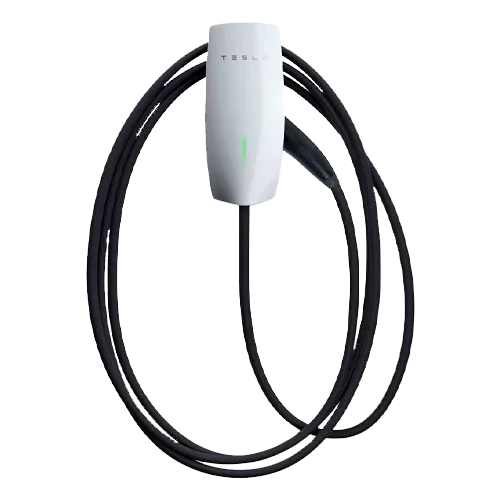

VE Charger Tesla Wall Connector GEN 3 7.3 m

Product Description

The VE Tesla Wall Connector GEN 3 7.3 m charger is the most convenient home charging solution for Tesla owners seeking maximum performance, reliability, and a clean installation. This AC wall charger supports up to 32 A, integrates Wi-Fi connectivity (2.4 GHz) for configuration and monitoring, and is certified for indoor and outdoor use (IP55). With a 7.3 m cable and compact design, the Wall Connector GEN 3 simplifies daily life: arrive home, connect your vehicle, and wake up with a fully charged battery. Its architecture is compatible with all Tesla models and with the single-phase 230 V and three-phase 230/400 V networks most common in European residential installations.

Main Features

• Maximum current adjustable by the installer: up to 32 A to adapt to available power and protect the installation.
• Wide electrical compatibility: 230 V single-phase (L-N), 230 V three-phase (L-L), and 400 V three-phase (L-L), 50/60 Hz.
• Wi-Fi 2.4 GHz connectivity (802.11 b/g/n) for commissioning and smart functions.
• Integrated protection with residual current detection Type A + 6 mA DC; indoor/outdoor use with IP55 rating.
• Included 7.3 m cable and cable management support for organized parking.
• Extended thermal range: operation from −30 °C to 50 °C, ideal for demanding climates.

Advantages or Benefits

• More range per hour: up to ~77 km/h (depending on vehicle and available power), perfect for overnight charging.
• Simple and clean installation: wall-mounted format, compact dimensions, and included cable support.
• Enhanced safety: integrated DC leakage detection (6 mA) and IEC 61851-1 compliance with CE certification.
• Efficiency and flexibility: current adjustment allows coexistence with other household loads without oversizing the supply line.
• Durability: sealed IP55 enclosure and robust design for outdoor use, rain, and dust.

Purpose or Applications

Designed for residential use and private parking in single-family homes or communities, the Tesla Wall Connector GEN 3 integrates into garages, carports, and covered outdoor areas, providing a reliable “home charger” for daily routines and trips. It is ideal for owners seeking a home charger Tesla with a long cable (7.3 m) and smart Wi-Fi management, as well as for installations with TN/TT/IT earthing systems.

Technical Specifications

Compatibilities

Compatible with all Tesla vehicles. Usual installation accessories and elements: upstream circuit breaker suitable for 32 A and wiring section according to REBT; base and support included for cable management. For projects with energy meter, surge protection, and IP65 weatherproof enclosures, it can be complemented with AC protections and suitable enclosures. If you have internal links, they will be included here as accessories and protections.

In summary, the VE Tesla Wall Connector GEN 3 7.3 m charger is a robust, intelligent, and outdoor-ready Tesla wallbox 32 A that makes home charging a fast, safe, and organized experience.
