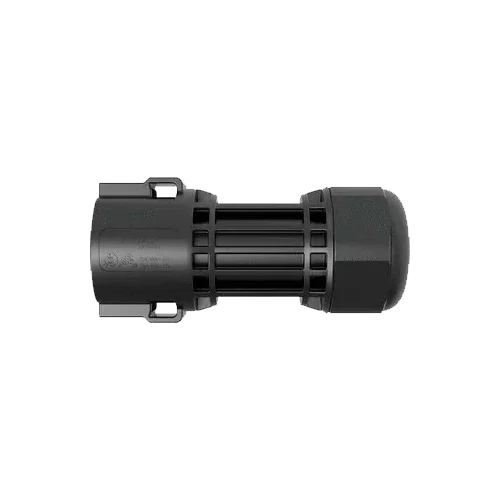

Solax AC Female Trunk Connector-F

Product description

The Solax AC Trunk Connector-F Female AC Connector is a key component of the SolaX modular wiring system, designed to interconnect AC cable sections in installations with A1-Micro and X1-Micro microinverters. Its IP68 waterproof design, high mechanical strength, and compatibility with conductors up to 6 mm² make it a professional solution for alternating current branches in distributed solar systems.

Main features

• IP68 waterproof female AC connector (2P + PE)
• Rated current: up to 40 A / Voltage: 400 V AC
• Maximum cable diameter: up to 13.5 mm
• Conductor cross-section: up to 6 mm² (10AWG)
• Reinforced plastic material, flame retardant (UL94-V0)
• Operating temperature: −40 °C to +85 °C

Advantages or benefits

• Allows watertight joining of AC Trunk Cable sections without special tools
• Ensures reliable connections even in demanding outdoor conditions
• Compatible with series or parallel configurations of microinverters
• Easy to assemble and disassemble with the official SolaX tool (optional)
• Prevents splices or non-certified domestic connections

Purpose or applications

This connector is used to join two sections of AC Trunk Cable or as part of the connection system between SolaX microinverters. It is ideal for daisy-chain or star configurations, allowing distributed AC branches with safety and regulatory compliance in all types of residential or commercial installations.

Technical specifications

Compatibilities

This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.

Solax AC Trunk Connector-F Female AC Connector offers a professional and secure connection for joining AC lines in installations with microinverters, maximizing durability, reliability, and ease of installation.
