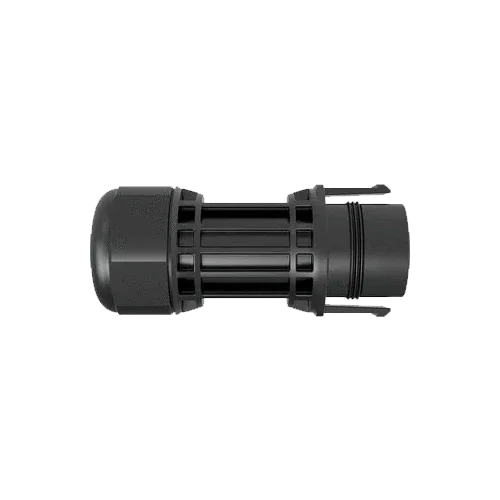

Solax AC Male Connector AC Trunk Connector-M

Product description

The Solax AC Trunk Connector-M Male AC Connector is a waterproof male-type connector, specifically designed for the SolaX AC Trunk modular wiring system. Compatible with A1-Micro and X1-Micro microinverters, it allows for safe, quick, and compliant connection, extension, or branching of alternating current lines. Its robust construction and IP68 protection make it a professional solution for residential or commercial solar installations.

Main features

• Connector type: Male (M), AC 2P + PE
• Nominal current: up to 40 A
• Nominal voltage: 400 V AC
• Compatible with conductors up to 6 mm² (10AWG)
• Max. cable diameter: 13.5 mm
• IP68 protection with proper closure
• Temperature range: −40 °C to +85 °C

Advantages or benefits

• Allows fast and reliable connections in systems with multiple microinverters
• Prevents complex splicing thanks to its plug & play design
• Ensures complete sealing even in demanding outdoor environments
• Enables system AC expansions or branches without crimping tools
• Certified according to international standards (IEC, UL, RoHS)

Purpose or applications

The AC Trunk Connector-M is used to connect sections of AC Trunk Cable, branch microinverters, or terminate AC lines in distributed solar installations. It is ideal for daisy-chain or branched configurations with SolaX microinverters, and can be used together with the female connector (Connector-F) and the AC End Cable to complete the installation.

Technical specifications

Compatibilities

This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.

Solax AC Trunk Connector-M Male AC Connector is the professional option for joining, extending, or branching AC connections in installations with SolaX microinverters, ensuring durability, watertightness, and ease of installation.
