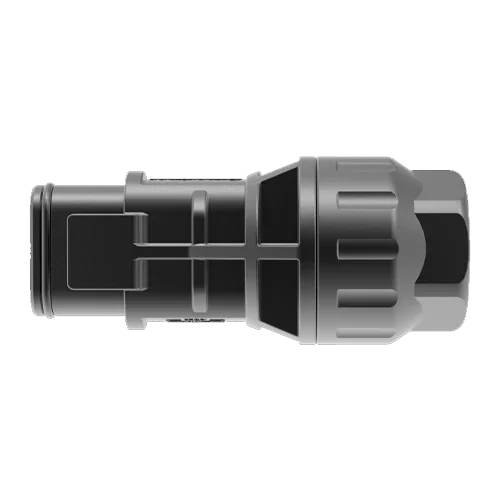

Solax Field Connector Field Connector

Product description

The Solax Field Connector is an essential accessory for solar installations with SolaX microinverters. Designed for systems with one or multiple microinverters, this AC connector enables a watertight, safe, and quick connection with IP68 protection, without the need for complex tools. It is part of the SolaX Plug & Play system, facilitating efficient installation and complying with electrical regulations in the field.

Main features

• 2P + PE watertight AC connector
• Rated voltage: 300 V / Current: 12 A
• Compatible with 1.0, 1.5, and 2.5 mm² cables
• Screw pressing installation
• IP68 protection and UL94-V0 fire resistance
• Operating temperature: −40 °C to +85 °C

Advantages or benefits

• Allows quick and error-free field connections
• Ensures complete watertightness in demanding outdoor environments
• Reduces installation time by up to 70 %
• Compatible with the complete SolaX AC Plug and Play wiring system
• Prevents the use of non-certified domestic connectors for solar installations

Purpose or applications

The SolaX Field Connector is designed for residential or commercial solar installations with microinverters, whether in single or multi-microinverter systems. It is used to safely connect the microinverter to the power grid, complying with local regulations. Ideal for outdoor installations where protection against water and dust is essential.

Technical specifications

Compatibilities

This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.

Solax Field Connector offers a professional, watertight, and secure solution for integrating your SolaX microinverters in the field, ensuring efficiency, durability, and regulatory compliance.
