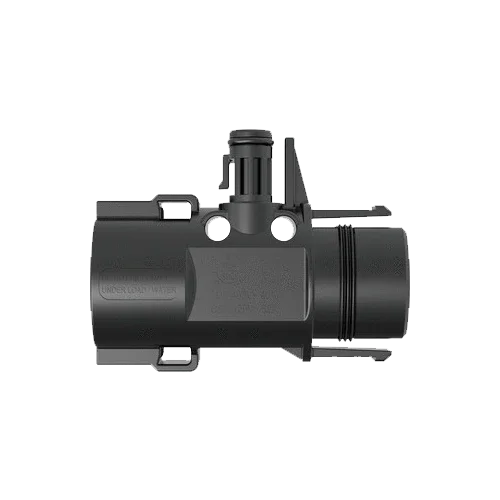

Solax AC Trunk T Connector AC T Connector

Product description

The Solax AC Trunk T Connector is an essential accessory for flexibly expanding and structuring installations with SolaX microinverters. Its T-shaped design allows you to branch or split the main AC wiring without the need for splices, maintaining watertightness and electrical safety. Compatible with A1-Micro and X1-Micro systems, it facilitates the connection of multiple microinverters in parallel.

Main features

• T-shaped connector with 3 AC outputs (2P + PE)
• Nominal current: up to 40 A
• Nominal voltage: 400 V AC
• Protection rating: IP68 (when properly connected)
• Supported conductor section: up to 6 mm² (10AWG)
• Material: UL94-V0 polymer resistant to heat and UV rays
• Operating temperature: −40 °C to +85 °C

Advantages or benefits

• Allows branch configurations with multiple microinverters
• Facilitates system expansion without modifying the original wiring
• Safe and quick connection without crimping tools
• Certified for outdoor use and demanding conditions
• Reduces installation time and improves system organization

Purpose or applications

This connector is designed for solar systems with multiple distributed microinverters, where it is necessary to make branches from the main AC line. Ideal for parallel configurations or where groups of separate microinverters are connected, such as on split roofs or structures with multiple rows of panels.

Technical specifications

Compatibilities

This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.

Solax AC Trunk T Connector offers the perfect solution for splitting or extending AC lines in systems with multiple microinverters. A key component for modular, fast, and safe installations, ready to expand without complications.
