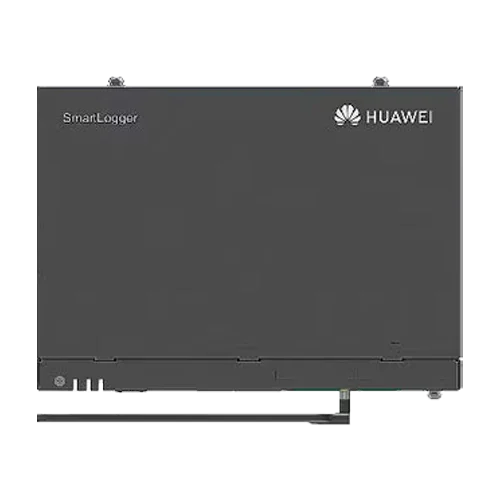

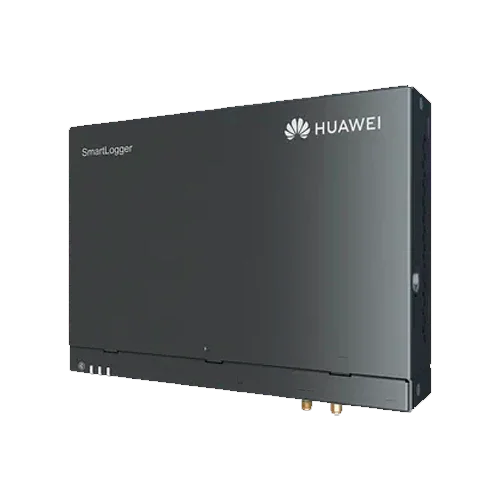

Huawei Smart Logger 3000A01EU Recorder with Ethernet and 4G
Modelo: Smart Logger 3000A01EU- Sku: HUAWACC014
- Vendor: Huawei
Specifications
Product Description
The Huawei Smart Logger 3000A01EU with Ethernet and 4G is an advanced data logger for photovoltaic solar installations with Huawei inverters. Designed for residential, commercial, or industrial environments, this logger enables management, monitoring, and centralized control of up to 80 devices, including inverters, energy sensors, optimizers, and batteries. With integrated Ethernet and 4G connectivity, it is suitable for projects requiring remote access and advanced functions such as export limitation to the grid (0-export).
Main Features
- Controls up to 80 Huawei devices (inverters, sensors, optimizers, batteries)
- Ethernet and 4G connectivity for remote access and commissioning
- 3 RS485 ports + 1 MBUS port for multiple communication
- Digital and analog inputs/outputs for integration of external sensors
- Embedded web interface for local configuration and monitoring
- Compatible with FusionSolar and the Huawei SUN2000 app
Advantages or Benefits
- Enables centralized and professional monitoring in installations with multiple inverters
- Facilitates dynamic real-time zero export control
- Avoids the use of long network cables thanks to 4G connectivity
- Ideal for industrial or commercial installations that require data tracking and alarms
- Compatible with main Huawei optimizers via MBUS
Purpose or Applications
The Smart Logger 3000A01EU is especially suitable for medium or large solar installations where centralized control of multiple Huawei inverters, precise measurement of consumption and generation, management of LUNA2000 batteries, communication with optimizers by module, and compliance with zero export regulations are required. Its compact and flexible design makes it ideal for both demanding residential projects and industrial or agricultural installations.
Technical Specifications
| Model | SmartLogger 3000A01EU |
| Compatible devices | Up to 80 (inverters, sensors, optimizers, batteries) |
| RS485 ports | 3 (up to 1,000 m, 1,200–115,200 bps) |
| MBUS port | 1 (for optimizers) |
| Ethernet interface | WAN + LAN RJ45 10/100/1000 Mbps |
| 4G connectivity | LTE-FDD: B1/2/3/4/5/7/8/20 |
| Digital inputs | 4 (DI) |
| Digital outputs | 2 (active DO 12 V / 100 mA) |
| Analog inputs | 4 (AI) |
| USB port | USB 2.0 (data or update) |
| Display | No (LEDs RUN, ALM, 4G) |
| Local web | Yes, access via IP |
| Compatible APP | Huawei SUN2000 (via WLAN) |
| Power supply | 100–240 V AC / 12–24 V DC |
| Consumption | 8 W typical / 15 W maximum |
| Dimensions | 225 × 160 × 44 mm |
| Weight | 2 kg |
| Degree of protection | IP20 (indoor) |
| Mounting | Wall, DIN rail or desktop |
| Operating temperature | -40 °C to +60 °C |
| Humidity | 5–95 % RH non-condensing |
| Maximum altitude | 4,000 m |
Compatibilities
This product is compatible with:
- Huawei SUN2000 inverters: L1, LB0, LC0 series (single-phase) and M1, M2, M3, M5, MB0, MAP0, MG0 (three-phase)
- Huawei sensors DDSU666-H, DTSU666-H and DTSU666-HW
- Huawei module-level optimization: SUN2000-450W-P2, SUN2000-600W-P
- Huawei LUNA2000 batteries with LB0 / LC0 controllers
- Huawei FusionSolar monitoring platform
Huawei Smart Logger 3000A01EU is an essential tool for solar installations that require precise control, reliable remote access, and professional monitoring with Huawei inverters.
