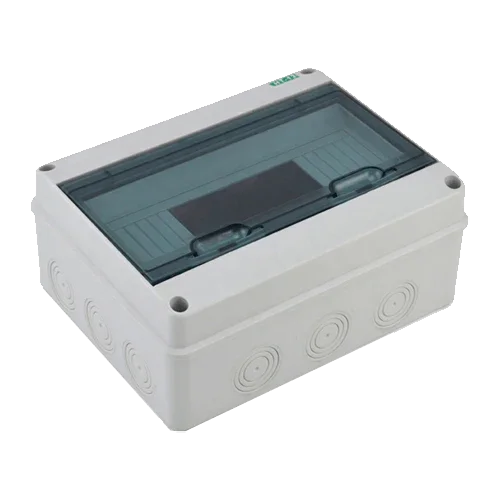

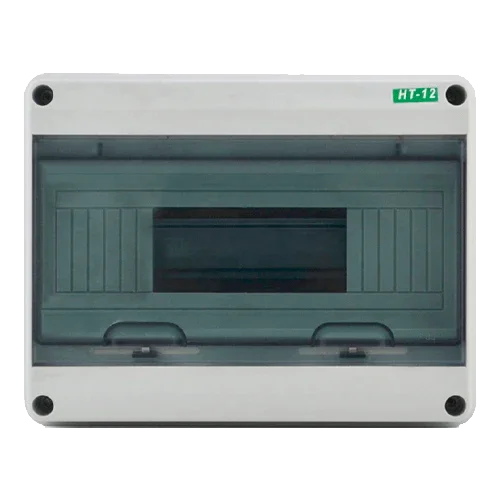

IP65 Watertight Enclosure HT-12WAYS 12 Modules 1 Row
Modelo: HT-12WAYS- Sku: WORLACC005
- Vendor: WorldSunLight
Specifications
Product Description
The IP65 Watertight Enclosure HT-12WAYS 12 Modules 1 Row is a compact distribution box designed to house up to 12 DIN modules in a single row, with IP65 watertightness and a transparent cover. Its high-strength ABS design with a polycarbonate (PC) cover ensures durability against impacts, UV rays, and environments with dust or splashes, making it a highly reliable solution for solar self-consumption protections, residential panels, tertiary or light industrial applications.
Main Features
- IP65: protection against dust and water jets, suitable for outdoor or humid environments.

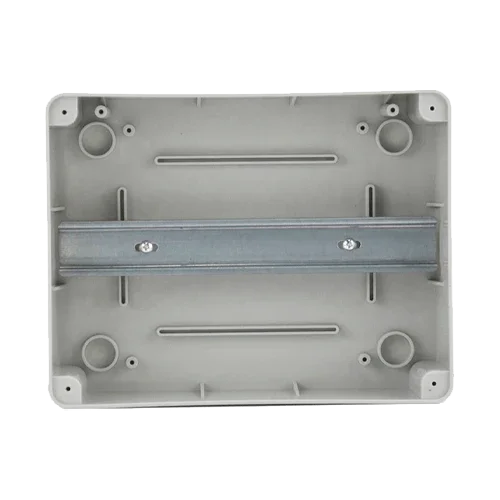

- 12 DIN modules in 1 row, with rail and back plate for organized wiring.

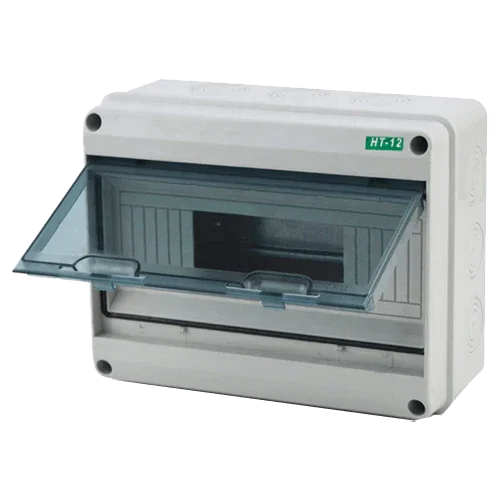

- Transparent cover and “push” closure with self-positioning hinge for quick and secure opening.
- Materials: ABS body of high rigidity and PC cover of great clarity and impact resistance.
- Cable glands and guides that facilitate the entry of tubes/channels, speeding up installation.
- Lightweight format (≈0.84 kg) with dimensions optimized for confined spaces.
Advantages or Benefits
- Clean and quick installation: the push-button closure reduces intervention times.
- Immediate visibility of the status of circuit breakers, residual current devices, or SPD thanks to the transparent cover.
- Longer service life outdoors due to its technical plastic materials and IP65 rating.
- Safety and order in wiring thanks to its DIN rail and support plate.
- Versatile for solar projects (DC/AC), residential use, and small automation systems.
Purpose or Applications
Ideal as a photovoltaic protection panel (DC or AC) for small rooftop installations, as a secondary residential panel, or for lighting/communication lines in commercial premises. Also suitable for pumps, treatment plants, garages, storage rooms, and outdoor areas where watertightness is essential.
Technical Specifications
| Model | HT-12WAYS |
| Capacity | 12 DIN modules (1 row) |
| Protection rating | IP65 |
| Body material | ABS (high resistance) |
| Cover material | Transparent polycarbonate (PC) |
| Closure type | Push with self-positioning hinge |
| Dimensions (L×W×H) | ≈ 250 × 195 × 110 mm |
| Weight | ≈ 0.84 kg |
| Mounting | DIN rail and wiring support plate |
| Recommended use | Outdoor/indoor, residential, commercial, and light industrial |
Compatibilities
Housing for DIN circuit breakers, residual current devices (incl. type A), type II AC/DC surge protectors, disconnectors, fuses, contactors, busbar combs, terminals, cable glands, and grommets for tube/duct. Protections and accessories are not included.
The IP65 Watertight Enclosure HT-12WAYS 12 Modules 1 Row combines compactness, watertightness, and fast installation to concentrate protections with a professional appearance and outstanding resistance in any project.
