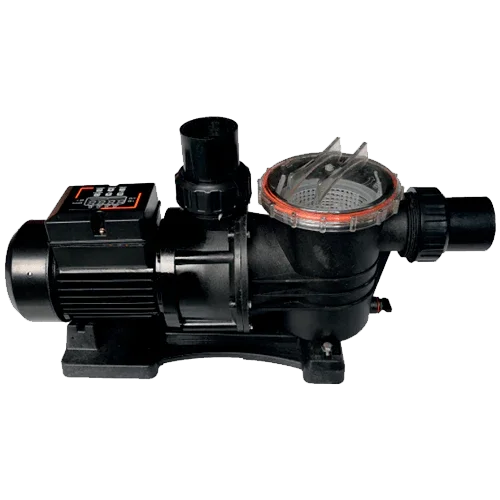

ZIRI FCP1100S Solar Water Treatment Plant 1600W 22m 29.3m³/h
Modelo: FCP1100S- Sku: ZIRIDEP001
- Vendor: ZIRI Solar
Specifications
Product Description
The ZIRI FCP1100S Solar Pool Filter is a self-priming direct current pump with an oversized pre-filter, designed for solar filtration of large-volume swimming pools and water tanks. With 1600 W of electrical power, it achieves a flow rate of 29.3 m³/h and a head of 22 m, supporting long recirculation cycles with low operating cost. Its internal MPPT controller optimizes photovoltaic capture and simplifies installation by eliminating the need for external equipment, ensuring safe starts and stable performance within its electrical window.
Main Features
- Performance: maximum flow rate of 29.3 m³/h and head up to 22 m for large pools.
- Electrical window: 100–250 VDC with high-efficiency integrated MPPT controller.
- Self-priming hydraulic group with XL pre-filter and transparent polycarbonate lid for quick inspection.
- Materials: body, lid, base, and diffuser in glass fiber reinforced polypropylene; impeller in copper alloy.
- Suction and discharge ports of 2 ½” to minimize pressure losses at high flow rates.
- Designed for continuous operation with clean water and standard pool chemicals.
Advantages or Benefits
- Powerful filtration with solar energy: drastically reduces the pool's electricity cost.
- Simple and reliable installation thanks to the internal MPPT that stabilizes the PV generator's operation.
- Large-capacity pre-filter that retains leaves and solids, extending the life of the filtration system.
- Chemical- and UV-resistant components for long durability in outdoor environments.
- High recirculation efficiency that improves water clarity and bathing quality.
Purpose or Applications
Filtration and recirculation in large residential or collective-use pools, tanks, and reservoirs with sand or cartridge filter systems, high-flow transfers, and auxiliary recirculation in water treatment installations powered by photovoltaics.
Technical Specifications
| Model | ZIRI FCP1100S |
| Type | Self-priming DC filter with internal MPPT and XL pre-filter |
| Electrical power | 1600 W |
| Voltage range | 100–250 VDC |
| Maximum flow rate | 29.3 m³/h |
| Maximum head | 22 m |
| Connections | 2 ½” (suction/discharge) |
| Materials | PP with glass fiber; polycarbonate lid; impeller in copper alloy |
| Filtration | Large pre-filter with removable basket |
| PV sizing | Select the panel power at least as required and keep the working voltage within 100–250 VDC |
| Fluid | Treated clean water (compatible with pool chemicals) |
Compatibilities
Compatible with sand or cartridge filtration systems, selector valves, and 2 ½” manifolds. Accessories: check valves, pressure gauges, fittings and unions, DC protection cabinet (circuit breaker and SPD), level/flow switch, and PVC pressure piping.
The ZIRI FCP1100S Solar Pool Filter combines high flow, efficiency, and quality materials to keep your pool crystal clear with solar energy and maximum reliability.
