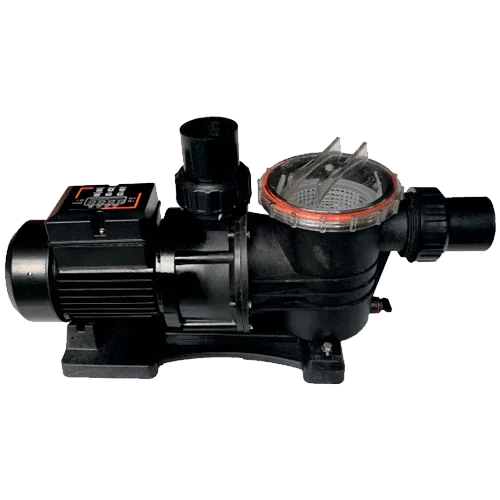

ZIRI FCP1500S Solar Purifier 2200W 27m 36.4m³/h
Modelo: FCP1500S- Sku: ZIRIDEP002
- Vendor: ZIRI Solar
Specifications
Product Description
The ZIRI FCP1500S Solar Pool Filter is the highest performance solution in the FCP range for installations requiring very high flow rates with photovoltaic energy. Its 2200 W DC motor, managed by an internal MPPT, delivers up to 36.4 m³/h and 27 m head, providing fast and efficient filtration cycles in collective pools, hotels, communities, or large-capacity tanks. The self-priming hydraulic assembly incorporates a large-volume pre-filter with a transparent lid that facilitates visual inspection and reduces maintenance frequency.
Main Features
- Maximum performance: 36.4 m³/h flow rate and 27 m head for large-volume pools.
- Wide electrical window: 60–440 VDC with integrated MPPT for optimal photovoltaic utilization.
- XL pre-filter with polycarbonate lid and removable basket for coarse solids retention.
- Housing and components made of glass fiber reinforced polypropylene, resistant to chemicals and UV.
- Impeller made of copper alloy; self-priming design for professional filtration installations.
- 2 ½” hydraulic connections minimize pressure losses at high flow rates.
Advantages or Benefits
- Very fast filtration with solar energy, reducing operating hours and grid consumption.
- Simplified installation: the internal MPPT manages the PV generator and stabilizes performance under clouds and temperature changes.
- Lower maintenance due to the large capacity pre-filter and the chemical resistance of its materials.
- Higher water quality and bathing comfort thanks to constant and powerful recirculation.
- Robustness and reliability in continuous operation for intensive residential or semi-professional use.
Purpose or Applications
Filtration of large collective and private pools, tanks, and reservoirs with filtration, treatment recirculation, and high-flow transfers. Ideal for solar self-consumption installations seeking maximum efficiency and minimal operating costs.
Technical Specifications
| Model | ZIRI FCP1500S |
| Type | Self-priming DC filter with internal MPPT and XL pre-filter |
| Electrical power | 2200 W |
| Voltage range | 60–440 VDC |
| Maximum flow rate | 36.4 m³/h |
| Maximum head | 27 m |
| Connections | 2 ½” (suction/discharge) |
| Materials | PP with glass fiber; polycarbonate lid; copper alloy impeller |
| Filtration | Large capacity pre-filter with accessible basket |
| PV sizing | Select panel power at least as required and keep the operating voltage within 60–440 VDC |
| Fluid | Treated clean water (compatible with pool chemicals) |
Compatibilities
Compatible with high-flow sand or cartridge filters, 2 ½” multiport valves, collectors and manifolds for recirculation. Accessories: check valve, pressure gauge, unions and fittings, DC protection cabinet (circuit breaker and SPD), level/flow switch, and pressure PVC piping.
The ZIRI FCP1500S Solar Pool Filter offers the highest performance in the range: outstanding flow rate, durable materials, and the efficiency of integrated MPPT to keep your pool spotless with solar energy.
