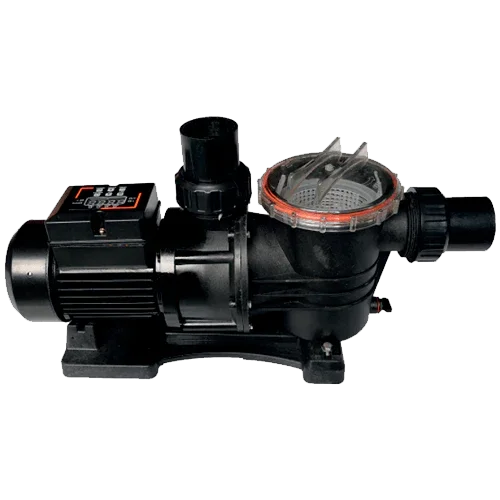

ZIRI FCP750 Solar Water Treatment Plant 1200W 24m 20.8m³/h
Modelo: FCP750- Sku: ZIRIDEP004
- Vendor: ZIRI Solar
Specifications
Product Description
The ZIRI FCP750 Solar Pool Filter is a self-priming direct current pump with a high-capacity prefilter, designed for family pools and medium-high demand filtration systems. Its 1200 W DC motor, managed by an internal MPPT, provides a flow rate of 20.8 m³/h and up to 24 m head, ensuring fast and stable recirculation with photovoltaic energy and very simple installation.
Main Features
- Balanced performance: 20.8 m³/h flow rate and 24 m head, perfect for demanding residential pools.
- Electrical operating window: 80–150 VDC with integrated MPPT for optimal performance.
- Self-priming assembly with XL prefilter and transparent lid for easy inspection and cleaning.
- Materials with high chemical and UV resistance: body, lid, base, and diffuser in polypropylene with fiberglass.
- Impeller in copper alloy for greater reliability and long service life.
- 2” hydraulic connections to minimize pressure loss at high flow rates.
Advantages or Benefits
- Powerful filtration with solar energy, reducing grid consumption and operating costs.
- Simplified installation thanks to the internal MPPT: fewer external components and safe startups.
- Large-volume prefilter that retains leaves and solids, protecting the main filter and hydraulics.
- Robust materials compatible with standard pool chemicals.
- Low maintenance and quiet operation for continuous daily use.
Purpose or Applications
Filtration and recirculation in medium/large residential pools, tanks with sand or cartridge filters, and auxiliary water treatment recirculation powered by photovoltaics.
Technical Specifications
| Model | ZIRI FCP750 |
| Type | Self-priming DC filter with internal MPPT |
| Electrical power | 1200 W |
| Voltage range | 80–150 VDC |
| Maximum flow rate | 20.8 m³/h |
| Maximum head | 24 m |
| Connections | 2” (suction/discharge) |
| Materials | PP with fiberglass; polycarbonate lid; impeller in copper alloy |
| Filtration | XL prefilter with removable basket |
| PV sizing | Select the minimum required power and keep the operating voltage within 80–150 VDC |
| Fluid | Treated clean water |
Compatibilities
Integrates with sand or cartridge filters, selector valves, and 2” manifolds. Accessories: check valve, pressure gauge, unions/fittings, DC protection cabinet (circuit breaker and SPD), level/flow switch, and PVC pressure pipe.
The ZIRI FCP750 Solar Pool Filter combines power, efficiency, and durable materials to keep your pool crystal clear with solar energy and minimal operating cost.
