ZIRI XKP15-14-48-500 Solar Water Treatment Plant 500W 14m 15m³/h
Modelo: XKP15-14-48-500- Sku: ZIRIDEP005
- Vendor: ZIRI Solar
Specifications
Product Description

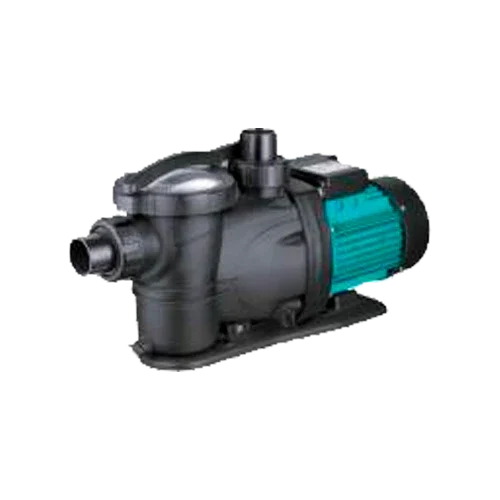

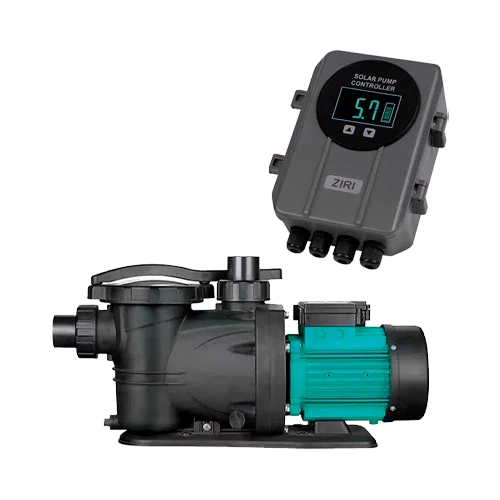

The ZIRI XKP15-14-48-500 Solar Pool Pump is a direct current pool pump with an integrated MPPT controller that prioritizes photovoltaic energy to provide stable and efficient filtration. With 500 W of power, it delivers a flow rate of 15 m³/h and a head of 14 m, parameters ideal for residential pools requiring reliable recirculation and low operating costs. Its brushless permanent magnet synchronous motor reduces losses, extends service life, and ensures smooth startup even with variable irradiance.
Main Features
- Balanced hydraulic performance: 15 m³/h flow rate and 14 m head.
- Optimal electrical window: 60–90 VDC on a nominal 48 V system; Maximum Voc < 100 V.
- Integrated MPPT, soft start, and automatic frequency conversion to extract the maximum from PV.
- High-efficiency brushless synchronous motor for continuous and silent operation.
- IP55 protection and thermal range -15 °C…+60 °C for demanding outdoor environments.
- 2” hydraulic connections for suction and discharge, reducing pressure losses.
Advantages or Benefits
- Energy savings by operating primarily with solar energy without sacrificing filtration quality.
- Simplified installation: integrated electronics with LED display showing parameters and error codes.
- Progressive startup that protects the hydraulics and extends the life of the filtration system.
- Reliable operation in cold or hot climates thanks to IP55 and wide thermal range.
- Ideal for automating daily filtration cycles with low maintenance.
Purpose or Applications
Filtration systems in small/medium domestic pools, spas, and tanks with sand or cartridge filters. Suitable for self-consumption installations where the goal is to operate mainly with photovoltaics and maintain a stable flow during sunlight hours.
Technical Specifications
| Model | ZIRI XKP15-14-48-500 |
| Electrical power | 500 W |
| Nominal voltage | 48 V |
| Optimal input window | 60–90 VDC |
| Maximum allowed Voc | < 100 V |
| Maximum flow rate | 15 m³/h |
| Maximum head | 14 m |
| Hydraulic connections | 2” (suction/discharge) |
| Motor | Brushless permanent magnet synchronous |
| Control | Integrated MPPT, soft start, automatic frequency conversion, LED display |
| Protection | IP55 |
| Ambient temperature | -15 °C…+60 °C |
| PV sizing | Select at least the necessary panel power and maintain the operating voltage at 60–90 VDC without exceeding Voc < 100 V |
Compatibilities
Systems with sand or cartridge filters, selector valves, and 2” manifolds. Accessories: check valve, pressure gauge, PVC pressure unions/fittings, DC protection cabinet (circuit breaker and SPD), and flow/level sensors.
The ZIRI XKP15-14-48-500 Solar Pool Pump provides efficiency, reliability, and simplicity to keep water crystal clear using solar energy at minimal cost.
